Suzuki DF 4 Parts Listings - 2004
S/N 00401F-421001 to 00401F-42XXXX

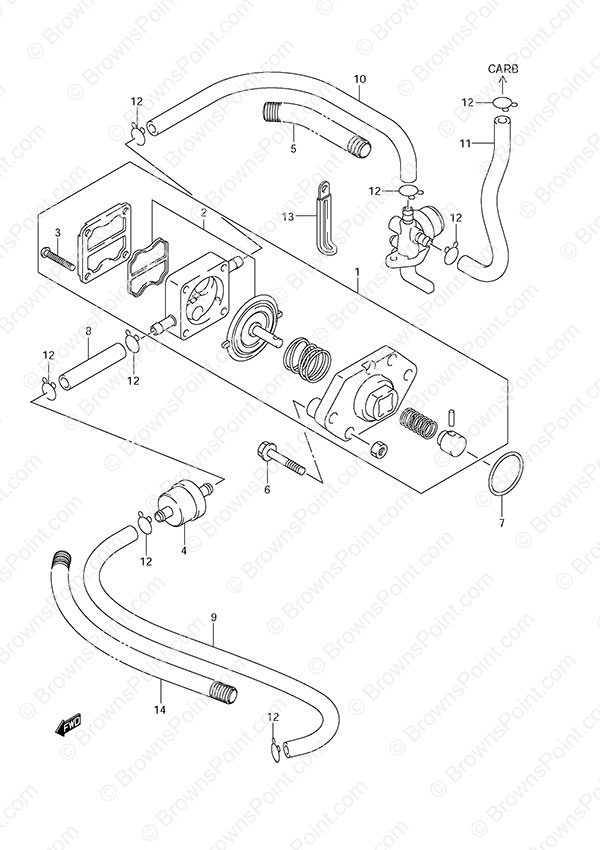

Fig. 9 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-91J03 Fuel Pump Assembly
SKU: 15100-91J03 Weight: 0.380000 Brand: Price: $ 153.68 |
Fuel Pump Assembly | 1 | $ 153.68 | ||
| 2 | 15170-91J02 Fuel Pump Diaphragm Set
SKU: 15170-91J02 Weight: 0.060000 Brand: Price: $ 26.99 |
Fuel Pump Diaphragm Set | 1 | $ 26.99 | ||
| 3 | 15251-91J00 Screw
SKU: 15251-91J00 Weight: 0.060000 Brand: Price: $ 3.00 |
Screw | 4 | $ 3.00 | ||
| 4 | 15410-98500 Fuel Filter
SKU: 15410-98500 Weight: 0.060000 Brand: Price: $ 10.74 |
Fuel Filter | 1 | $ 10.74 | ||
| 5 | 33834-93E00 Protector (NLA)
SKU: 33834-93E00 Weight: 0.100000 Brand: Price: $ 2.23 |
Protector (NLA) | 1 | $ 2.23 | ||
| 6 | 09103-06182 Bolt (6x28)
SKU: 09103-06182 Weight: 0.060000 Brand: Price: $ 2.43 |
Bolt (6x28) | 2 | $ 2.43 | ||
| 7 | 09280-27006 O-Ring
SKU: 09280-27006 Weight: 0.060000 Brand: Price: $ 3.19 |
O-Ring | 1 | $ 3.19 | ||
| 8 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Filter to Pump L:600->45 | |
| 9 | 15191-91J00 Fuel Hose (NLA)
SKU: 15191-91J00 Weight: 0.100000 Brand: Price: $ 5.78 |
Fuel Hose (NLA) | 1 | $ 5.78 | Tank to Filter | |
| 10 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Pump to Cock L:600->350 | |
| 11 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Cock to Carb L:600->190 | |
| 12 | 09401-08410 Clip
SKU: 09401-08410 Weight: 0.060000 Brand: Price: $ 1.86 |
Clip | 8 | $ 1.86 | ||
| 14 | 33834-91J00 Protector (NLA)
SKU: 33834-91J00 Weight: 0.100000 Brand: Price: $ 2.27 |
Protector (NLA) | 1 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
