Suzuki DF 4 Parts Listings - 2003
S/N 00401F-371001 to 00401F-37XXXX

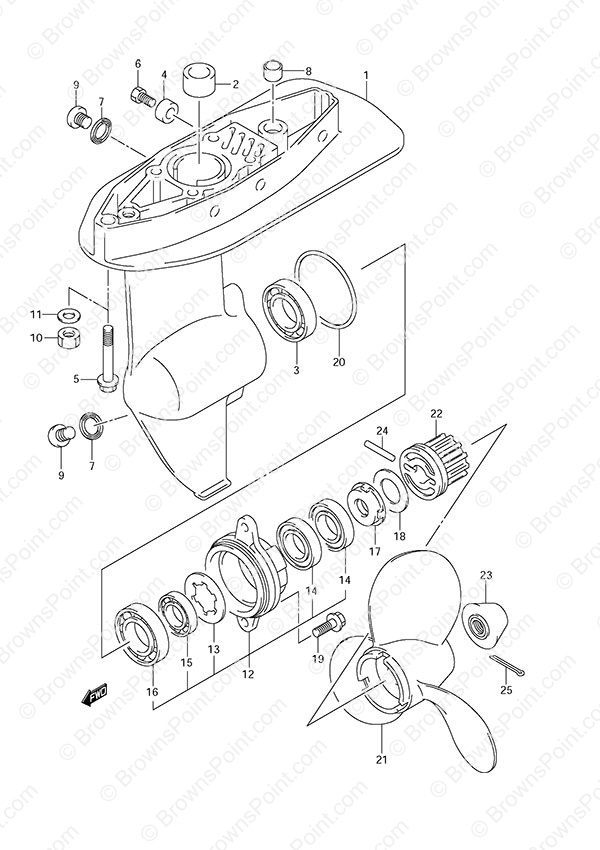

Fig. 23 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-91J30-0EP Gear Case Housing
SKU: 55100-91J30-0EP Weight: 10.000000 Brand: Price: $ 309.76 |
Gear Case Housing | 1 | $ 309.76 | ||
| 2 | 59311-91J00 Pinion Bushing
SKU: 59311-91J00 Weight: 0.200000 Brand: Price: $ 28.55 |
Pinion Bushing | 1 | $ 28.55 | ||
| 3 | 09262-20106 Bearing (20x42x12)
SKU: 09262-20106 Weight: 0.160000 Brand: Price: $ 25.39 |
Bearing (20x42x12) | 1 | $ 25.39 | ||
| 4 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 5 | 09116-08156 Bolt (8x50)
SKU: 09116-08156 Weight: 0.060000 Brand: Price: $ 4.71 |
Bolt (8x50) | 2 | $ 4.71 | w/Transom (S) | |
| 6 | 09128-06021 Bolt (6x14)
SKU: 09128-06021 Weight: 0.060000 Brand: Price: $ 1.91 |
Bolt (6x14) | 1 | $ 1.91 | ||
| 7 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 2 | $ 1.60 | ||
| 8 | 09206-11006 Pin (8.4x11x8) (NLA)
SKU: 09206-11006 Weight: 0.060000 Brand: Price: $ 2.73 |
Pin (8.4x11x8) (NLA) | 1 | $ 2.73 | ||
| 9 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 2 | $ 6.59 | ||
| 10 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | w/Transom (L) | |
| 11 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | w/Transom (L) | |
| 12 | 56120-91JM0-0EP Propeller Shaft Bearing Housing
SKU: 56120-91JM0-0EP Weight: 1.000000 Brand: Price: $ 135.37 |
Propeller Shaft Bearing Housing | 1 | $ 135.37 | ||
| 13 | 09167-23001 Washer
SKU: 09167-23001 Weight: 0.060000 Brand: Price: $ 2.93 |
Washer | 1 | $ 2.93 | ||
| 14 | 09282-12008 Oil Seal (12x24x4.5)
SKU: 09282-12008 Weight: 0.060000 Brand: Price: $ 6.27 |
Oil Seal (12x24x4.5) | 2 | $ 6.27 | ||
| 15 | 09262-12001 Bearing (12x28x8)
SKU: 09262-12001 Weight: 0.250000 Brand: Price: $ 18.80 |
Bearing (12x28x8) | 1 | $ 18.80 | ||
| 16 | 09262-20106 Bearing (20x42x12)
SKU: 09262-20106 Weight: 0.160000 Brand: Price: $ 25.39 |
Bearing (20x42x12) | 1 | $ 25.39 | ||
| 17 | 56122-98602 Oil Seal Protector
SKU: 56122-98602 Weight: 0.060000 Brand: Price: $ 4.47 |
Oil Seal Protector | 1 | $ 4.47 | ||
| 18 | 56123-98600 Protector Washer
SKU: 56123-98600 Weight: 0.060000 Brand: Price: $ 4.76 |
Protector Washer | 1 | $ 4.76 | ||
| 19 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 20 | 09280-49002 O-Ring
SKU: 09280-49002 Weight: 0.060000 Brand: Price: $ 1.92 |
O-Ring | 1 | $ 1.92 | ||
| 21-1 | 58111-98602-019 C600 Propeller (3x7-1/2x6)
SKU: 58111-98602-019 Weight: 1.500000 Brand: Price: $ 109.28 |
C600 Propeller (3x7-1/2x6) | 1 | $ 109.28 | 3x7-1/2x6 | |
| 21-2 | 58111-98641-019 C610 Propeller (3x7-1/2x6-1/2)
SKU: 58111-98641-019 Weight: 1.500000 Brand: Price: $ 109.28 |
C610 Propeller (3x7-1/2x6-1/2) | 1 | $ 109.28 | 3x7-1/2x6-1/2 | |
| 21-3 | 58111-98651-019 C710 Propeller (3x7-1/2x7)
SKU: 58111-98651-019 Weight: 1.500000 Brand: Price: $ 109.28 |
C710 Propeller (3x7-1/2x7) | 1 | $ 109.28 | 3x7-1/2x7 | |
| 22 | 58120-98600 Type C Propeller Bushing
SKU: 58120-98600 Weight: 0.260000 Brand: Price: $ 47.83 |
Type C Propeller Bushing | 1 | $ 47.83 | ||
| 23 | 58130-91JL0 Propeller Nut
SKU: 58130-91JL0 Weight: 0.125000 Brand: Price: $ 37.86 |
Propeller Nut | 1 | $ 37.86 | ||
| 24 | 09202-04002 Shear Pin
SKU: 09202-04002 Weight: 0.060000 Brand: Price: $ 2.12 |
Shear Pin | 1 | $ 2.12 | ||
| 25 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
