Suzuki DF 4 Parts Listings - 2003
S/N 00401F-371001 to 00401F-37XXXX

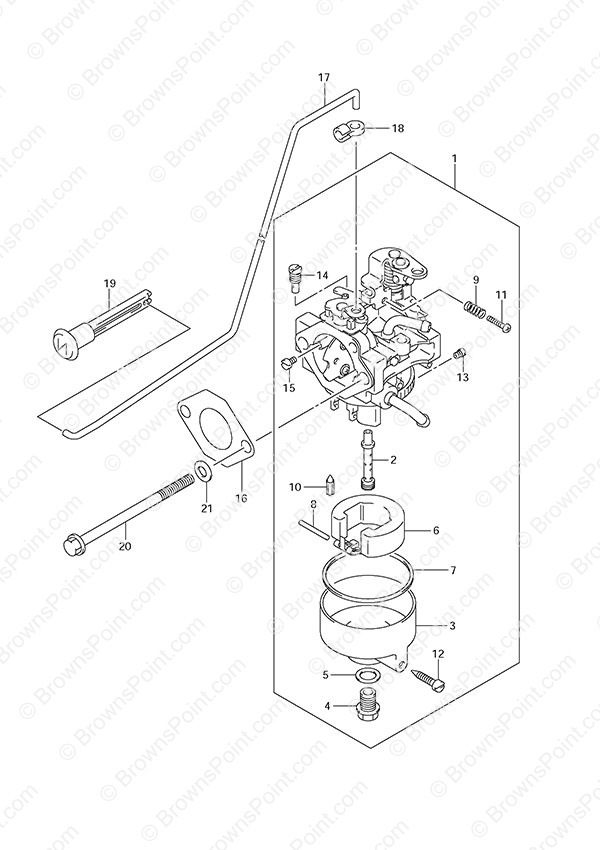

Fig. 5 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-91J30 Carburetor Assembly
SKU: 13200-91J30 Weight: 1.000000 Brand: Price: $ 185.54 |
Carburetor Assembly | 1 | $ 185.54 | ||
| 2 | 13236-91J00 Main Nozzle
SKU: 13236-91J00 Weight: 0.100000 Brand: Price: $ 27.05 |
Main Nozzle | 1 | $ 27.05 | ||
| 3 | 13245-986A0 Float Chamber
SKU: 13245-986A0 Weight: 0.250000 Brand: Price: $ 57.50 |
Float Chamber | 1 | $ 57.50 | ||
| 4 | 13247-986A0 Drain Plug
SKU: 13247-986A0 Weight: 0.100000 Brand: Price: $ 6.64 |
Drain Plug | 1 | $ 6.64 | ||
| 5 | 13249-90100 Drain Plug Gasket
SKU: 13249-90100 Weight: 0.060000 Brand: Price: $ 1.06 |
Drain Plug Gasket | 1 | $ 1.06 | ||
| 6 | 13250-87420 Carburetor Float
SKU: 13250-87420 Weight: 0.060000 Brand: Price: $ 35.33 |
Carburetor Float | 1 | $ 35.33 | ||
| 7 | 13251-87400 Float Chamber Gasket
SKU: 13251-87400 Weight: 0.060000 Brand: Price: $ 5.93 |
Float Chamber Gasket | 1 | $ 5.93 | ||
| 8 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 1 | $ 3.28 | ||
| 9 | 13268-92910 Spring
SKU: 13268-92910 Weight: 0.060000 Brand: Price: $ 2.44 |
Spring | 1 | $ 2.44 | ||
| 10 | 13371-91J00 Needle Valve
SKU: 13371-91J00 Weight: 0.060000 Brand: Price: $ 25.12 |
Needle Valve | 1 | $ 25.12 | ||
| 11 | 13534-98900 Screw
SKU: 13534-98900 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 12 | 13279-90000 Adjuster
SKU: 13279-90000 Weight: 0.060000 Brand: Price: $ 6.36 |
Adjuster | 1 | $ 6.36 | ||
| 13-1 | 09491-77008 Main Jet #77.5
SKU: 09491-77008 Weight: 0.100000 Brand: Price: $ 8.71 |
Main Jet #77.5 | 1 | $ 8.71 | ||
| 13-2 | 09492-75005 Main Jet #75
SKU: 09492-75005 Weight: 0.060000 Brand: Price: $ 10.30 |
Main Jet #75 | 1 | $ 10.30 | High Altitude Spec | |
| 14 | 09492-35026 Pilot Jet #35
SKU: 09492-35026 Weight: 0.060000 Brand: Price: $ 13.26 |
Pilot Jet #35 | 1 | $ 13.26 | ||
| 15 | 09493-18001 Air Jet #0.9 (NLA)
SKU: 09493-18001 Weight: 0.060000 Brand: Price: $ 11.35 |
Air Jet #0.9 (NLA) | 1 | $ 11.35 | ||
| 16 | 13125-91J00 Carburetor Gasket
SKU: 13125-91J00 Weight: 0.060000 Brand: Price: $ 2.94 |
Carburetor Gasket | 1 | $ 2.94 | ||
| 17 | 13413-91J00 Choke Rod
SKU: 13413-91J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Choke Rod | 1 | $ 7.28 | ||
| 18 | 13436-91J00 Choke Rod Connector
SKU: 13436-91J00 Weight: 0.060000 Brand: Price: $ 3.08 |
Choke Rod Connector | 1 | $ 3.08 | ||
| 19 | 13631-91J00 Choke Knob
SKU: 13631-91J00 Weight: 0.060000 Brand: Price: $ 6.21 |
Choke Knob | 1 | $ 6.21 | ||
| 20 | 01547-0680B BOLT
SKU: 01547-0680B Weight: 0.250000 Brand: Price: $ 3.22 |
BOLT | 2 | $ 3.22 | ||
| 21 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
