Suzuki DF 2.5 Parts Listings - 2009
S/N 00251F-980001 to 00251F-98XXXX

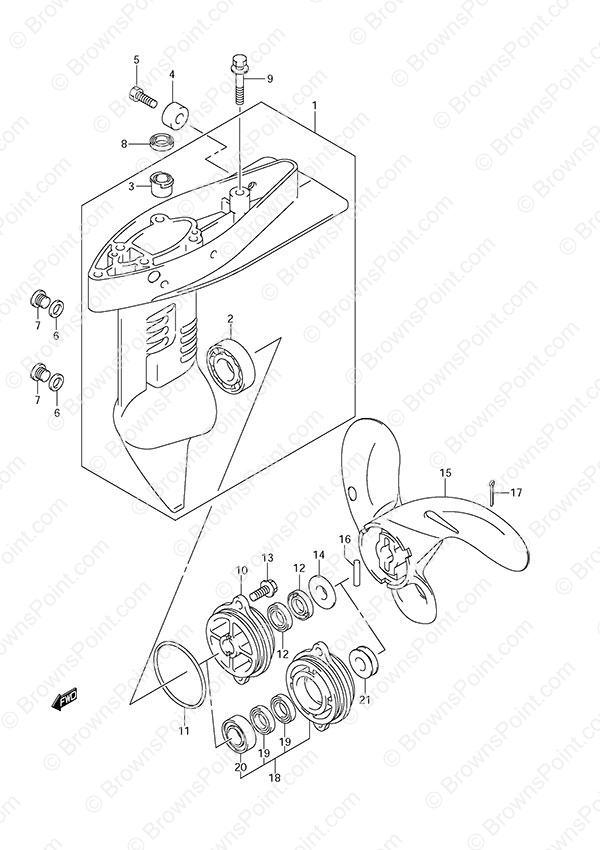

Fig. 16 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-97J20-0EP Gear Case Housing (NLA)
SKU: 55110-97J20-0EP Weight: 4.000000 Brand: Price: $ 300.21 |
Gear Case Housing (NLA) | 1 | $ 300.21 | ||
| 2 | 09262-17019 Bearing (17x35x8)
SKU: 09262-17019 Weight: 0.125000 Brand: Price: $ 19.69 |
Bearing (17x35x8) | 1 | $ 19.69 | ||
| 4 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 5 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 6 | 59178-97J00 Drain Plug Gasket
SKU: 59178-97J00 Weight: 0.060000 Brand: Price: $ 2.03 |
Drain Plug Gasket | 2 | $ 2.03 | ||
| 7 | 09248-08001 Drain Plug
SKU: 09248-08001 Weight: 0.060000 Brand: Price: $ 2.46 |
Drain Plug | 2 | $ 2.46 | ||
| 8 | 59299-97J00 Drive Shaft Oil Seal
SKU: 59299-97J00 Weight: 0.060000 Brand: Price: $ 16.27 |
Drive Shaft Oil Seal | 1 | $ 16.27 | ||
| 9 | 09116-06099 Bolt (6x35)
SKU: 09116-06099 Weight: 0.060000 Brand: Price: $ 2.36 |
Bolt (6x35) | 2 | $ 2.36 | ||
| 11 | 59291-97J00 O-Ring
SKU: 59291-97J00 Weight: 0.060000 Brand: Price: $ 8.34 |
O-Ring | 1 | $ 8.34 | ||
| 12 | 09282-10008 Oil Seal (10x21x4.5)
SKU: 09282-10008 Weight: 0.060000 Brand: Price: $ 3.57 |
Oil Seal (10x21x4.5) | 2 | $ 3.57 | ||
| 13 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 14 | 56123-97J00 Prop Shaft Oil Seal Protector
SKU: 56123-97J00 Weight: 0.060000 Brand: Price: $ 6.08 |
Prop Shaft Oil Seal Protector | 1 | $ 6.08 | ||
| 15 | 58111-97J00-019 Propeller (3x188x135)
SKU: 58111-97J00-019 Weight: 1.000000 Brand: Price: $ 97.41 |
Propeller (3x188x135) | 1 | $ 97.41 | ||
| 16 | 09202-04002 Shear Pin
SKU: 09202-04002 Weight: 0.060000 Brand: Price: $ 2.12 |
Shear Pin | 1 | $ 2.12 | ||
| 17 | 09204-02001 Cotter Pin
SKU: 09204-02001 Weight: 0.060000 Brand: Price: $ 1.56 |
Cotter Pin | 1 | $ 1.56 | ||
| 18 | 56120-97J30-0EP Propeller Shaft Housing
SKU: 56120-97J30-0EP Weight: 0.500000 Brand: Price: $ 163.68 |
Propeller Shaft Housing | 1 | $ 163.68 | ||
| 19 | 09282-10008 Oil Seal (10x21x4.5)
SKU: 09282-10008 Weight: 0.060000 Brand: Price: $ 3.57 |
Oil Seal (10x21x4.5) | 2 | $ 3.57 | ||
| 20 | 08110-60000 BEARING
SKU: 08110-60000 Weight: 0.250000 Brand: Price: $ 17.83 |
BEARING | 1 | $ 17.83 | ||
| 21 | 56123-97J10 Prop Shaft Oil Seal Protector
SKU: 56123-97J10 Weight: 0.060000 Brand: Price: $ 5.85 |
Prop Shaft Oil Seal Protector | 1 | $ 5.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
