Suzuki DF 2.5 Parts Listings - 2009
S/N 00251F-980001 to 00251F-98XXXX

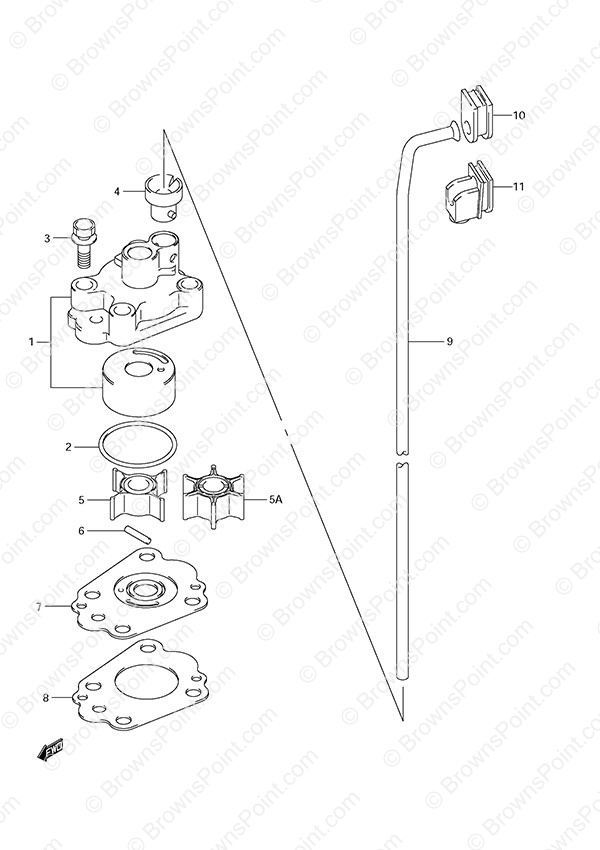

Fig. 6 - Water Pump

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 17410-97J00 Water Pump Case 1 $ 51.60
2 09280-33005 O-Ring 1 $ 2.67
3 09116-06232 Bolt (6x30) 4 $ 2.39
4 17415-97J00 Water Pump Case Grommet 1 $ 4.21
5A 17461-97JM0 Water Pump Impeller 1 $ 19.71
6 09202-02006 Pin 1 $ 1.30
7 17471-97J00 Water Pump Plate 1 $ 7.76
8 17472-97J00 Water Pump Plate Gasket 1 $ 4.99
9 17561-97JL0 Water Tube (S) 1 $ 7.33

Not Available

11 17563-97J10 Water Tube Grommet 1 $ 6.19

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
