Suzuki DF 2.5 Parts Listings - 2006
S/N 00251F-680001 to 00251F-68XXXX

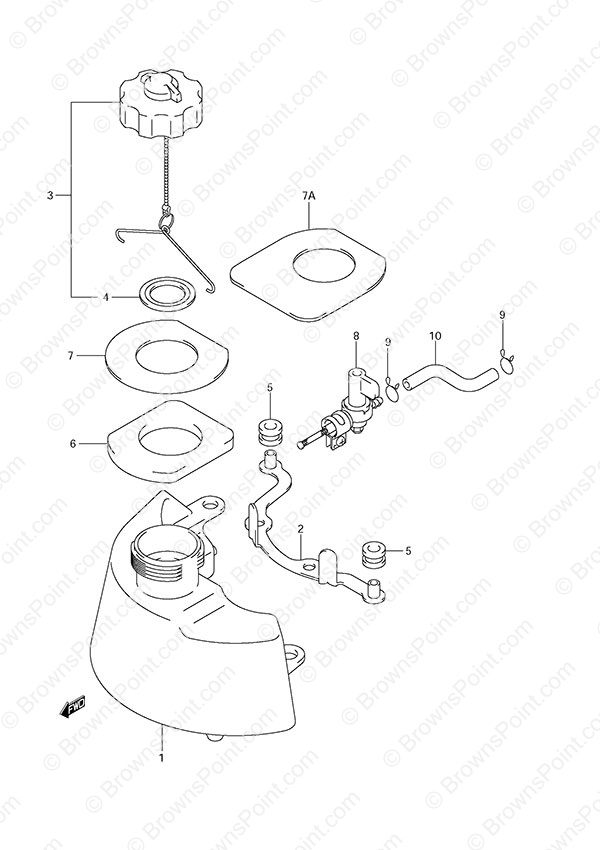

Fig. 21 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65110-97810 Fuel Tank & Bracket Set
SKU: 65110-97810 Weight: 1.000000 Brand: Price: $ 44.90 |
Fuel Tank & Bracket Set | 1 | $ 44.90 | ||
| 2 | 65260-97J00 Fuel Tank Bracket (NLA)
SKU: 65260-97J00 Weight: 0.100000 Brand: Price: $ 27.24 |
Fuel Tank Bracket (NLA) | 1 | $ 27.24 | Use Ref# 1 | |
| 3 | 65510-91J02 Fuel Tank Cap Assembly
SKU: 65510-91J02 Weight: 0.120000 Brand: Price: $ 29.78 |
Fuel Tank Cap Assembly | 1 | $ 29.78 | ||
| 4 | 09168-32003 Tank Cap Gasket
SKU: 09168-32003 Weight: 0.060000 Brand: Price: $ 2.05 |
Tank Cap Gasket | 1 | $ 2.05 | ||
| 5 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 2 | $ 3.31 | ||
| 6 | 65281-97J10 Replaced by 65281-97J11
SKU: 65281-97J10 Weight: 0.120000 Brand: Price: $ 2.60 |
Replaced by 65281-97J11 | 1 | $ 2.60 | ||
| 7A | 65284-97J11 Fuel Tank Grommet Rubber
SKU: 65284-97J11 Weight: 0.060000 Brand: Price: $ 7.68 |
Fuel Tank Grommet Rubber | 1 | $ 7.68 | ||
| 8 | 66100-97J01 Fuel Cock Assembly
SKU: 66100-97J01 Weight: 0.120000 Brand: Price: $ 32.63 |
Fuel Cock Assembly | 1 | $ 32.63 | ||
| 9 | 15191-97JL0 Fuel Hose
SKU: 15191-97JL0 Weight: 0.060000 Brand: Price: $ 7.44 |
Fuel Hose | 1 | $ 7.44 | Cock to Carb | |
| 10 | 59412-91J00 Fuel Hose Clip
SKU: 59412-91J00 Weight: 0.060000 Brand: Price: $ 2.34 |
Fuel Hose Clip | 2 | $ 2.34 | ||
| 11 | 99011-97J00-03B Owners Manual DF 2.5 - 2006
SKU: 99011-97J00-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF 2.5 - 2006 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
