Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14001F-42XXXX
S/N 14001Z-251001 to 14001Z-42XXXX

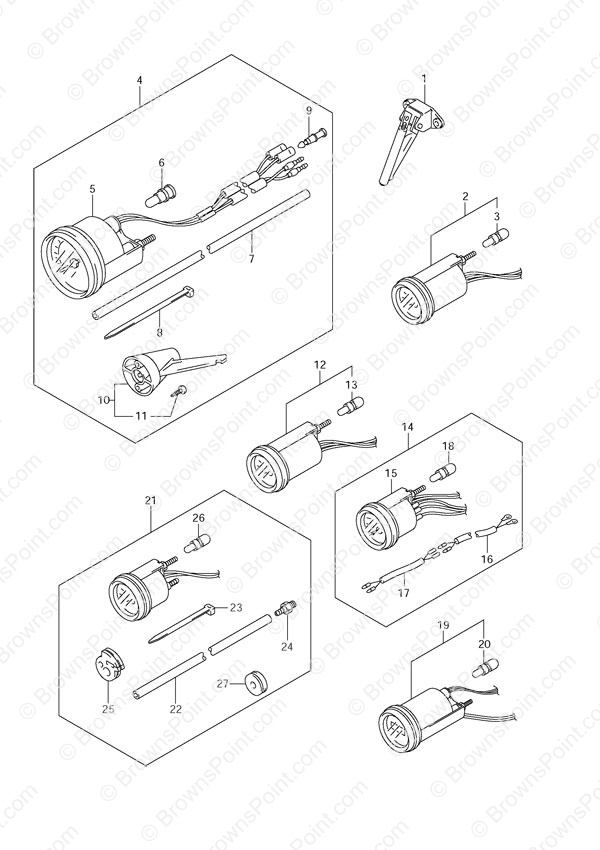

Fig. 51 - Opt: Meter 2002 to 2004
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34190-87D00 Speedometer Sensor
SKU: 34190-87D00 Weight: 0.350000 Brand: Price: $ 44.58 |
Speedometer Sensor | 1 | $ 44.58 | ||
| 2 | 34800-90J02 Trim Meter Assembly (NLA)
SKU: 34800-90J02 Weight: 0.100000 Brand: Price: $ 108.68 |
Trim Meter Assembly (NLA) | 1 | $ 108.68 | ||
| 3 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 4-1 | 34102-92E00 Speedometer Set (80mph) (NLA)
SKU: 34102-92E00 Weight: 0.100000 Brand: Price: $ 145.52 |
Speedometer Set (80mph) (NLA) | 1 | $ 145.52 | ||
| 4-2 | 34102-92E10 Speedometer Set (50mph) (NLA)
SKU: 34102-92E10 Weight: 0.100000 Brand: Price: $ 139.88 |
Speedometer Set (50mph) (NLA) | 1 | $ 139.88 | ||
| 4-3 | 34102-92E20 Speedometer Set (45knt)
SKU: 34102-92E20 Weight: 2.000000 Brand: Price: $ 350.07 |
Speedometer Set (45knt) | 1 | $ 350.07 | ||
| 5-1 | 34100-92E00 Speedometer (80mph) (NLA)
SKU: 34100-92E00 Weight: 0.100000 Brand: Price: $ 81.95 |
Speedometer (80mph) (NLA) | 1 | $ 81.95 | ||
| 5-2 | 34100-92E10 Speedometer (50mph) (NLA)
SKU: 34100-92E10 Weight: 0.100000 Brand: Price: $ 81.95 |
Speedometer (50mph) (NLA) | 1 | $ 81.95 | ||
| 5-3 | 34100-92E20 Speedometer (45kt) (NLA)
SKU: 34100-92E20 Weight: 0.100000 Brand: Price: $ 163.97 |
Speedometer (45kt) (NLA) | 1 | $ 163.97 | ||
| 6 | 09471-12179 Bulb (Red)
SKU: 09471-12179 Weight: 0.060000 Brand: Price: $ 6.52 |
Bulb (Red) | 1 | $ 6.52 | ||
| 7 | 34191-92E00 Water Pressure Tubing
SKU: 34191-92E00 Weight: 0.300000 Brand: Price: $ 33.64 |
Water Pressure Tubing | 1 | $ 33.64 | ||
| 8 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 9 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 2 | $ 1.31 | ||
| 10 | 34190-95500 Speedometer Sensor (NLA)
SKU: 34190-95500 Weight: 0.100000 Brand: Price: $ 42.08 |
Speedometer Sensor (NLA) | 1 | $ 42.08 | ||
| 11 | 03112-06303 Screw (NLA)
SKU: 03112-06303 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (NLA) | 2 | $ 2.20 | ||
| 12 | 34600-92E00 Volt Meter (NLA)
SKU: 34600-92E00 Weight: 0.100000 Brand: Price: $ 64.95 |
Volt Meter (NLA) | 1 | $ 64.95 | ||
| 13 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 14 | 34300-92E01 Fuel Gauge Set (NLA)
SKU: 34300-92E01 Weight: 0.100000 Brand: Price: $ 89.95 |
Fuel Gauge Set (NLA) | 1 | $ 89.95 | ||
| 15 | 34320-92E01 Fuel Gauge (NLA)
SKU: 34320-92E01 Weight: 1.000000 Brand: Price: $ 2.31 |
Fuel Gauge (NLA) | 1 | $ 2.31 | ||
| 16 | 34310-92E00 Fuel Gauge Lead (NLA)
SKU: 34310-92E00 Weight: 0.100000 Brand: Price: $ 41.14 |
Fuel Gauge Lead (NLA) | 1 | $ 41.14 | ||
| 17 | 34360-92E00 Adapter Harness (NLA)
SKU: 34360-92E00 Weight: 1.000000 Brand: Price: $ 31.27 |
Adapter Harness (NLA) | 1 | $ 31.27 | ||
| 18 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 19 | 34500-92E00 Hour Meter (NLA)
SKU: 34500-92E00 Weight: 0.100000 Brand: Price: $ 82.95 |
Hour Meter (NLA) | 1 | $ 82.95 | ||
| 20 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 21 | 34650-92E00 Water Pressure Gauge (NLA)
SKU: 34650-92E00 Weight: 1.000000 Brand: Price: $ 72.95 |
Water Pressure Gauge (NLA) | 1 | $ 72.95 | ||
| 22 | 34191-92E00 Water Pressure Tubing
SKU: 34191-92E00 Weight: 0.300000 Brand: Price: $ 33.64 |
Water Pressure Tubing | 1 | $ 33.64 | ||
| 23 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 24 | 34652-92E00 Union (NLA)
SKU: 34652-92E00 Weight: 0.060000 Brand: Price: $ 11.19 |
Union (NLA) | 1 | $ 11.19 | ||
| 25 | 36658-95600 Cable Grommet (NLA)
SKU: 36658-95600 Weight: 0.100000 Brand: Price: $ 5.94 |
Cable Grommet (NLA) | 1 | $ 5.94 | ||
| 26 | 09471-12180 Bulb (NLA)
SKU: 09471-12180 Weight: 0.100000 Brand: Price: $ 4.84 |
Bulb (NLA) | 1 | $ 4.84 | ||
| 27 | 09320-08028 Grommet
SKU: 09320-08028 Weight: 0.100000 Brand: Price: $ 3.09 |
Grommet | 1 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
