Suzuki DF 2.5 Parts Listings - 2006
S/N 00251F-680001 to 00251F-68XXXX

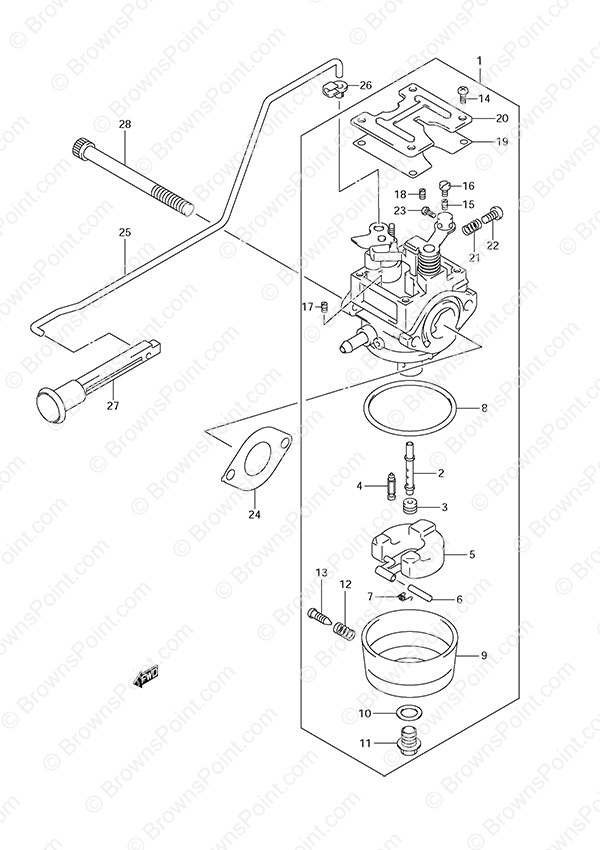

Fig. 5 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-97J41 Carburetor Assembly
SKU: 13200-97J41 Weight: 1.250000 Brand: Price: $ 114.18 |
Carburetor Assembly | 1 | $ 114.18 | ||
| 2 | 13236-97J10 Main Nozzle
SKU: 13236-97J10 Weight: 0.125000 Brand: Price: $ 29.85 |
Main Nozzle | 1 | $ 29.85 | ||
| 3-1 | 09491-68006 Main Jet #68
SKU: 09491-68006 Weight: 0.125000 Brand: Price: $ 16.18 |
Main Jet #68 | 1 | $ 16.18 | Optional | |
| 3-2 | 09491-70018 Main Jet #70
SKU: 09491-70018 Weight: 0.060000 Brand: Price: $ 15.42 |
Main Jet #70 | 1 | $ 15.42 | ||
| 3-3 | 09491-72015 Main Jet #72
SKU: 09491-72015 Weight: 0.200000 Brand: Price: $ 16.18 |
Main Jet #72 | 1 | $ 16.18 | Optional | |
| 4 | 13371-97J00 Needle Valve
SKU: 13371-97J00 Weight: 0.060000 Brand: Price: $ 24.19 |
Needle Valve | 1 | $ 24.19 | ||
| 5 | 13250-97J00 Carburetor Float
SKU: 13250-97J00 Weight: 0.125000 Brand: Price: $ 31.27 |
Carburetor Float | 1 | $ 31.27 | ||
| 6 | 13254-97J00 Float Pin
SKU: 13254-97J00 Weight: 0.060000 Brand: Price: $ 3.57 |
Float Pin | 1 | $ 3.57 | ||
| 7 | 13268-97J30 Spring
SKU: 13268-97J30 Weight: 0.060000 Brand: Price: $ 3.07 |
Spring | 1 | $ 3.07 | ||
| 8 | 13251-97J00 Float Chamber Gasket
SKU: 13251-97J00 Weight: 0.060000 Brand: Price: $ 6.78 |
Float Chamber Gasket | 1 | $ 6.78 | ||
| 9 | 13245-97J00 Float Chamber
SKU: 13245-97J00 Weight: 0.125000 Brand: Price: $ 16.86 |
Float Chamber | 1 | $ 16.86 | ||
| 10 | 13249-97J00 Gasket
SKU: 13249-97J00 Weight: 0.060000 Brand: Price: $ 2.59 |
Gasket | 1 | $ 2.59 | ||
| 11 | 13247-97J00 Screw
SKU: 13247-97J00 Weight: 0.100000 Brand: Price: $ 4.14 |
Screw | 1 | $ 4.14 | ||
| 12 | 13268-97J10 Spring
SKU: 13268-97J10 Weight: 0.100000 Brand: Price: $ 4.39 |
Spring | 1 | $ 4.39 | ||
| 13 | 13616-97J00 Screw
SKU: 13616-97J00 Weight: 0.100000 Brand: Price: $ 22.62 |
Screw | 1 | $ 22.62 | ||
| 14 | 13267-97J00 Screw (NLA)
SKU: 13267-97J00 Weight: 0.100000 Brand: Price: $ 1.57 |
Screw (NLA) | 4 | $ 1.57 | ||
| 15-1 | 09492-30018 Pilot Jet #30 (NLA)
SKU: 09492-30018 Weight: 0.060000 Brand: Price: $ 12.37 |
Pilot Jet #30 (NLA) | 1 | $ 12.37 | Optional | |
| 15-2 | 09492-32011 Pilot Jet #32
SKU: 09492-32011 Weight: 0.060000 Brand: Price: $ 15.87 |
Pilot Jet #32 | 1 | $ 15.87 | ||
| 15-3 | 09492-34004 Pilot Jet #34
SKU: 09492-34004 Weight: 0.060000 Brand: Price: $ 15.58 |
Pilot Jet #34 | 1 | $ 15.58 | Optional | |
| 16 | 13267-97J10 Screw
SKU: 13267-97J10 Weight: 0.100000 Brand: Price: $ 4.20 |
Screw | 1 | $ 4.20 | ||
| 17 | 09493-34005 Air Jet #170
SKU: 09493-34005 Weight: 0.060000 Brand: Price: $ 15.14 |
Air Jet #170 | 1 | $ 15.14 | ||
| 18 | 09493-29004 Pilot Air Jet #145
SKU: 09493-29004 Weight: 0.060000 Brand: Price: $ 15.14 |
Pilot Air Jet #145 | 1 | $ 15.14 | ||
| 19 | 13249-97J10 Gasket
SKU: 13249-97J10 Weight: 0.060000 Brand: Price: $ 11.50 |
Gasket | 1 | $ 11.50 | ||
| 20 | 13248-97J00 Plate (NLA)
SKU: 13248-97J00 Weight: 0.100000 Brand: Price: $ 13.48 |
Plate (NLA) | 1 | $ 13.48 | ||
| 21 | 13268-97J20 Spring
SKU: 13268-97J20 Weight: 0.100000 Brand: Price: $ 4.74 |
Spring | 1 | $ 4.74 | ||
| 22 | 13534-97J00 Screw (NLA)
SKU: 13534-97J00 Weight: 0.100000 Brand: Price: $ 2.80 |
Screw (NLA) | 1 | $ 2.80 | ||
| 23 | 13267-97J20 Screw (NLA)
SKU: 13267-97J20 Weight: 0.100000 Brand: Price: $ 2.64 |
Screw (NLA) | 1 | $ 2.64 | ||
| 24 | 13125-97J00 Carburetor Gasket
SKU: 13125-97J00 Weight: 0.060000 Brand: Price: $ 2.81 |
Carburetor Gasket | 1 | $ 2.81 | ||
| 25 | 13413-97J10 Choke Rod
SKU: 13413-97J10 Weight: 0.125000 Brand: Price: $ 8.17 |
Choke Rod | 1 | $ 8.17 | ||
| 26 | 13436-91J00 Choke Rod Connector
SKU: 13436-91J00 Weight: 0.060000 Brand: Price: $ 3.08 |
Choke Rod Connector | 1 | $ 3.08 | ||
| 27 | 13631-91J00 Choke Knob
SKU: 13631-91J00 Weight: 0.060000 Brand: Price: $ 6.21 |
Choke Knob | 1 | $ 6.21 | ||
| 28 | 09103-06522 Bolt
SKU: 09103-06522 Weight: 0.060000 Brand: Price: $ 2.54 |
Bolt | 2 | $ 2.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
