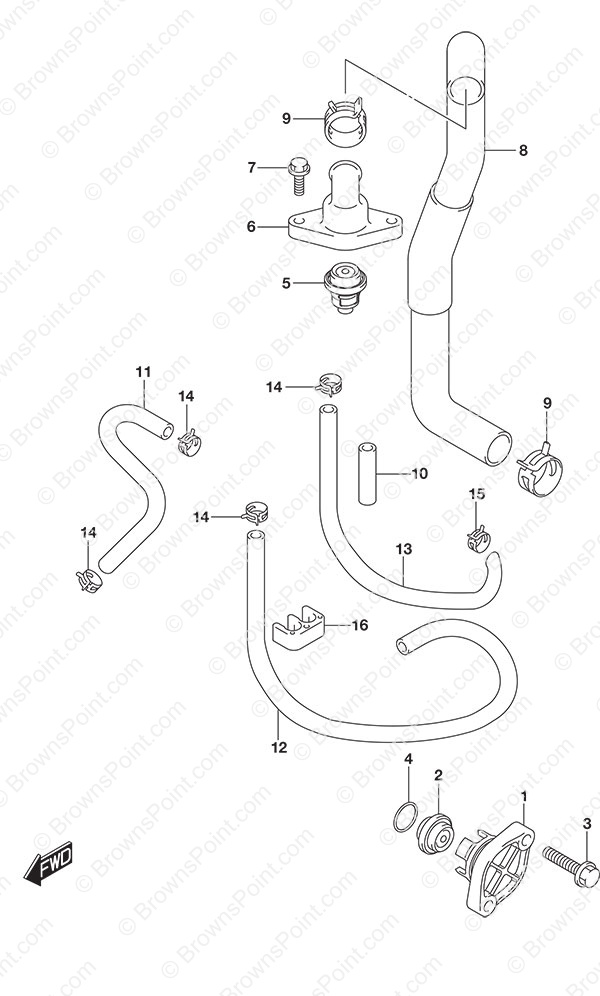

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1-1 | 17611-90J00 Water Pressure Valve Cover SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | Black | |
1-2 | 17611-90J00 Water Pressure Valve Cover SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | ||
2 | 17660-99E01 Water Pressure Valve SKU: 17660-99E01 Weight: 0.125000 Brand: Price: $ 17.21 |
Water Pressure Valve | 1 | $ 17.21 | ||
3 | 09116-06121 Bolt (6x25) SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
4 | 09280-26006 O-Ring SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
5 | 17670-93955 Thermostat (60c) SKU: 17670-93955 Weight: 0.125000 Brand: Price: $ 57.90 |
Thermostat (60c) | 1 | $ 57.90 | ||
6 | 17681-88L00 Thermostat Cover SKU: 17681-88L00 Weight: 0.250000 Brand: Price: $ 38.29 |
Thermostat Cover | 1 | $ 38.29 | ||
7 | 01550-06207 BOLT SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
8 | 11196-88L00 Water Return Hose SKU: 11196-88L00 Weight: 0.500000 Brand: Price: $ 26.45 |
Water Return Hose | 1 | $ 26.45 | ||
9 | 09401-25406 Clip SKU: 09401-25406 Weight: 0.060000 Brand: Price: $ 3.57 |
Clip | 2 | $ 3.57 | ||
10 | 18498-94J20 Hose Protector (L:320) (NLA) SKU: 18498-94J20 Weight: 0.100000 Brand: Price: $ 5.47 |
Hose Protector (L:320) (NLA) | 2 | $ 5.47 | L:320->50 | |
11 | 17712-88L00 Water Hose SKU: 17712-88L00 Weight: 0.250000 Brand: Price: $ 6.06 |
Water Hose | 1 | $ 6.06 | ||
12 | 09352-50006-600 Hose (5x9x600) SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->500 | |
13 | 09359-50901-980 Hose SKU: 09359-50901-980 Weight: 0.250000 Brand: Price: $ 19.97 |
Hose | 1 | $ 19.97 | L:980->250 | |
14 | 09401-08413 Clip SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 5 | $ 2.09 | ||
15 | 09401-10412 Clip SKU: 09401-10412 Weight: 0.060000 Brand: Price: $ 2.72 |
Clip | 1 | $ 2.72 | ||
16 | 09408-00175 Clamp SKU: 09408-00175 Weight: 0.250000 Brand: Price: $ 2.72 |
Clamp | 1 | $ 2.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
