Suzuki DF 40A Parts Listings - 2017
S/N 04003F-710001 to 04003F-71XXXX

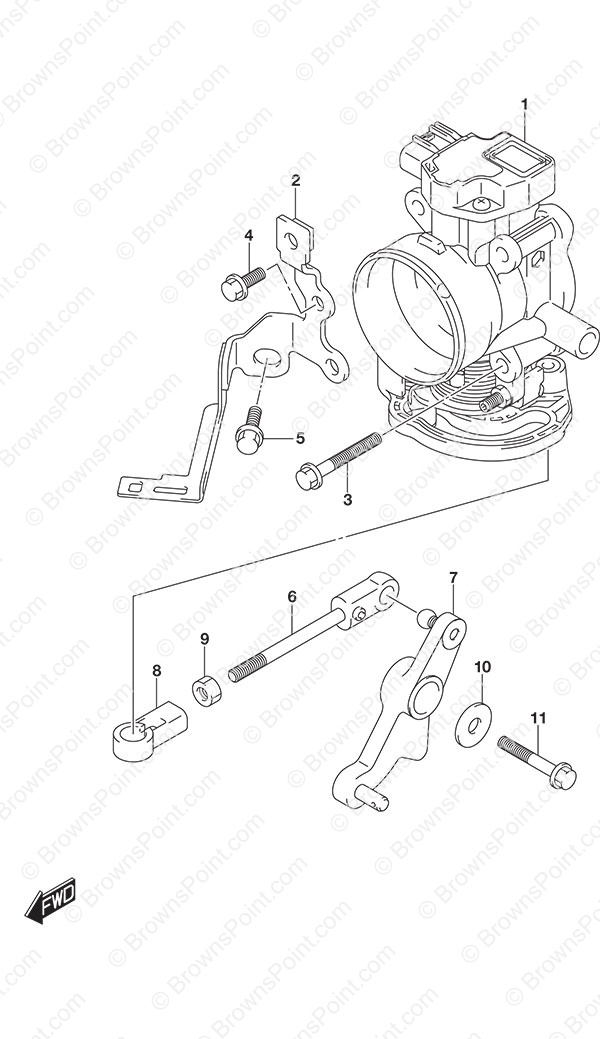

Fig. 163 - Throttle Body

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 13300-88L01 Throttle Body Assembly 1 $ 573.96

Not Available

2 13315-88L00 Throttle Body Bracket (NLA) 1 $ 16.25

Not Available

3 01550-06457 BOLT 4 $ 2.74
4 01550-06167 BOLT 2 $ 2.33
5 01550-08207 BOLT 1 $ 2.74
6 13510-88L00 Throttle Rod 1 $ 20.45
7 19120-88L01 Throttle Lever 1 $ 27.36
8 19131-95502 Connector 1 $ 4.52
9 09140-05005 Nut 1 $ 2.65
10 09160-06047 Washer (6.2x20x2) 1 $ 1.91
11 01550-06407 BOLT 1 $ 2.74

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
