Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

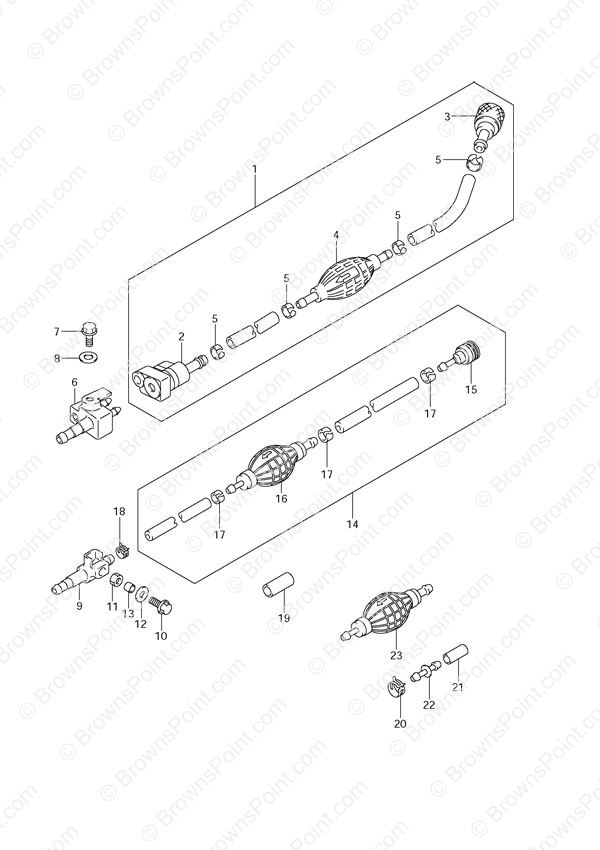

Fig. 49 - Fuel Hose
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65700-87J28 Fuel Hose
SKU: 65700-87J28 Weight: 2.000000 Brand: Price: $ 297.93 |
Fuel Hose | 1 | $ 297.93 | ||
| 2 | 65750-87J11 Fuel Hose Connector
SKU: 65750-87J11 Weight: 0.200000 Brand: Price: $ 20.94 |
Fuel Hose Connector | 1 | $ 20.94 | 2002 | |
| 3 | 65750-95501 Fuel Hose Connector (13mm)
SKU: 65750-95501 Weight: 0.120000 Brand: Price: $ 32.61 |
Fuel Hose Connector (13mm) | 1 | $ 32.61 | 2002 | |
| 4 | 65770-95505 Squeeze Pump (NLA)
SKU: 65770-95505 Weight: 0.150000 Brand: Price: $ 21.34 |
Squeeze Pump (NLA) | 1 | $ 21.34 | 2002 | |
| 5 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 | 2002 | |
| 6 | 65720-986L0 Fuel Connector
SKU: 65720-986L0 Weight: 0.100000 Brand: Price: $ 57.47 |
Fuel Connector | 1 | $ 57.47 | 2002 | |
| 7 | 09103-06237 Bolt (6x12.5)
SKU: 09103-06237 Weight: 0.060000 Brand: Price: $ 3.52 |
Bolt (6x12.5) | 1 | $ 3.52 | 2002 | |
| 8 | 09160-06085 Washer (6.5x15x1.0)
SKU: 09160-06085 Weight: 0.060000 Brand: Price: $ 1.36 |
Washer (6.5x15x1.0) | 1 | $ 1.36 | 2002 | |
| 9 | 65721-90J00 Fuel Connector
SKU: 65721-90J00 Weight: 0.060000 Brand: Price: $ 9.20 |
Fuel Connector | 1 | $ 9.20 | 2003 to 2006 | |
| 10 | 09103-06092 Bolt (6x15)
SKU: 09103-06092 Weight: 0.060000 Brand: Price: $ 1.86 |
Bolt (6x15) | 1 | $ 1.86 | 2003 to 2006 | |
| 11 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | 2003 to 2006 | |
| 12 | 09160-06085 Washer (6.5x15x1.0)
SKU: 09160-06085 Weight: 0.060000 Brand: Price: $ 1.36 |
Washer (6.5x15x1.0) | 1 | $ 1.36 | 2003 to 2006 | |
| 13 | 09180-06334 Spacer (NLA)
SKU: 09180-06334 Weight: 0.100000 Brand: Price: $ 2.46 |
Spacer (NLA) | 1 | $ 2.46 | 2003 to 2006 | |
| 14 | 65700-90J07 Fuel Hose
SKU: 65700-90J07 Weight: 1.000000 Brand: Price: $ 190.81 |
Fuel Hose | 1 | $ 190.81 | 2003 to 2006 | |
| 15 | 65750-95501 Fuel Hose Connector (13mm)
SKU: 65750-95501 Weight: 0.120000 Brand: Price: $ 32.61 |
Fuel Hose Connector (13mm) | 1 | $ 32.61 | 2003 to 2006 | |
| 16 | 65770-95505 Squeeze Pump (NLA)
SKU: 65770-95505 Weight: 0.150000 Brand: Price: $ 21.34 |
Squeeze Pump (NLA) | 1 | $ 21.34 | 2003 to 2006 | |
| 17 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 3 | $ 2.90 | 2003 to 2006 | |
| 18 | 09401-11415 Clip
SKU: 09401-11415 Weight: 0.060000 Brand: Price: $ 2.27 |
Clip | 1 | $ 2.27 | 2003 to 2006 | |
| 19 | 09251-07003 Cap
SKU: 09251-07003 Weight: 0.250000 Brand: Price: $ 2.20 |
Cap | 1 | $ 2.20 | 2003 to 2006 | |
| 20 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | 2007 Newer | |
| 21 | 09251-07003 Cap
SKU: 09251-07003 Weight: 0.250000 Brand: Price: $ 2.20 |
Cap | 1 | $ 2.20 | 2007 Newer | |
| 22 | 09367-08001 Hose Joint
SKU: 09367-08001 Weight: 0.060000 Brand: Price: $ 3.61 |
Hose Joint | 1 | $ 3.61 | 2007 Newer | |
| 23 | 65770-95505 Squeeze Pump (NLA)
SKU: 65770-95505 Weight: 0.150000 Brand: Price: $ 21.34 |
Squeeze Pump (NLA) | 1 | $ 21.34 | 2007 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
