Suzuki DF 25A Parts Listings - 2017
S/N 02504F-710001 to 02504F-71XXXX

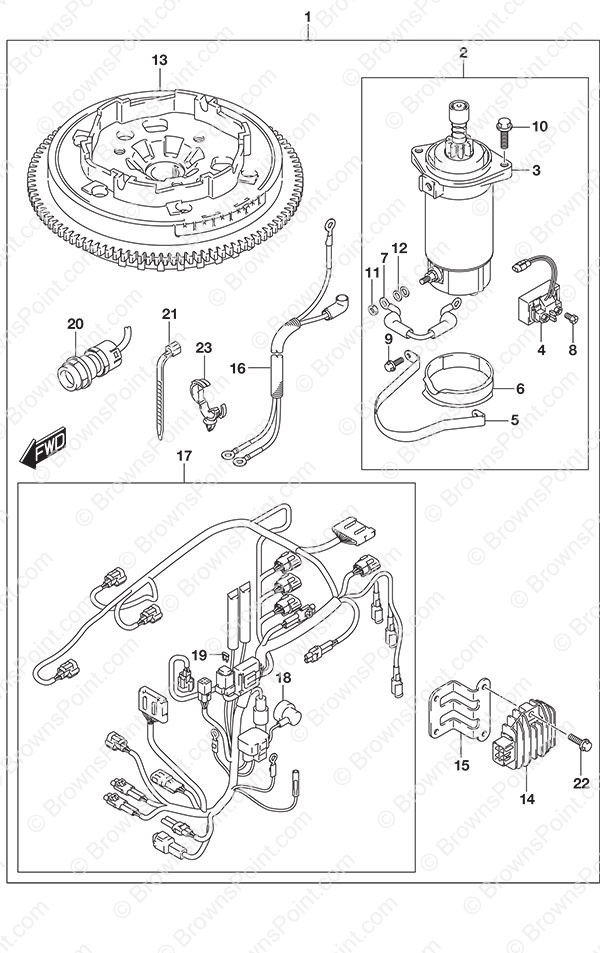

Fig. 561 - Opt: Starting Motor Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31000-94L04 Electric Starter Set
SKU: 31000-94L04 Weight: 10.000000 Brand: Price: $ 1,559.92 |
Electric Starter Set | 1 | $ 1,559.92 | ||
| 2 | 31101-94L00 Starter Motor Set
SKU: 31101-94L00 Weight: 5.000000 Brand: Price: $ 962.11 |
Starter Motor Set | 1 | $ 962.11 | ||
| 3 | 31100-94401 Starter Motor Assembly
SKU: 31100-94401 Weight: 5.000000 Brand: Price: $ 626.45 |
Starter Motor Assembly | 1 | $ 626.45 | ||
| 4 | 31800-94L01 Starter Motor Relay Assembly
SKU: 31800-94L01 Weight: 0.500000 Brand: Price: $ 69.88 |
Starter Motor Relay Assembly | 1 | $ 69.88 | ||
| 5 | 31912-94L00 Starter Motor Band
SKU: 31912-94L00 Weight: 0.250000 Brand: Price: $ 12.63 |
Starter Motor Band | 1 | $ 12.63 | ||
| 6 | 31918-94402 Lower Damper
SKU: 31918-94402 Weight: 0.060000 Brand: Price: $ 9.82 |
Lower Damper | 1 | $ 9.82 | ||
| 7 | 33820-89E01 Starter Sub Cable Assy (NLA)
SKU: 33820-89E01 Weight: 5.000000 Brand: Price: $ 11.51 |
Starter Sub Cable Assy (NLA) | 1 | $ 11.51 | ||
| 8 | 09128-06013 Screw (6x8)
SKU: 09128-06013 Weight: 0.060000 Brand: Price: $ 1.24 |
Screw (6x8) | 2 | $ 1.24 | ||
| 9 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 11 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | ||
| 12 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 13 | 32102-94L10 Flywheel
SKU: 32102-94L10 Weight: 5.000000 Brand: Price: $ 506.82 |
Flywheel | 1 | $ 506.82 | ||
| 14 | 32800-88L01 Rectifier/Regulator Assembly
SKU: 32800-88L01 Weight: 1.000000 Brand: Price: $ 159.97 |
Rectifier/Regulator Assembly | 1 | $ 159.97 | ||
| 15 | 32815-94L00 Rectifier Bracket
SKU: 32815-94L00 Weight: 0.250000 Brand: Price: $ 21.75 |
Rectifier Bracket | 1 | $ 21.75 | ||
| 16 | 33810-94L01 Starter Cable
SKU: 33810-94L01 Weight: 5.000000 Brand: Price: $ 97.83 |
Starter Cable | 1 | $ 97.83 | ||
| 17 | 36610-94L11 Replaced by 36610-94L10
SKU: 36610-94L11 Weight: 5.000000 Brand: Price: $ 334.45 |
Replaced by 36610-94L10 | 1 | $ 334.45 | ||
| 18 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 19 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | ||
| 20 | 37161-89L02 Starter Motor Switch Assembly
SKU: 37161-89L02 Weight: 0.250000 Brand: Price: $ 27.20 |
Starter Motor Switch Assembly | 1 | $ 27.20 | ||
| 21 | 09407-18402 Clamp (L:165)
SKU: 09407-18402 Weight: 0.060000 Brand: Price: $ 2.21 |
Clamp (L:165) | 1 | $ 2.21 | ||
| 22 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 23 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
