Suzuki DF 25A Parts Listings - 2017
S/N 02504F-710001 to 02504F-71XXXX

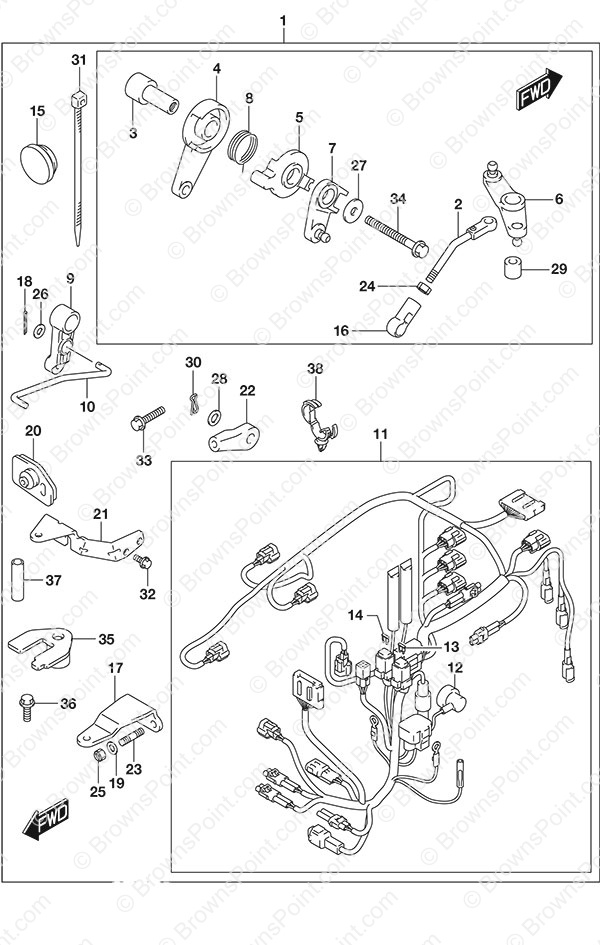

Fig. 513A - Opt: Remote Control Parts
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67130-94L03 PARTS SET,R/CO
SKU: 67130-94L03 Weight: 0.000000 Brand: Price: $ 661.40 |
PARTS SET,R/CO | 1 | $ 661.40 | ||
| 2 | 13510-94L00 Throttle Rod No 1
SKU: 13510-94L00 Weight: 0.250000 Brand: Price: $ 8.58 |
Throttle Rod No 1 | 1 | $ 8.58 | ||
| 3 | 19116-94L00 Throttle Lever Holder
SKU: 19116-94L00 Weight: 0.250000 Brand: Price: $ 6.35 |
Throttle Lever Holder | 1 | $ 6.35 | ||
| 4 | 19120-99J11 Throttle Control Lever
SKU: 19120-99J11 Weight: 0.250000 Brand: Price: $ 6.84 |
Throttle Control Lever | 1 | $ 6.84 | ||
| 5 | 19122-99J00 Interlink Throttle Lever No 2
SKU: 19122-99J00 Weight: 0.250000 Brand: Price: $ 11.11 |
Interlink Throttle Lever No 2 | 1 | $ 11.11 | ||
| 6 | 19140-94L00 Throttle Lever No 2
SKU: 19140-94L00 Weight: 0.250000 Brand: Price: $ 25.40 |
Throttle Lever No 2 | 1 | $ 25.40 | ||
| 7 | 19140-94L20 Throttle Control Lever No 2
SKU: 19140-94L20 Weight: 0.250000 Brand: Price: $ 16.63 |
Throttle Control Lever No 2 | 1 | $ 16.63 | ||
| 8 | 19185-99J00 Throttle Lever Spring
SKU: 19185-99J00 Weight: 0.250000 Brand: Price: $ 6.49 |
Throttle Lever Spring | 1 | $ 6.49 | ||
| 9 | 21110-94L00 Clutch Control Lever
SKU: 21110-94L00 Weight: 0.250000 Brand: Price: $ 18.18 |
Clutch Control Lever | 1 | $ 18.18 | ||
| 10 | 23115-94L10 Clutch Lever Link
SKU: 23115-94L10 Weight: 0.250000 Brand: Price: $ 6.08 |
Clutch Lever Link | 1 | $ 6.08 | ||
| 11 | 36610-94L20 Wiring Harness Assembly
SKU: 36610-94L20 Weight: 5.000000 Brand: Price: $ 521.60 |
Wiring Harness Assembly | 1 | $ 521.60 | ||
| 12 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 13 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | ||
| 14 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | ||
| 15 | 37163-89L00 Starting Switch Hole Plug
SKU: 37163-89L00 Weight: 0.250000 Brand: Price: $ 4.14 |
Starting Switch Hole Plug | 1 | $ 4.14 | ||
| 16 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 17 | 43755-94L00 Steering Bracket Attachment
SKU: 43755-94L00 Weight: 0.250000 Brand: Price: $ 45.71 |
Steering Bracket Attachment | 1 | $ 45.71 | ||
| 18 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 19 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
| 20 | 61124-94L10 Remocon Cable Grommet
SKU: 61124-94L10 Weight: 0.200000 Brand: Price: $ 39.47 |
Remocon Cable Grommet | 1 | $ 39.47 | ||
| 21 | 67341-94L00 Remocon Cable Holder
SKU: 67341-94L00 Weight: 0.200000 Brand: Price: $ 20.62 |
Remocon Cable Holder | 1 | $ 20.62 | ||
| 22 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 2 | $ 7.75 | ||
| 23 | 09108-08286 Stud Bolt
SKU: 09108-08286 Weight: 0.060000 Brand: Price: $ 14.70 |
Stud Bolt | 2 | $ 14.70 | ||
| 24 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 25 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 2 | $ 5.21 | ||
| 26 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 2 | $ 1.70 | ||
| 27 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 2 | $ 1.99 | ||
| 28 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 29 | 09180-06230 Spacer (6.2x12.6x12.5)
SKU: 09180-06230 Weight: 0.060000 Brand: Price: $ 6.41 |
Spacer (6.2x12.6x12.5) | 1 | $ 6.41 | ||
| 30 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 2 | $ 1.91 | ||
| 31 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 32 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 2 | $ 1.66 | ||
| 33 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 34 | 01550-06557 BOLT
SKU: 01550-06557 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | ||
| 35 | 67343-94L00 Remocon Cable Stopper
SKU: 67343-94L00 Weight: 0.200000 Brand: Price: $ 11.91 |
Remocon Cable Stopper | 1 | $ 11.91 | ||
| 36 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 1 | $ 2.60 | ||
| 37 | 09352-70104-600 Hose (7x10.2x600)
SKU: 09352-70104-600 Weight: 0.060000 Brand: Price: $ 5.72 |
Hose (7x10.2x600) | 2 | $ 5.72 | L:600->14 | |
| 38 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
