Suzuki DF 30A Parts Listings - 2016
S/N 03004F-610001 to 03004F-61XXXX

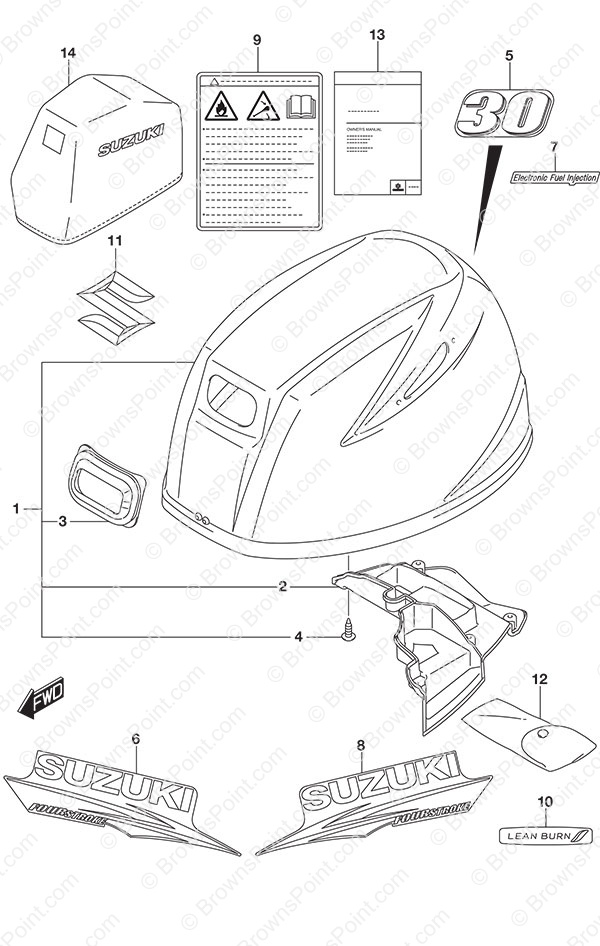

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-94L00-0EP Engine Cover Assembly
SKU: 61400-94L00-0EP Weight: 10.000000 Brand: Price: $ 295.78 |
Engine Cover Assembly | 1 | $ 295.78 | ||
| 2 | 61433-94L00 Air Intake Inner Cover
SKU: 61433-94L00 Weight: 1.000000 Brand: Price: $ 25.17 |
Air Intake Inner Cover | 1 | $ 25.17 | ||
| 3 | 61622-90L00 Recoil Starter Seal
SKU: 61622-90L00 Weight: 0.250000 Brand: Price: $ 25.25 |
Recoil Starter Seal | 1 | $ 25.25 | ||
| 4 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 6 | $ 1.70 | ||
| 5 | 61435-94L10 Rear Emblem Mark (30)
SKU: 61435-94L10 Weight: 0.125000 Brand: Price: $ 3.04 |
Rear Emblem Mark (30) | 1 | $ 3.04 | ||
| 6 | 61443-94L00 Starboard Engine Cover Stripe
SKU: 61443-94L00 Weight: 0.250000 Brand: Price: $ 10.38 |
Starboard Engine Cover Stripe | 1 | $ 10.38 | ||
| 7 | 61446-89L00 EFI Decal
SKU: 61446-89L00 Weight: 0.060000 Brand: Price: $ 3.05 |
EFI Decal | 1 | $ 3.05 | ||
| 8 | 61453-94L00 Port Engine Cover Stripe
SKU: 61453-94L00 Weight: 0.250000 Brand: Price: $ 10.00 |
Port Engine Cover Stripe | 1 | $ 10.00 | ||
| 9 | 61458-89L10 Engine Cover Label
SKU: 61458-89L10 Weight: 0.125000 Brand: Price: $ 12.49 |
Engine Cover Label | 1 | $ 12.49 | ||
| 10 | 61471-89L00 Lean Burn Decal
SKU: 61471-89L00 Weight: 0.125000 Brand: Price: $ 9.72 |
Lean Burn Decal | 1 | $ 9.72 | ||
| 11 | 77811-58J10-0PG Chrome S Emblem
SKU: 77811-58J10-0PG Weight: 0.250000 Brand: Price: $ 13.98 |
Chrome S Emblem | 1 | $ 13.98 | ||
| 12 | 59800-94L00 Tool Assembly
SKU: 59800-94L00 Weight: 1.000000 Brand: Price: $ 31.00 |
Tool Assembly | 1 | $ 31.00 | ||
| 13 | 99011-94L10-03B Owners Manual DF25A/DF30A - 2016
SKU: 99011-94L10-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF25A/DF30A - 2016 | 1 | $ 20.00 | ||
| 14 | 68110-88L00 Weather Cover (NLA)
SKU: 68110-88L00 Weight: 0.060000 Brand: Price: $ 51.46 |
Weather Cover (NLA) | 1 | $ 51.46 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
