Suzuki DF 25A Parts Listings - 2016
S/N 02504F-610001 to 02504F-61XXXX

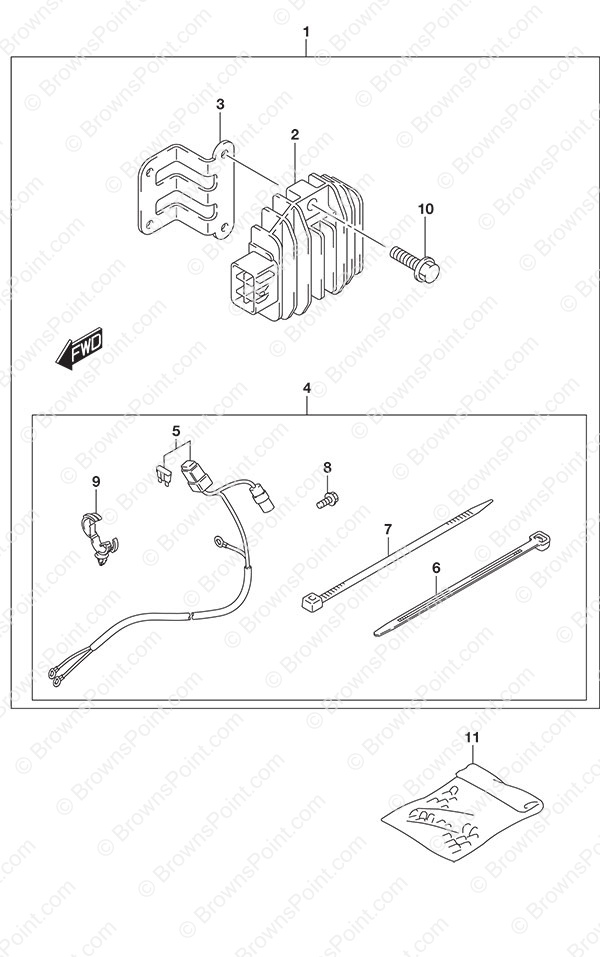

Fig. 553 - Opt: Electrical Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32000-94L02 Battery Charging Kit
SKU: 32000-94L02 Weight: 5.000000 Brand: Price: $ 272.19 |
Battery Charging Kit | 1 | $ 272.19 | ||
| 2 | 32800-88L01 Rectifier/Regulator Assembly
SKU: 32800-88L01 Weight: 1.000000 Brand: Price: $ 159.97 |
Rectifier/Regulator Assembly | 1 | $ 159.97 | ||
| 3 | 32815-94L00 Rectifier Bracket
SKU: 32815-94L00 Weight: 0.250000 Brand: Price: $ 21.75 |
Rectifier Bracket | 1 | $ 21.75 | ||
| 4 | 39600-94L00 Receptacle Set
SKU: 39600-94L00 Weight: 0.500000 Brand: Price: $ 125.97 |
Receptacle Set | 1 | $ 125.97 | ||
| 5 | 36740-94L00 Fuse Case Assembly
SKU: 36740-94L00 Weight: 0.200000 Brand: Price: $ 121.59 |
Fuse Case Assembly | 1 | $ 121.59 | ||
| 6 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | ||
| 7 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 3 | $ 3.09 | ||
| 8 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 9 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 36990-87D00 Terminal & Sleeve Set
SKU: 36990-87D00 Weight: 0.100000 Brand: Price: $ 18.47 |
Terminal & Sleeve Set | 1 | $ 18.47 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
