Suzuki DF 25A Parts Listings - 2016
S/N 02504F-610001 to 02504F-61XXXX

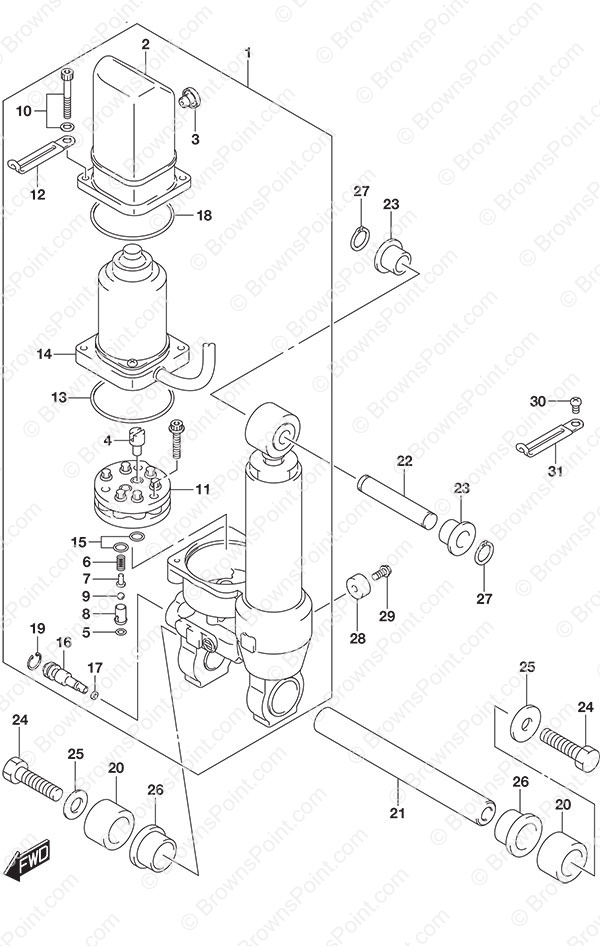

Fig. 338 - Tilt Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48000-94L01 Power Trim Assembly
SKU: 48000-94L01 Weight: 10.000000 Brand: Price: $ 1,983.41 |
Power Trim Assembly | 1 | $ 1,983.41 | ||
| 2 | 48571-89J01 Reservoir
SKU: 48571-89J01 Weight: 0.500000 Brand: Price: $ 174.65 |
Reservoir | 1 | $ 174.65 | ||
| 3 | 48572-89J01 Plug
SKU: 48572-89J01 Weight: 0.060000 Brand: Price: $ 18.79 |
Plug | 1 | $ 18.79 | ||
| 4 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.60 |
Drive Joint | 1 | $ 11.60 | ||
| 5 | 48818-97E00 O-Ring (NLA)
SKU: 48818-97E00 Weight: 0.100000 Brand: Price: $ 3.66 |
O-Ring (NLA) | 1 | $ 3.66 | ||
| 6 | 48823-89J00 Pressure Valve Spring (NLA)
SKU: 48823-89J00 Weight: 0.100000 Brand: Price: $ 4.67 |
Pressure Valve Spring (NLA) | 1 | $ 4.67 | ||
| 7 | 48832-89J00 Pressure Valve
SKU: 48832-89J00 Weight: 0.100000 Brand: Price: $ 46.61 |
Pressure Valve | 1 | $ 46.61 | ||
| 8 | 48834-89J00 Valve Sheet
SKU: 48834-89J00 Weight: 0.100000 Brand: Price: $ 47.29 |
Valve Sheet | 1 | $ 47.29 | ||
| 9 | 48842-89J00 Pressure Valve Ball (NLA)
SKU: 48842-89J00 Weight: 0.100000 Brand: Price: $ 2.41 |
Pressure Valve Ball (NLA) | 1 | $ 2.41 | ||
| 10 | 48861-89J01 Reservoir Bolt
SKU: 48861-89J01 Weight: 0.125000 Brand: Price: $ 7.16 |
Reservoir Bolt | 2 | $ 7.16 | ||
| 11 | 48510-89J00 Pump Assembly (NLA)
SKU: 48510-89J00 Weight: 0.100000 Brand: Price: $ 306.76 |
Pump Assembly (NLA) | 1 | $ 306.76 | ||
| 12 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.62 |
Clamp (L:65) | 1 | $ 1.62 | ||
| 13 | 31123-89J10 O-Ring
SKU: 31123-89J10 Weight: 0.100000 Brand: Price: $ 15.01 |
O-Ring | 1 | $ 15.01 | ||
| 14 | 38100-94L02 PTT Motor Assembly
SKU: 38100-94L02 Weight: 5.000000 Brand: Price: $ 674.49 |
PTT Motor Assembly | 1 | $ 674.49 | ||
| 15 | 48518-87D00 O-Ring
SKU: 48518-87D00 Weight: 0.060000 Brand: Price: $ 2.29 |
O-Ring | 1 | $ 2.29 | ||
| 16 | 48551-89J00 Manual Valve
SKU: 48551-89J00 Weight: 0.200000 Brand: Price: $ 111.89 |
Manual Valve | 1 | $ 111.89 | ||
| 17 | 48553-97E00 Seal Washer
SKU: 48553-97E00 Weight: 0.060000 Brand: Price: $ 8.50 |
Seal Washer | 1 | $ 8.50 | ||
| 18 | 48585-89J00 Reservoir O-Ring
SKU: 48585-89J00 Weight: 0.060000 Brand: Price: $ 4.80 |
Reservoir O-Ring | 1 | $ 4.80 | ||
| 19 | 48681-87J11 Circlip
SKU: 48681-87J11 Weight: 0.100000 Brand: Price: $ 9.80 |
Circlip | 1 | $ 9.80 | ||
| 20 | 47226-94L00 Tilt Cylnder Lower Collar
SKU: 47226-94L00 Weight: 0.200000 Brand: Price: $ 5.74 |
Tilt Cylnder Lower Collar | 2 | $ 5.74 | ||
| 21 | 48121-94LA0 Tilt Cylinder Lower Shaft
SKU: 48121-94LA0 Weight: 0.500000 Brand: Price: $ 46.29 |
Tilt Cylinder Lower Shaft | 1 | $ 46.29 | ||
| 22 | 48321-94L00 Tilt Cylinder Upper Shaft
SKU: 48321-94L00 Weight: 0.500000 Brand: Price: $ 13.31 |
Tilt Cylinder Upper Shaft | 1 | $ 13.31 | ||
| 23 | 48325-94L00 Tilt Cylinder Upper Bushing
SKU: 48325-94L00 Weight: 0.200000 Brand: Price: $ 5.74 |
Tilt Cylinder Upper Bushing | 2 | $ 5.74 | ||
| 24 | 09100-10323 Bolt (10x35)
SKU: 09100-10323 Weight: 0.250000 Brand: Price: $ 12.22 |
Bolt (10x35) | 2 | $ 12.22 | ||
| 25 | 09160-10158 Washer
SKU: 09160-10158 Weight: 0.125000 Brand: Price: $ 5.20 |
Washer | 2 | $ 5.20 | ||
| 26 | 48326-94L00 Tilt Cylinder Lower Bushing
SKU: 48326-94L00 Weight: 0.125000 Brand: Price: $ 5.74 |
Tilt Cylinder Lower Bushing | 2 | $ 5.74 | ||
| 27 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.57 |
Snap Ring | 2 | $ 1.57 | ||
| 28 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.62 |
Aluminum Anode | 1 | $ 7.62 | ||
| 29 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 3.15 |
Bolt (6x14) | 1 | $ 3.15 | ||
| 30 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 2.07 |
Screw (6x10) | 1 | $ 2.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
