Suzuki DF 25A Parts Listings - 2016
S/N 02504F-610001 to 02504F-61XXXX

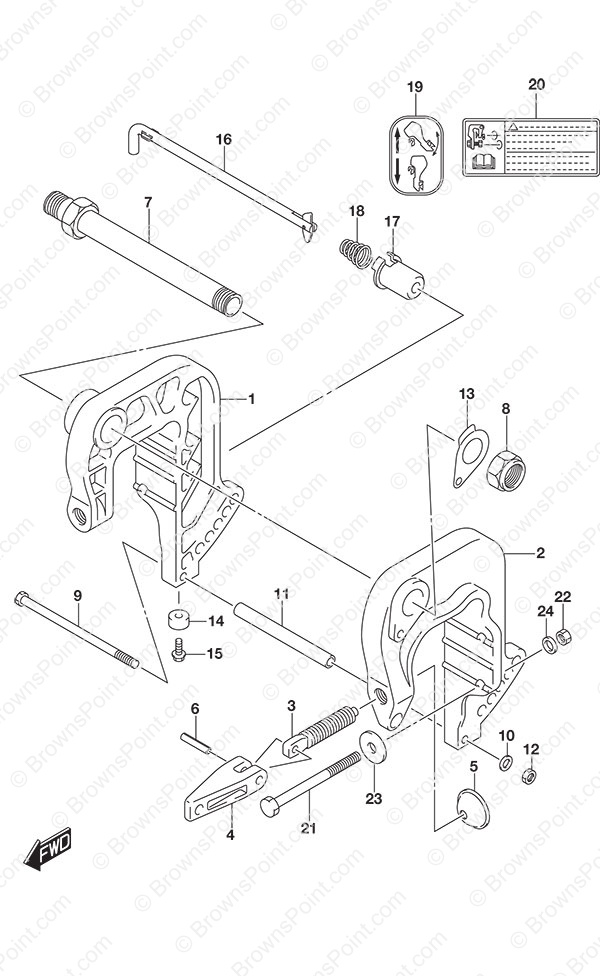

Fig. 335A - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-94L00-0EP Starboard Clamp Bracket
SKU: 41111-94L00-0EP Weight: 3.000000 Brand: Price: $ 113.94 |
Starboard Clamp Bracket | 1 | $ 113.94 | ||
| 2 | 41121-94L00-0EP Port Clamp Bracket
SKU: 41121-94L00-0EP Weight: 3.000000 Brand: Price: $ 113.94 |
Port Clamp Bracket | 1 | $ 113.94 | ||
| 3 | 41211-94L00 Clamp Screw
SKU: 41211-94L00 Weight: 0.250000 Brand: Price: $ 10.92 |
Clamp Screw | 2 | $ 10.92 | ||
| 4 | 41212-91J00 Clamp Handle
SKU: 41212-91J00 Weight: 0.080000 Brand: Price: $ 15.22 |
Clamp Handle | 2 | $ 15.22 | ||
| 5 | 41213-94J01 Clamp Plate
SKU: 41213-94J01 Weight: 0.060000 Brand: Price: $ 3.70 |
Clamp Plate | 2 | $ 3.70 | ||
| 6 | 09205-06021 Spring Pin (6x25)
SKU: 09205-06021 Weight: 0.062500 Brand: Price: $ 2.03 |
Spring Pin (6x25) | 2 | $ 2.03 | ||
| 7 | 41130-91L01 Clamp Bracket Shaft
SKU: 41130-91L01 Weight: 2.000000 Brand: Price: $ 165.37 |
Clamp Bracket Shaft | 1 | $ 165.37 | ||
| 8 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 9 | 09100-06165 Bolt (6x180) (NLA)
SKU: 09100-06165 Weight: 1.000000 Brand: Price: $ 7.10 |
Bolt (6x180) (NLA) | 1 | $ 7.10 | ||
| 10 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 11 | 09180-06342 Spacer (NLA)
SKU: 09180-06342 Weight: 0.100000 Brand: Price: $ 13.92 |
Spacer (NLA) | 1 | $ 13.92 | ||
| 12 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 13 | 41135-93J11 Clamp Bracket Shaft Washer
SKU: 41135-93J11 Weight: 0.100000 Brand: Price: $ 4.86 |
Clamp Bracket Shaft Washer | 1 | $ 4.86 | ||
| 14-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 14-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only | |
| 15 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 16 | 45420-94L00 Tilt Lock Pin
SKU: 45420-94L00 Weight: 0.250000 Brand: Price: $ 39.70 |
Tilt Lock Pin | 1 | $ 39.70 | ||
| 17 | 45425-94J01 Tilt Lock Pin Stopper
SKU: 45425-94J01 Weight: 0.060000 Brand: Price: $ 1.72 |
Tilt Lock Pin Stopper | 1 | $ 1.72 | ||
| 18 | 59442-94L00 Spring
SKU: 59442-94L00 Weight: 0.125000 Brand: Price: $ 1.80 |
Spring | 1 | $ 1.80 | ||
| 19 | 45269-89L00 Reverse Lock Mark (NLA)
SKU: 45269-89L00 Weight: 0.250000 Brand: Price: $ 4.17 |
Reverse Lock Mark (NLA) | 1 | $ 4.17 | ||
| 20 | 69911-91J20 Clamp Bracket Mark (NLA)
SKU: 69911-91J20 Weight: 0.060000 Brand: Price: $ 5.01 |
Clamp Bracket Mark (NLA) | 1 | $ 5.01 | ||
| 21 | 09100-10309 Transom Bolt (10x110) (NLA)
SKU: 09100-10309 Weight: 0.250000 Brand: Price: $ 11.30 |
Transom Bolt (10x110) (NLA) | 2 | $ 11.30 | ||
| 22 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 23 | 09160-10139 Washer (10.5x35x3) (NLA)
SKU: 09160-10139 Weight: 0.100000 Brand: Price: $ 3.56 |
Washer (10.5x35x3) (NLA) | 2 | $ 3.56 | ||
| 24 | 09160-10140 Washer (10.5x18x3)
SKU: 09160-10140 Weight: 0.100000 Brand: Price: $ 2.72 |
Washer (10.5x18x3) | 2 | $ 2.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
