Suzuki DF 25A Parts Listings - 2016
S/N 02504F-610001 to 02504F-61XXXX

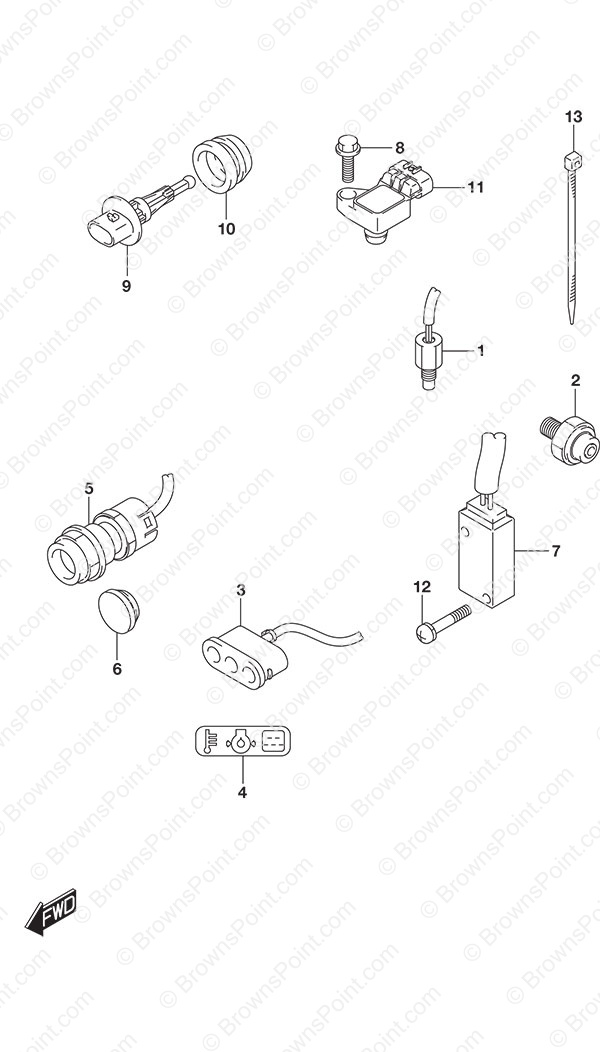

Fig. 334A - Sensor/Switch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13640-32G20 Engine Temp Sensor
SKU: 13640-32G20 Weight: 0.250000 Brand: Price: $ 57.70 |
Engine Temp Sensor | 1 | $ 57.70 | ||
| 2 | 37820-80002 Oil Pressure Switch Assembly
SKU: 37820-80002 Weight: 0.250000 Brand: Price: $ 21.02 |
Oil Pressure Switch Assembly | 1 | $ 21.02 | ||
| 3 | 36360-94L00 Warning Indicator
SKU: 36360-94L00 Weight: 0.200000 Brand: Price: $ 49.64 |
Warning Indicator | 1 | $ 49.64 | ||
| 4 | 36367-89L00 Warning Label
SKU: 36367-89L00 Weight: 0.060000 Brand: Price: $ 3.34 |
Warning Label | 1 | $ 3.34 | ||
| 5 | 37161-89L02 Starter Motor Switch Assembly
SKU: 37161-89L02 Weight: 0.250000 Brand: Price: $ 27.20 |
Starter Motor Switch Assembly | 1 | $ 27.20 | w/Electric Starter | |
| 6 | 37163-89L00 Starting Switch Hole Plug
SKU: 37163-89L00 Weight: 0.250000 Brand: Price: $ 4.14 |
Starting Switch Hole Plug | 1 | $ 4.14 | w/Manual Starter | |
| 7 | 37721-94L00 Neutral Switch Assembly
SKU: 37721-94L00 Weight: 0.200000 Brand: Price: $ 43.58 |
Neutral Switch Assembly | 1 | $ 43.58 | ||
| 8 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 9 | 13650-52G00 Inlet Air Temp Sensor
SKU: 13650-52G00 Weight: 0.060000 Brand: Price: $ 113.36 |
Inlet Air Temp Sensor | 1 | $ 113.36 | ||
| 10 | 13655-87J01 Air Temp Sensor Grommet
SKU: 13655-87J01 Weight: 0.125000 Brand: Price: $ 2.91 |
Air Temp Sensor Grommet | 1 | $ 2.91 | ||
| 11 | 18590-58M00 MAP Sensor
SKU: 18590-58M00 Weight: 0.250000 Brand: Price: $ 228.67 |
MAP Sensor | 1 | $ 228.67 | ||
| 12 | 09137-03008 Screw (3x18)
SKU: 09137-03008 Weight: 0.125000 Brand: Price: $ 2.11 |
Screw (3x18) | 2 | $ 2.11 | ||
| 13 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
