Suzuki DF 25A Parts Listings - 2016
S/N 02504F-610001 to 02504F-61XXXX

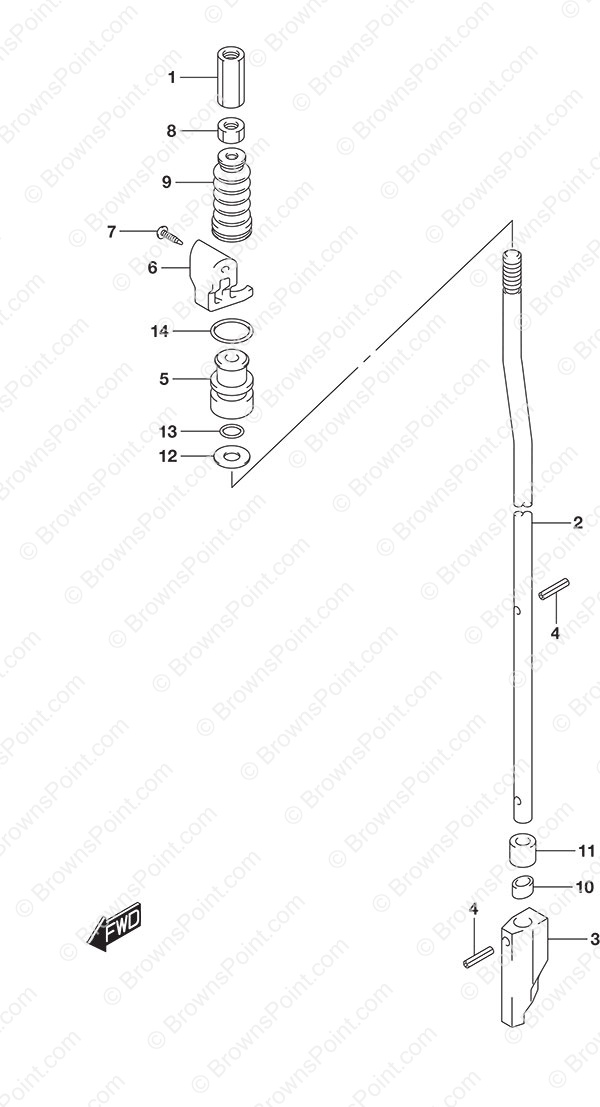

Fig. 210 - Shift Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 23311-95J00 Clutch Rod Connector
SKU: 23311-95J00 Weight: 0.060000 Brand: Price: $ 7.09 |
Clutch Rod Connector | 1 | $ 7.09 | ||
| 2 | 25111-94L00 Shift Rod
SKU: 25111-94L00 Weight: 0.500000 Brand: Price: $ 11.83 |
Shift Rod | 1 | $ 11.83 | ||
| 3 | 25311-94L00 Shift Cam
SKU: 25311-94L00 Weight: 0.250000 Brand: Price: $ 19.77 |
Shift Cam | 1 | $ 19.77 | ||
| 4 | 09205-02004 Spring Pin (2.5x12)
SKU: 09205-02004 Weight: 0.060000 Brand: Price: $ 0.92 |
Spring Pin (2.5x12) | 2 | $ 0.92 | ||
| 5 | 25211-94L00 Shift Rod Guide
SKU: 25211-94L00 Weight: 0.250000 Brand: Price: $ 9.74 |
Shift Rod Guide | 1 | $ 9.74 | ||
| 6 | 25215-94L00 Shift Rod Guide Stopper
SKU: 25215-94L00 Weight: 0.250000 Brand: Price: $ 6.46 |
Shift Rod Guide Stopper | 1 | $ 6.46 | ||
| 7 | 03142-0416C Screw
SKU: 03142-0416C Weight: 0.125000 Brand: Price: $ 0.00 |
Screw | 2 | $ 0.00 | ||
| 8 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 | ||
| 9 | 25222-94L00 Shift Rod Boot
SKU: 25222-94L00 Weight: 0.200000 Brand: Price: $ 12.64 |
Shift Rod Boot | 1 | $ 12.64 | ||
| 10 | 25231-96301 Magnet Spacer (NLA)
SKU: 25231-96301 Weight: 0.100000 Brand: Price: $ 1.19 |
Magnet Spacer (NLA) | 1 | $ 1.19 | ||
| 11 | 25232-96302 Gear Case Magnet
SKU: 25232-96302 Weight: 0.060000 Brand: Price: $ 5.83 |
Gear Case Magnet | 1 | $ 5.83 | ||
| 12 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 13 | 09280-06012 O-Ring
SKU: 09280-06012 Weight: 0.062500 Brand: Price: $ 2.18 |
O-Ring | 1 | $ 2.18 | ||
| 14 | 09280-13005 O-Ring
SKU: 09280-13005 Weight: 0.060000 Brand: Price: $ 1.86 |
O-Ring | 1 | $ 1.86 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
