Suzuki DF 25A Parts Listings - 2016
S/N 02504F-610001 to 02504F-61XXXX

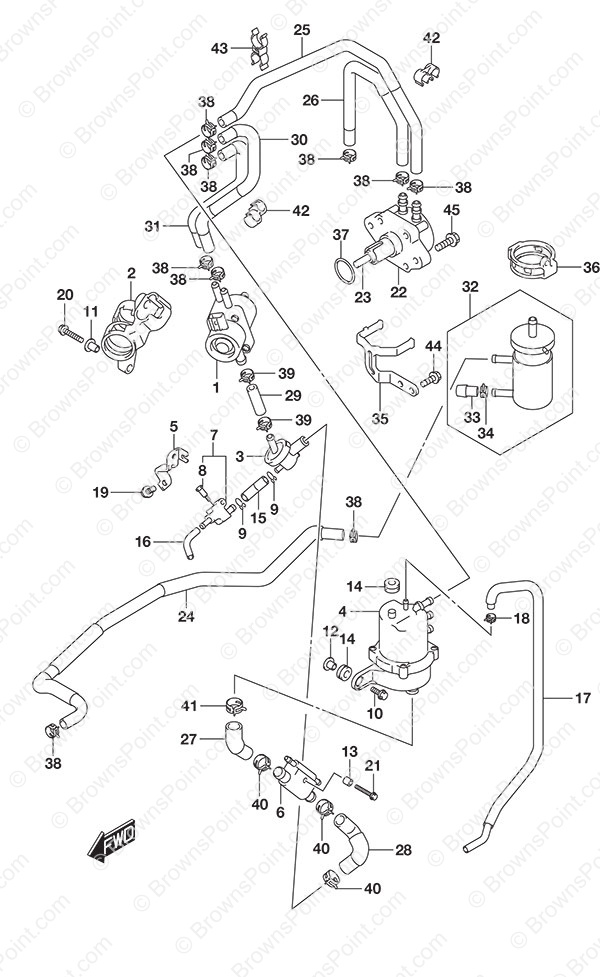

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15200-94L11 Fuel Pump Assembly
SKU: 15200-94L11 Weight: 0.500000 Brand: Price: $ 376.10 |
Fuel Pump Assembly | 1 | $ 376.10 | High Pressure | |
| 2 | 15217-94L00 Fuel Pump Cushion
SKU: 15217-94L00 Weight: 0.125000 Brand: Price: $ 17.00 |
Fuel Pump Cushion | 1 | $ 17.00 | ||
| 3 | 15410-94L00 Fuel Filter
SKU: 15410-94L00 Weight: 0.060000 Brand: Price: $ 22.20 |
Fuel Filter | 1 | $ 22.20 | ||
| 4 | 15600-94L00 Fuel Vapor Separator Assembly
SKU: 15600-94L00 Weight: 1.000000 Brand: Price: $ 220.42 |
Fuel Vapor Separator Assembly | 1 | $ 220.42 | ||
| 5 | 15674-94L00 Fuel Drain Bracket
SKU: 15674-94L00 Weight: 0.250000 Brand: Price: $ 9.97 |
Fuel Drain Bracket | 1 | $ 9.97 | ||
| 6 | 15770-94L00 Fuel Cooler
SKU: 15770-94L00 Weight: 0.250000 Brand: Price: $ 48.24 |
Fuel Cooler | 1 | $ 48.24 | ||
| 7 | 15820-94L01 Drain Body
SKU: 15820-94L01 Weight: 0.250000 Brand: Price: $ 29.46 |
Drain Body | 1 | $ 29.46 | ||
| 8 | 15629-89L00 Fuel Drain Screw
SKU: 15629-89L00 Weight: 0.250000 Brand: Price: $ 6.33 |
Fuel Drain Screw | 1 | $ 6.33 | ||
| 9 | 59412-91J00 Fuel Hose Clip
SKU: 59412-91J00 Weight: 0.060000 Brand: Price: $ 2.34 |
Fuel Hose Clip | 2 | $ 2.34 | ||
| 10 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 2 | $ 3.54 | ||
| 11 | 09169-06075 Washer
SKU: 09169-06075 Weight: 0.200000 Brand: Price: $ 3.19 |
Washer | 1 | $ 3.19 | ||
| 12 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 13 | 09180-06230 Spacer (6.2x12.6x12.5)
SKU: 09180-06230 Weight: 0.060000 Brand: Price: $ 6.41 |
Spacer (6.2x12.6x12.5) | 1 | $ 6.41 | ||
| 14 | 09320-09052 Cushion
SKU: 09320-09052 Weight: 0.250000 Brand: Price: $ 1.91 |
Cushion | 3 | $ 1.91 | ||
| 15 | 09343-50L01-040 Hose (5x10x40)
SKU: 09343-50L01-040 Weight: 0.250000 Brand: Price: $ 3.19 |
Hose (5x10x40) | 1 | $ 3.19 | ||
| 16 | 09351-50807-070 Hose
SKU: 09351-50807-070 Weight: 0.125000 Brand: Price: $ 1.77 |
Hose | 1 | $ 1.77 | ||
| 17 | 15662-94L00 Evaporation Hose
SKU: 15662-94L00 Weight: 0.250000 Brand: Price: $ 9.74 |
Evaporation Hose | 1 | $ 9.74 | ||
| 18 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 19 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 20 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 21 | 01550-06457 BOLT
SKU: 01550-06457 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 22 | 15100-94L00 Replaced by 15100-94L01
SKU: 15100-94L00 Weight: 0.500000 Brand: Price: $ 121.26 |
Replaced by 15100-94L01 | 1 | $ 121.26 | Low Pressure | |
| 23 | 15131-94L00 Fuel Pump Rod
SKU: 15131-94L00 Weight: 0.200000 Brand: Price: $ 2.78 |
Fuel Pump Rod | 1 | $ 2.78 | ||
| 24 | 15191-94L00 Fuel Hose
SKU: 15191-94L00 Weight: 0.250000 Brand: Price: $ 48.48 |
Fuel Hose | 1 | $ 48.48 | Connector to Filter | |
| 25 | 15192-94L00 Fuel Hose
SKU: 15192-94L00 Weight: 0.250000 Brand: Price: $ 37.01 |
Fuel Hose | 1 | $ 37.01 | Pump to Separator | |
| 26 | 15193-94L00 Fuel Hose
SKU: 15193-94L00 Weight: 0.250000 Brand: Price: $ 20.90 |
Fuel Hose | 1 | $ 20.90 | Filter to Pump | |
| 27 | 15194-94L00 Fuel Hose
SKU: 15194-94L00 Weight: 0.250000 Brand: Price: $ 12.06 |
Fuel Hose | 1 | $ 12.06 | Separator to Cooler | |
| 28 | 15194-94L10 Fuel Hose
SKU: 15194-94L10 Weight: 0.250000 Brand: Price: $ 19.44 |
Fuel Hose | 1 | $ 19.44 | Cooler to 3 Way | |
| 29 | 15194-94L20 Fuel Hose
SKU: 15194-94L20 Weight: 0.250000 Brand: Price: $ 4.32 |
Fuel Hose | 1 | $ 4.32 | 3 Way to Pump | |
| 30 | 15194-94L30 Fuel Hose
SKU: 15194-94L30 Weight: 0.250000 Brand: Price: $ 18.57 |
Fuel Hose | 1 | $ 18.57 | Pump to Separator | |
| 31 | 15194-94L40 Fuel Hose
SKU: 15194-94L40 Weight: 0.250000 Brand: Price: $ 16.36 |
Fuel Hose | 1 | $ 16.36 | Pump to Separator | |
| 32 | 15410-87L00 Fuel Filter
SKU: 15410-87L00 Weight: 0.100000 Brand: Price: $ 17.76 |
Fuel Filter | 1 | $ 17.76 | ||
| 33 | 15419-87J00 Fuel Filter Cap
SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.40 |
Fuel Filter Cap | 1 | $ 7.40 | ||
| 34 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 35 | 15421-94L00 Fuel Filter Bracket
SKU: 15421-94L00 Weight: 0.250000 Brand: Price: $ 17.14 |
Fuel Filter Bracket | 1 | $ 17.14 | ||
| 36 | 15422-94L00 Fuel Filter Clamp
SKU: 15422-94L00 Weight: 0.250000 Brand: Price: $ 6.76 |
Fuel Filter Clamp | 1 | $ 6.76 | ||
| 37 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 38 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 10 | $ 2.09 | ||
| 39 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 2 | $ 1.58 | ||
| 40 | 09401-18414 Clip
SKU: 09401-18414 Weight: 0.062500 Brand: Price: $ 2.97 |
Clip | 3 | $ 2.97 | ||
| 41 | 09401-20410 Clip
SKU: 09401-20410 Weight: 0.062500 Brand: Price: $ 3.26 |
Clip | 1 | $ 3.26 | ||
| 42 | 09408-00043 Clamp
SKU: 09408-00043 Weight: 0.250000 Brand: Price: $ 0.00 |
Clamp | 2 | $ 0.00 | ||
| 43 | 09408-00233 Clamp (NLA)
SKU: 09408-00233 Weight: 0.100000 Brand: Price: $ 2.80 |
Clamp (NLA) | 1 | $ 2.80 | ||
| 44 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 45 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
