Suzuki DF 250AP Parts Listings - 2016
S/N 25003P-610001 to 25003P-61XXXX

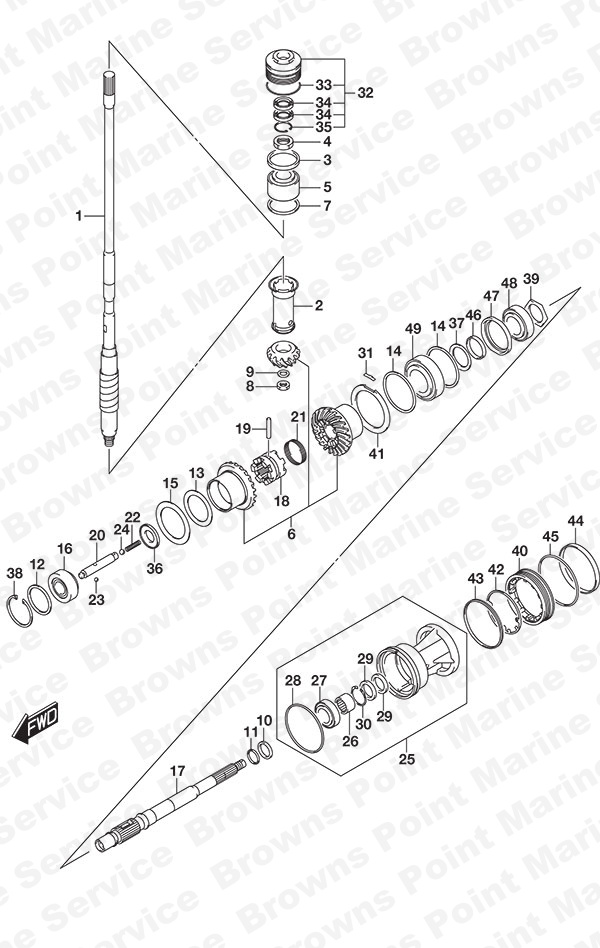

Fig. 220B - Transmission S/N 610592 to 61XXXX
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-93L12 Drive Shaft (X)
SKU: 57110-93L12 Weight: 20.000000 Brand: Price: $ 830.71 |
Drive Shaft (X) | 1 | $ 830.71 | w/Transom (X) | |
| 1-2 | 57110-93L22 Drive Shaft (XX)
SKU: 57110-93L22 Weight: 20.000000 Brand: Price: $ 889.19 |
Drive Shaft (XX) | 1 | $ 889.19 | w/Transom (XX) | |
| 2 | 57133-93L00 Drive Shaft Collar
SKU: 57133-93L00 Weight: 0.250000 Brand: Price: $ 10.73 |
Drive Shaft Collar | 1 | $ 10.73 | ||
| 3 | 57134-93J00 Drive Shaft Bearing Spacer
SKU: 57134-93J00 Weight: 0.250000 Brand: Price: $ 25.91 |
Drive Shaft Bearing Spacer | 1 | $ 25.91 | ||
| 4 | 09159-28003 Drive Shaft Bearing Nut
SKU: 09159-28003 Weight: 0.100000 Brand: Price: $ 44.52 |
Drive Shaft Bearing Nut | 1 | $ 44.52 | ||
| 5 | 09269-32002 Bearing (32x66x49)
SKU: 09269-32002 Weight: 0.500000 Brand: Price: $ 205.05 |
Bearing (32x66x49) | 1 | $ 205.05 | ||
| 6 | 57300-93L20 Pinion & Gear Set
SKU: 57300-93L20 Weight: 5.000000 Brand: Price: $ 1,566.49 |
Pinion & Gear Set | 1 | $ 1,566.49 | ||
| 7-1 | 09181-60004 Shim (0.45)
SKU: 09181-60004 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.45) | 1 | $ 4.85 | ||
| 7-2 | 09181-60005 Shim (0.50)
SKU: 09181-60005 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.50) | 1 | $ 4.85 | ||
| 7-3 | 09181-60006 Shim (0.55)
SKU: 09181-60006 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.55) | 1 | $ 4.85 | ||
| 7-4 | 09181-60007 Shim (0.60)
SKU: 09181-60007 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.60) | 1 | $ 4.85 | ||
| 7-5 | 09181-60008 Shim (0.65)
SKU: 09181-60008 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.65) | 1 | $ 4.85 | ||
| 7-6 | 09181-60009 Shim (0.70)
SKU: 09181-60009 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.70) | 1 | $ 4.85 | ||
| 7-7 | 09181-60010 Shim (0.75)
SKU: 09181-60010 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.75) | 1 | $ 4.85 | ||
| 7-8 | 09181-60011 Shim (0.80)
SKU: 09181-60011 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.80) | 1 | $ 4.85 | ||
| 7-9 | 09181-60012 Shim (0.85)
SKU: 09181-60012 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.85) | 1 | $ 4.85 | ||
| 7-10 | 09181-60013 Shim (0.90)
SKU: 09181-60013 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.90) | 1 | $ 4.85 | ||
| 8 | 09140-16026 Nut 16mm
SKU: 09140-16026 Weight: 0.060000 Brand: Price: $ 5.16 |
Nut 16mm | 1 | $ 5.16 | ||
| 9 | 08221-16256 Washer
SKU: 08221-16256 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer | 1 | $ 1.91 | ||
| 10 | 09180-32006 Spacer (32.4x40x3)
SKU: 09180-32006 Weight: 0.060000 Brand: Price: $ 10.41 |
Spacer (32.4x40x3) | 1 | $ 10.41 | Rear Gear | |
| 11-1 | 09181-32035 Shim (0.50)
SKU: 09181-32035 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.50) | 1 | $ 4.18 | Rear Gear | |
| 11-2 | 09181-32036 Shim (0.55)
SKU: 09181-32036 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.55) | 1 | $ 4.18 | Rear Gear | |
| 11-3 | 09181-32037 Shim (0.60)
SKU: 09181-32037 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.60) | 1 | $ 4.18 | Rear Gear | |
| 11-4 | 09181-32038 Shim (0.65)
SKU: 09181-32038 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.65) | 1 | $ 4.18 | Rear Gear | |
| 11-5 | 09181-32039 Shim (0.70)
SKU: 09181-32039 Weight: 0.100000 Brand: Price: $ 4.18 |
Shim (0.70) | 1 | $ 4.18 | Rear Gear | |
| 11-6 | 09181-32040 Shim (0.75)
SKU: 09181-32040 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.75) | 1 | $ 4.08 | Rear Gear | |
| 11-7 | 09181-32041 Shim (0.80)
SKU: 09181-32041 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.80) | 1 | $ 4.08 | Rear Gear | |
| 11-8 | 09181-32042 Shim (0.85)
SKU: 09181-32042 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.85) | 1 | $ 4.08 | Rear Gear | |
| 11-9 | 09181-32043 Shim (0.90)
SKU: 09181-32043 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.90) | 1 | $ 4.08 | Rear Gear | |
| 11-10 | 09181-32044 Shim (0.95)
SKU: 09181-32044 Weight: 0.100000 Brand: Price: $ 4.08 |
Shim (0.95) | 1 | $ 4.08 | Rear Gear | |
| 12 | 09160-60012 Washer (60x72x3)
SKU: 09160-60012 Weight: 0.100000 Brand: Price: $ 9.16 |
Washer (60x72x3) | 1 | $ 9.16 | Front Gear | |
| 13 | 09263-80002 Bearing (80x105x4)
SKU: 09263-80002 Weight: 0.250000 Brand: Price: $ 105.45 |
Bearing (80x105x4) | 1 | $ 105.45 | Front Gear | |
| 14-1 | 09181-93101 Shim (0.50)
SKU: 09181-93101 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.50) | 2 | $ 9.20 | Rear Gear | |
| 14-2 | 09181-93102 Shim (0.55)
SKU: 09181-93102 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.55) | 2 | $ 9.20 | Rear Gear | |
| 14-3 | 09181-93103 Shim (0.60)
SKU: 09181-93103 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.60) | 2 | $ 9.20 | Rear Gear | |
| 14-4 | 09181-93104 Shim (0.65)
SKU: 09181-93104 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.65) | 2 | $ 9.20 | Rear Gear | |
| 14-5 | 09181-93105 Shim (0.70)
SKU: 09181-93105 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.70) | 2 | $ 9.20 | Rear Gear | |
| 14-6 | 09181-93106 Shim (0.75)
SKU: 09181-93106 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.75) | 2 | $ 9.20 | Rear Gear | |
| 14-7 | 09181-93107 Shim (0.80)
SKU: 09181-93107 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.80) | 2 | $ 9.20 | Rear Gear | |
| 14-8 | 09181-93108 Shim (0.85)
SKU: 09181-93108 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.85) | 2 | $ 9.20 | Rear Gear | |
| 14-9 | 09181-93109 Shim (0.90)
SKU: 09181-93109 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.90) | 2 | $ 9.20 | Rear Gear | |
| 14-10 | 09181-93110 Shim (0.95)
SKU: 09181-93110 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (0.95) | 2 | $ 9.20 | Rear Gear | |
| 14-11 | 09181-93111 Shim (1.00)
SKU: 09181-93111 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (1.00) | 2 | $ 9.20 | Rear Gear | |
| 14-12 | 09181-93112 Shim (1.05)
SKU: 09181-93112 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (1.05) | 2 | $ 9.20 | Rear Gear | |
| 14-13 | 09181-93113 Shim (1.10)
SKU: 09181-93113 Weight: 0.060000 Brand: Price: $ 9.20 |
Shim (1.10) | 2 | $ 9.20 | Rear Gear | |
| 15-1 | 59171-93L00 Shim (3.50)
SKU: 59171-93L00 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.50) | 1 | $ 139.72 | Front Gear | |
| 15-2 | 59171-93L10 Shim (3.55)
SKU: 59171-93L10 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.55) | 1 | $ 139.72 | Front Gear | |
| 15-3 | 59171-93L20 Shim (3.60)
SKU: 59171-93L20 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.60) | 1 | $ 139.72 | Front Gear | |
| 15-4 | 59171-93L30 Shim (3.65)
SKU: 59171-93L30 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.65) | 1 | $ 139.72 | Front Gear | |
| 15-5 | 59171-93L40 Shim (3.70)
SKU: 59171-93L40 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.70) | 1 | $ 139.72 | Front Gear | |
| 15-6 | 59171-93L50 Shim (3.75)
SKU: 59171-93L50 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.75) | 1 | $ 139.72 | Front Gear | |
| 15-7 | 59171-93L60 Shim (3.80)
SKU: 59171-93L60 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.80) | 1 | $ 139.72 | Front Gear | |
| 15-8 | 59171-93L70 Shim (3.85)
SKU: 59171-93L70 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.85) | 1 | $ 139.72 | Front Gear | |
| 15-9 | 59171-93L80 Shim (3.90)
SKU: 59171-93L80 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.90) | 1 | $ 139.72 | Front Gear | |
| 15-10 | 59171-93L90 Shim (3.95)
SKU: 59171-93L90 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (3.95) | 1 | $ 139.72 | Front Gear | |
| 15-11 | 59171-93LA0 Shim (4.00)
SKU: 59171-93LA0 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (4.00) | 1 | $ 139.72 | Front Gear | |
| 15-12 | 59171-93LB0 Shim (4.05)
SKU: 59171-93LB0 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (4.05) | 1 | $ 139.72 | Front Gear | |
| 15-13 | 59171-93LC0 Shim (4.10)
SKU: 59171-93LC0 Weight: 0.125000 Brand: Price: $ 139.72 |
Shim (4.10) | 1 | $ 139.72 | Front Gear | |
| 16 | 09265-30033 Bearing (30x72x28.75)
SKU: 09265-30033 Weight: 0.500000 Brand: Price: $ 64.31 |
Bearing (30x72x28.75) | 1 | $ 64.31 | ||
| 17 | 57610-93L10 Propeller Shaft Assembly
SKU: 57610-93L10 Weight: 5.000000 Brand: Price: $ 501.82 |
Propeller Shaft Assembly | 1 | $ 501.82 | ||
| 18 | 57621-93L00 Clutch Dog Shifter
SKU: 57621-93L00 Weight: 1.000000 Brand: Price: $ 372.51 |
Clutch Dog Shifter | 1 | $ 372.51 | ||
| 19 | 09202-08013 Clutch Dog Shifter Pin
SKU: 09202-08013 Weight: 0.250000 Brand: Price: $ 11.25 |
Clutch Dog Shifter Pin | 1 | $ 11.25 | ||
| 20 | 57631-93L01 Connector Pin
SKU: 57631-93L01 Weight: 0.250000 Brand: Price: $ 48.34 |
Connector Pin | 1 | $ 48.34 | ||
| 21 | 09440-58001 Clutch Dog Spring
SKU: 09440-58001 Weight: 0.250000 Brand: Price: $ 5.56 |
Clutch Dog Spring | 1 | $ 5.56 | ||
| 22 | 57617-93L00 Detent Spring
SKU: 57617-93L00 Weight: 0.250000 Brand: Price: $ 3.21 |
Detent Spring | 1 | $ 3.21 | ||
| 23 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | Detent No. 1 | |
| 24 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | Detent No. 2 | |
| 25 | 56120-93L20 Propeller Shaft Bearing Housing
SKU: 56120-93L20 Weight: 4.000000 Brand: Price: $ 569.06 |
Propeller Shaft Bearing Housing | 1 | $ 569.06 | ||
| 26 | 09263-30063 Bearing (30x40x25)
SKU: 09263-30063 Weight: 0.200000 Brand: Price: $ 43.67 |
Bearing (30x40x25) | 1 | $ 43.67 | ||
| 27 | 09265-32003 Bearing (32x58x17)
SKU: 09265-32003 Weight: 0.250000 Brand: Price: $ 47.65 |
Bearing (32x58x17) | 1 | $ 47.65 | ||
| 28 | 09280-00047 O-Ring
SKU: 09280-00047 Weight: 0.060000 Brand: Price: $ 8.54 |
O-Ring | 1 | $ 8.54 | ||
| 29 | 09282-30006 Oil Seal (30x45x6)
SKU: 09282-30006 Weight: 0.060000 Brand: Price: $ 5.72 |
Oil Seal (30x45x6) | 2 | $ 5.72 | ||
| 30 | 09381-40003 Circlip
SKU: 09381-40003 Weight: 0.060000 Brand: Price: $ 4.73 |
Circlip | 1 | $ 4.73 | ||
| 31 | 56147-93L00 Prop Shaft Bearing Housing Spacer
SKU: 56147-93L00 Weight: 0.125000 Brand: Price: $ 6.57 |
Prop Shaft Bearing Housing Spacer | 1 | $ 6.57 | ||
| 32 | 56130-93J02 Drive Shaft Bearing Housing
SKU: 56130-93J02 Weight: 0.560000 Brand: Price: $ 91.72 |
Drive Shaft Bearing Housing | 1 | $ 91.72 | ||
| 33 | 09280-66004 O-Ring
SKU: 09280-66004 Weight: 0.060000 Brand: Price: $ 5.59 |
O-Ring | 1 | $ 5.59 | ||
| 34 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 35 | 09381-40003 Circlip
SKU: 09381-40003 Weight: 0.060000 Brand: Price: $ 4.73 |
Circlip | 1 | $ 4.73 | ||
| 36 | 57622-93L00 Forward Thrust Spacer
SKU: 57622-93L00 Weight: 0.250000 Brand: Price: $ 22.08 |
Forward Thrust Spacer | 1 | $ 22.08 | Front | |
| 37 | 09164-50002 Wave Washer
SKU: 09164-50002 Weight: 0.125000 Brand: Price: $ 6.77 |
Wave Washer | 1 | $ 6.77 | ||
| 38 | 09381-72003 Snap Ring
SKU: 09381-72003 Weight: 0.125000 Brand: Price: $ 10.21 |
Snap Ring | 1 | $ 10.21 | Front | |
| 39 | 09140-48001 Nut
SKU: 09140-48001 Weight: 0.125000 Brand: Price: $ 57.55 |
Nut | 1 | $ 57.55 | Rear Gear | |
| 40 | 56122-93L00 Prop Shaft Bearing Housing Stopper
SKU: 56122-93L00 Weight: 0.500000 Brand: Price: $ 66.91 |
Prop Shaft Bearing Housing Stopper | 1 | $ 66.91 | ||
| 41 | 56126-93L10 Prop Shaft Bearing Housing Washer No. 1
SKU: 56126-93L10 Weight: 0.250000 Brand: Price: $ 97.30 |
Prop Shaft Bearing Housing Washer No. 1 | 1 | $ 97.30 | ||
| 42 | 56127-93L00 Prop Shaft Bearing Housing Washer No. 2
SKU: 56127-93L00 Weight: 0.250000 Brand: Price: $ 8.83 |
Prop Shaft Bearing Housing Washer No. 2 | 1 | $ 8.83 | ||
| 43 | 56128-93L00 Prop Shaft Bearing Housing Seal
SKU: 56128-93L00 Weight: 0.250000 Brand: Price: $ 11.07 |
Prop Shaft Bearing Housing Seal | 1 | $ 11.07 | ||
| 44 | 56129-93L00 Stopper Bushing
SKU: 56129-93L00 Weight: 0.500000 Brand: Price: $ 88.04 |
Stopper Bushing | 1 | $ 88.04 | ||
| 45 | 09280-00050 O-Ring
SKU: 09280-00050 Weight: 0.060000 Brand: Price: $ 7.10 |
O-Ring | 1 | $ 7.10 | ||
| 46 | 57527-93L00 Bearing Inner Spacer
SKU: 57527-93L00 Weight: 0.250000 Brand: Price: $ 18.07 |
Bearing Inner Spacer | 1 | $ 18.07 | ||
| 47 | 57541-93L00 Bearing Outer Spacer
SKU: 57541-93L00 Weight: 0.250000 Brand: Price: $ 94.63 |
Bearing Outer Spacer | 1 | $ 94.63 | ||
| 48 | 09265-50004 Bearing (50x80x20)
SKU: 09265-50004 Weight: 1.500000 Brand: Price: $ 91.10 |
Bearing (50x80x20) | 1 | $ 91.10 | Rear Gear | |
| 49 | 09265-55001 Bearing (55x100x22.75)
SKU: 09265-55001 Weight: 1.500000 Brand: Price: $ 101.36 |
Bearing (55x100x22.75) | 1 | $ 101.36 | Rear Gear |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
- Prices and Part Numbers subject to change without notice.
- All contents of this website apply to the continental U.S. market only.
- All trademarks or product names mentioned herein are the property of their respective owners.
