Suzuki DF 250 Parts Listings - 2016
S/N 25004F-610001 to 25004F-61XXXX

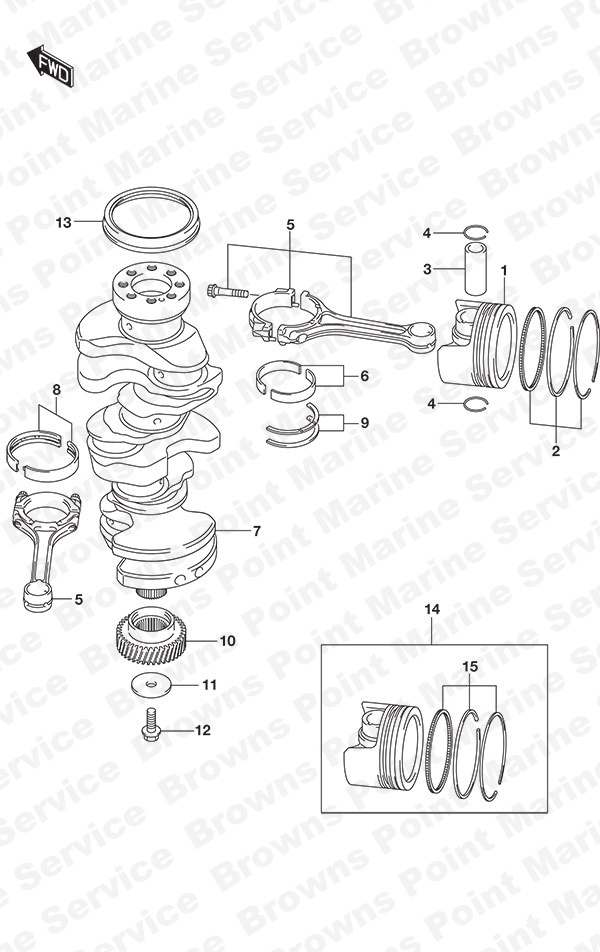

Fig. 116B - Crankshaft DF 250S
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-98J00-0B0 Piston
SKU: 12111-98J00-0B0 Weight: 0.500000 Brand: Price: $ 238.94 |
Piston | 6 | $ 238.94 | ||
| 2 | 12140-98J10 Piston Ring Set
SKU: 12140-98J10 Weight: 0.250000 Brand: Price: $ 78.35 |
Piston Ring Set | 6 | $ 78.35 | ||
| 3 | 12151-02F00 Piston Pin
SKU: 12151-02F00 Weight: 0.100000 Brand: Price: $ 26.77 |
Piston Pin | 6 | $ 26.77 | ||
| 4 | 09381-22010 Piston Pin Circlip
SKU: 09381-22010 Weight: 0.060000 Brand: Price: $ 2.28 |
Piston Pin Circlip | 12 | $ 2.28 | ||
| 5 | 12160-98J00 Connecting Rod Assembly
SKU: 12160-98J00 Weight: 0.500000 Brand: Price: $ 169.28 |
Connecting Rod Assembly | 6 | $ 169.28 | ||
| 6-1 | 12100-98810-0A0 Connrod Bearing Set (Green)
SKU: 12100-98810-0A0 Weight: 0.120000 Brand: Price: $ 28.43 |
Connrod Bearing Set (Green) | 6 | $ 28.43 | ||
| 6-2 | 12100-98810-025 Connrod Bearing Set (US:0.25)
SKU: 12100-98810-025 Weight: 0.120000 Brand: Price: $ 29.94 |
Connrod Bearing Set (US:0.25) | 6 | $ 29.94 | Optional | |
| 7 | 12220-98J00 Crankshaft
SKU: 12220-98J00 Weight: 50.000000 Brand: Price: $ 2,969.30 |
Crankshaft | 1 | $ 2,969.30 | ||
| 8-1 | 12340-98J00-0A0 Crankshaft Bearing Set (Black)
SKU: 12340-98J00-0A0 Weight: 0.100000 Brand: Price: $ 53.80 |
Crankshaft Bearing Set (Black) | 4 | $ 53.80 | ||
| 8-2 | 12340-98J00-0B0 Crankshaft Bearing Set (Non)
SKU: 12340-98J00-0B0 Weight: 0.100000 Brand: Price: $ 51.83 |
Crankshaft Bearing Set (Non) | 4 | $ 51.83 | ||
| 8-3 | 12340-98J00-0C0 Crankshaft Bearing Set (Yellow)
SKU: 12340-98J00-0C0 Weight: 0.100000 Brand: Price: $ 51.83 |
Crankshaft Bearing Set (Yellow) | 4 | $ 51.83 | ||
| 8-4 | 12340-98J00-0D0 Crankshaft Bearing Set (Blue)
SKU: 12340-98J00-0D0 Weight: 0.100000 Brand: Price: $ 53.80 |
Crankshaft Bearing Set (Blue) | 4 | $ 53.80 | ||
| 8-5 | 12340-98J00-0E0 Crankshaft Bearing Set (Pink) (NLA)
SKU: 12340-98J00-0E0 Weight: 0.100000 Brand: Price: $ 49.81 |
Crankshaft Bearing Set (Pink) (NLA) | 4 | $ 49.81 | ||
| 8-6 | 12300-98810-0AA Crankshaft Bearing Set (Red/Black) (NLA)
SKU: 12300-98810-0AA Weight: 0.100000 Brand: Price: $ 40.49 |
Crankshaft Bearing Set (Red/Black) (NLA) | 4 | $ 40.49 | Opt: US:0.25 | |
| 8-7 | 12300-98810-0BA Crankshaft Bearing Set (Red) (NLA)
SKU: 12300-98810-0BA Weight: 0.100000 Brand: Price: $ 40.49 |
Crankshaft Bearing Set (Red) (NLA) | 4 | $ 40.49 | Opt: US:0.25 | |
| 8-8 | 12300-98810-0CA Crankshaft Bearing Set (Red/Yellow) (NLA)
SKU: 12300-98810-0CA Weight: 0.100000 Brand: Price: $ 40.49 |
Crankshaft Bearing Set (Red/Yellow) (NLA) | 4 | $ 40.49 | Opt: US:0.25 | |
| 8-9 | 12300-98810-0DA Crankshaft Bearing Set (Red/Blue) (NLA)
SKU: 12300-98810-0DA Weight: 0.100000 Brand: Price: $ 40.49 |
Crankshaft Bearing Set (Red/Blue) (NLA) | 4 | $ 40.49 | Opt: US:0.25 | |
| 8-10 | 12300-98810-0EA Crankshaft Bearing Set (Red/Pink) (NLA)
SKU: 12300-98810-0EA Weight: 0.100000 Brand: Price: $ 40.49 |
Crankshaft Bearing Set (Red/Pink) (NLA) | 4 | $ 40.49 | Opt: US:0.25 | |
| 9-1 | 12300-98821 Crank Thrust Bearing Set
SKU: 12300-98821 Weight: 0.060000 Brand: Price: $ 30.97 |
Crank Thrust Bearing Set | 1 | $ 30.97 | ||
| 9-2 | 12300-98821-012 Crank Thrust Bearing Set (OS:0.12) (NLA)
SKU: 12300-98821-012 Weight: 0.060000 Brand: Price: $ 24.20 |
Crank Thrust Bearing Set (OS:0.12) (NLA) | 1 | $ 24.20 | Opt: OS:0.25 | |
| 10 | 12242-98J00 Drive Gear
SKU: 12242-98J00 Weight: 0.100000 Brand: Price: $ 204.63 |
Drive Gear | 1 | $ 204.63 | ||
| 11 | 09160-10104 Drive Gear Washer (NLA)
SKU: 09160-10104 Weight: 0.100000 Brand: Price: $ 2.27 |
Drive Gear Washer (NLA) | 1 | $ 2.27 | ||
| 12 | 01550-1025A BOLT
SKU: 01550-1025A Weight: 0.060000 Brand: Price: $ 3.11 |
BOLT | 1 | $ 3.11 | ||
| 13 | 09283-91001 Crankshaft Oil Seal
SKU: 09283-91001 Weight: 0.120000 Brand: Price: $ 42.16 |
Crankshaft Oil Seal | 1 | $ 42.16 | ||
| 14 | 12100-98J00-050 Piston & Ring Set (OS:.050)
SKU: 12100-98J00-050 Weight: 0.100000 Brand: Price: $ 304.86 |
Piston & Ring Set (OS:.050) | 6 | $ 304.86 | Optional | |
| 15 | 12140-98J10-050 Piston Ring Set (OS:0.50)
SKU: 12140-98J10-050 Weight: 0.250000 Brand: Price: $ 79.84 |
Piston Ring Set (OS:0.50) | 6 | $ 79.84 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
