Suzuki DF 9.9B Parts Listings - 2017
S/N 00995F-710001 to 00995F-71XXXX

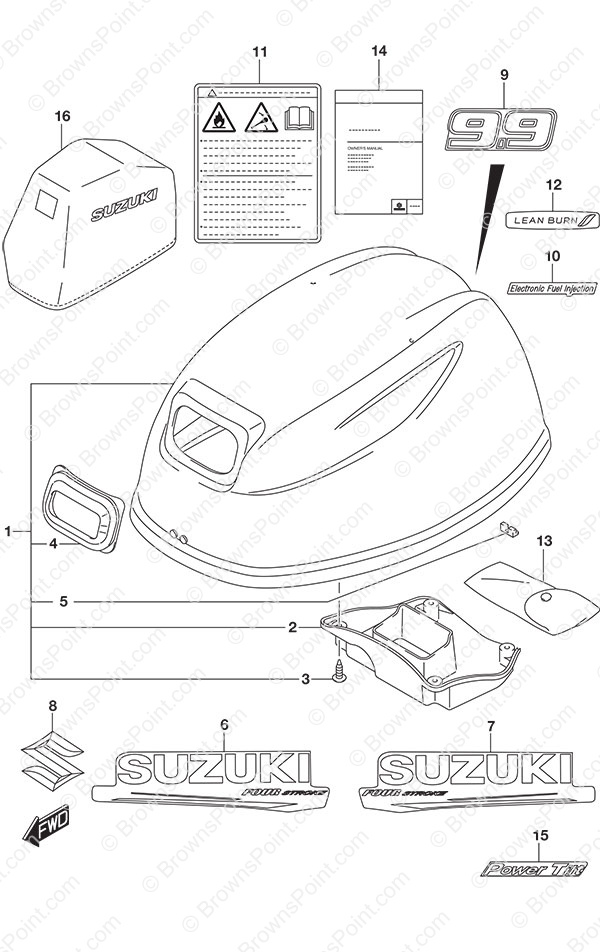

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-89L40-YAY Engine Cover Assembly
SKU: 61400-89L40-YAY Weight: 6.000000 Brand: Price: $ 233.30 |
Engine Cover Assembly | 1 | $ 233.30 | ||
| 2 | 61433-89L01 Air Intake Inner Cover
SKU: 61433-89L01 Weight: 1.000000 Brand: Price: $ 14.81 |
Air Intake Inner Cover | 1 | $ 14.81 | ||
| 3 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 4 | $ 1.70 | ||
| 4 | 61622-90L00 Recoil Starter Seal
SKU: 61622-90L00 Weight: 0.250000 Brand: Price: $ 25.25 |
Recoil Starter Seal | 1 | $ 25.25 | ||
| 5 | 61619-89L00 Engine Cover Fastener Cushion
SKU: 61619-89L00 Weight: 0.125000 Brand: Price: $ 4.59 |
Engine Cover Fastener Cushion | 1 | $ 4.59 | ||
| 6 | 61443-97L01-YAY Engine Cover Starboard Stripe
SKU: 61443-97L01-YAY Weight: 0.250000 Brand: Price: $ 8.17 |
Engine Cover Starboard Stripe | 1 | $ 8.17 | ||
| 7 | 61453-97L01-YAY Engine Cover Port Stripe
SKU: 61453-97L01-YAY Weight: 0.250000 Brand: Price: $ 8.46 |
Engine Cover Port Stripe | 1 | $ 8.46 | ||
| 8 | 77811-54GB0-0PG Chrome S Emblem
SKU: 77811-54GB0-0PG Weight: 0.250000 Brand: Price: $ 13.29 |
Chrome S Emblem | 1 | $ 13.29 | ||
| 9 | 61435-89L10-YAY Rear Emblem Mark (9.9)
SKU: 61435-89L10-YAY Weight: 0.060000 Brand: Price: $ 2.78 |
Rear Emblem Mark (9.9) | 1 | $ 2.78 | ||
| 10 | 61446-89L10 EFI Decal
SKU: 61446-89L10 Weight: 0.060000 Brand: Price: $ 1.91 |
EFI Decal | 1 | $ 1.91 | ||
| 11 | 61458-89L30 Engine Cover Label
SKU: 61458-89L30 Weight: 0.125000 Brand: Price: $ 3.54 |
Engine Cover Label | 1 | $ 3.54 | ||
| 12 | 61471-89L00 Lean Burn Decal
SKU: 61471-89L00 Weight: 0.125000 Brand: Price: $ 9.72 |
Lean Burn Decal | 1 | $ 9.72 | ||
| 13 | 59800-89L00 Tool Set
SKU: 59800-89L00 Weight: 0.500000 Brand: Price: $ 64.88 |
Tool Set | 1 | $ 64.88 | ||
| 14 | 99011-89L40-03B Owners Manual DF9.9B/15A/20A - 2017
SKU: 99011-89L40-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF9.9B/15A/20A - 2017 | 1 | $ 20.00 | ||
| 15 | 61447-89L00 Power Tilt Emblem Mark
SKU: 61447-89L00 Weight: 0.125000 Brand: Price: $ 2.34 |
Power Tilt Emblem Mark | 1 | $ 2.34 | ||
| 16 | 68110-89L00 Weather Cover (NLA)
SKU: 68110-89L00 Weight: 0.100000 Brand: Price: $ 0.00 |
Weather Cover (NLA) | 1 | $ 0.00 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
