Suzuki DF 200A Parts Listings - 2016
S/N 20003F-610001 to 20003F-61XXXX
S/N 20003Z-610001 to 20003Z-61XXXX

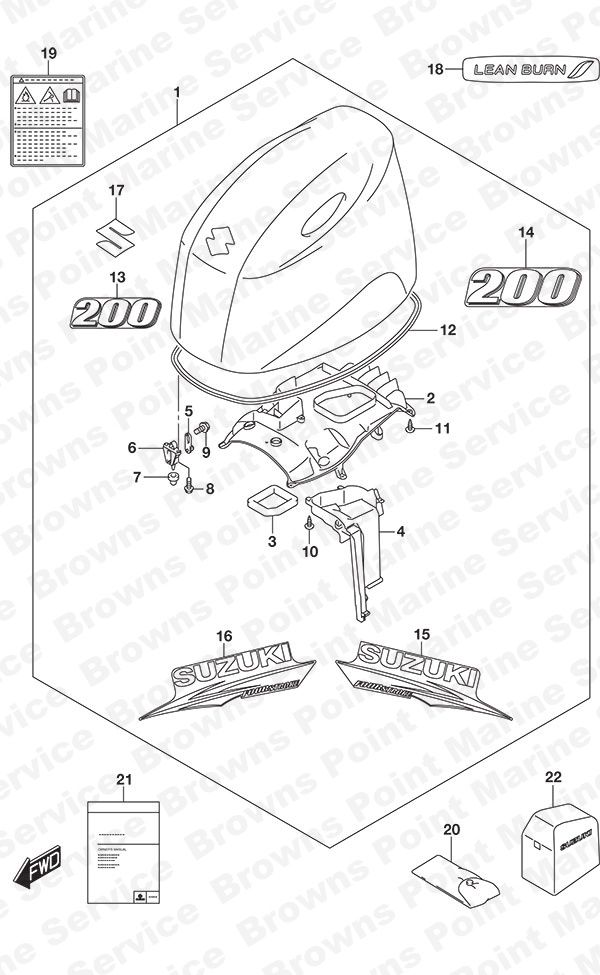

Fig. 420B - Engine Cover (White)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61420-96861-Y5S Engine Cover Set
SKU: 61420-96861-Y5S Weight: 35.000000 Brand: Price: $ 1,197.29 |
Engine Cover Set | 1 | $ 1,197.29 | White | |
| 2 | 61433-96L00 Air Intake Inner Cover
SKU: 61433-96L00 Weight: 1.000000 Brand: Price: $ 57.56 |
Air Intake Inner Cover | 1 | $ 57.56 | ||
| 3 | 61476-96J10 Air Vent Seal
SKU: 61476-96J10 Weight: 0.250000 Brand: Price: $ 10.22 |
Air Vent Seal | 1 | $ 10.22 | ||
| 4 | 61565-96L00 Air Intake Duct
SKU: 61565-96L00 Weight: 1.000000 Brand: Price: $ 39.45 |
Air Intake Duct | 1 | $ 39.45 | ||
| 5 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 6 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 8 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 10 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 11 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 11 | $ 1.70 | ||
| 12 | 61112-96L00 Engine Cover Seal
SKU: 61112-96L00 Weight: 1.000000 Brand: Price: $ 47.41 |
Engine Cover Seal | 1 | $ 47.41 | ||
| 13 | 61422-93J90 Front Emblem Mark (200)
SKU: 61422-93J90 Weight: 0.060000 Brand: Price: $ 11.19 |
Front Emblem Mark (200) | 1 | $ 11.19 | Front | |
| 14 | 61435-96L10 Emblem Mark (200)
SKU: 61435-96L10 Weight: 0.060000 Brand: Price: $ 19.25 |
Emblem Mark (200) | 1 | $ 19.25 | Rear | |
| 15 | 61443-96J30 Starboard Engine Cover Stripe
SKU: 61443-96J30 Weight: 0.250000 Brand: Price: $ 76.15 |
Starboard Engine Cover Stripe | 1 | $ 76.15 | ||
| 16 | 61453-96J30 Port Engine Cover Stripe
SKU: 61453-96J30 Weight: 0.250000 Brand: Price: $ 76.15 |
Port Engine Cover Stripe | 1 | $ 76.15 | ||
| 17 | 77811-54GC0-0PG Chrome S Emblem
SKU: 77811-54GC0-0PG Weight: 0.250000 Brand: Price: $ 20.13 |
Chrome S Emblem | 1 | $ 20.13 | ||
| 18 | 61471-98J00 Lean Burn Decal
SKU: 61471-98J00 Weight: 0.250000 Brand: Price: $ 10.05 |
Lean Burn Decal | 1 | $ 10.05 | ||
| 19 | 61458-90J01 Engine Cover Label
SKU: 61458-90J01 Weight: 0.125000 Brand: Price: $ 4.27 |
Engine Cover Label | 1 | $ 4.27 | ||
| 20 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 21 | 99011-96L20-03B Owners Manual DF200A - 2016
SKU: 99011-96L20-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF200A - 2016 | 1 | $ 20.00 | ||
| 22 | 68110-98J00 Weather Cover
SKU: 68110-98J00 Weight: 2.000000 Brand: Price: $ 158.01 |
Weather Cover | 1 | $ 158.01 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
