Suzuki DF 200A Parts Listings - 2016
S/N 20003F-610001 to 20003F-61XXXX
S/N 20003Z-610001 to 20003Z-61XXXX

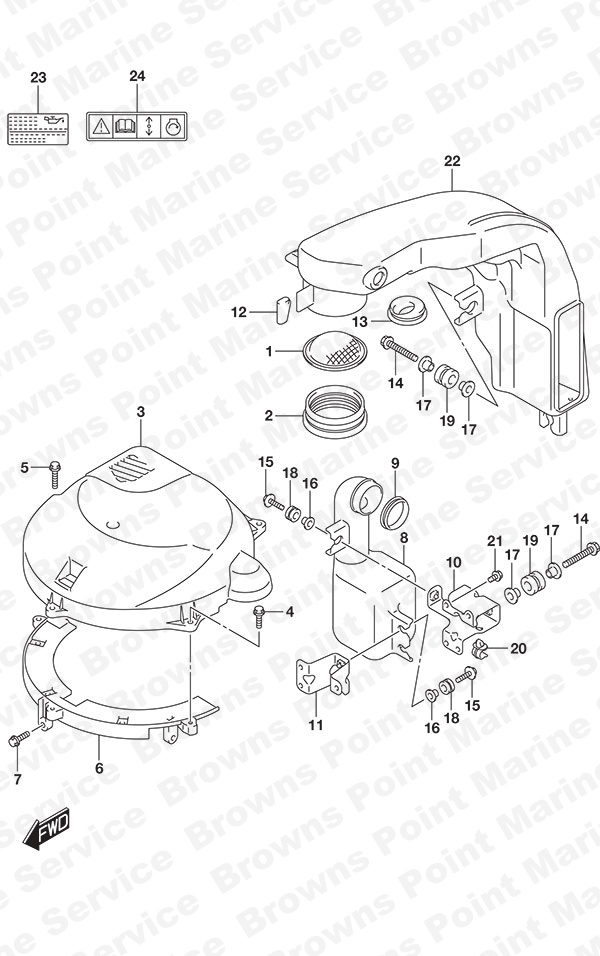

Fig. 135 -Silencer/Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13710-96J00 Flame Arrester
SKU: 13710-96J00 Weight: 0.100000 Brand: Price: $ 13.08 |
Flame Arrester | 1 | $ 13.08 | ||
| 2 | 13813-96L00 Flame Arrester Holder
SKU: 13813-96L00 Weight: 0.250000 Brand: Price: $ 9.95 |
Flame Arrester Holder | 1 | $ 9.95 | ||
| 3 | 11510-96L00 Ring Gear Under Cover
SKU: 11510-96L00 Weight: 4.000000 Brand: Price: $ 53.77 |
Ring Gear Under Cover | 1 | $ 53.77 | ||
| 4 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 5 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 6 | 11510-96J04 Ring Gear Under Cover
SKU: 11510-96J04 Weight: 4.000000 Brand: Price: $ 38.48 |
Ring Gear Under Cover | 1 | $ 38.48 | ||
| 7 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 8 | 13761-96L00 Resonator
SKU: 13761-96L00 Weight: 1.000000 Brand: Price: $ 63.60 |
Resonator | 1 | $ 63.60 | ||
| 9 | 13766-96L00 Resonator Grommet
SKU: 13766-96L00 Weight: 0.250000 Brand: Price: $ 4.96 |
Resonator Grommet | 1 | $ 4.96 | ||
| 10 | 13822-96L00 Silencer Bracket
SKU: 13822-96L00 Weight: 0.250000 Brand: Price: $ 32.96 |
Silencer Bracket | 1 | $ 32.96 | ||
| 11 | 13823-96L00 Resonator Bracket
SKU: 13823-96L00 Weight: 0.250000 Brand: Price: $ 18.47 |
Resonator Bracket | 1 | $ 18.47 | ||
| 12 | 13852-96L00 Silencer Cushion
SKU: 13852-96L00 Weight: 0.060000 Brand: Price: $ 4.64 |
Silencer Cushion | 1 | $ 4.64 | ||
| 13 | 13853-96L00 Breather Hose Grommet
SKU: 13853-96L00 Weight: 0.060000 Brand: Price: $ 4.96 |
Breather Hose Grommet | 1 | $ 4.96 | ||
| 14 | 09103-08543 Bolt (8x50)
SKU: 09103-08543 Weight: 0.060000 Brand: Price: $ 3.38 |
Bolt (8x50) | 2 | $ 3.38 | ||
| 15 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 3 | $ 3.54 | ||
| 16 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 3 | $ 2.52 | ||
| 17 | 09169-08042 Washer
SKU: 09169-08042 Weight: 0.060000 Brand: Price: $ 5.86 |
Washer | 4 | $ 5.86 | ||
| 18 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 1.97 |
Cushion | 3 | $ 1.97 | ||
| 19 | 09320-12072 Cushion
SKU: 09320-12072 Weight: 0.060000 Brand: Price: $ 2.32 |
Cushion | 2 | $ 2.32 | ||
| 20 | 09403-11320 Clamp
SKU: 09403-11320 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp | 1 | $ 2.52 | ||
| 21 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 22 | 13811-96L00 Silencer
SKU: 13811-96L00 Weight: 3.000000 Brand: Price: $ 110.07 |
Silencer | 1 | $ 110.07 | ||
| 23 | 61494-96J10 Oil/Clearance Label
SKU: 61494-96J10 Weight: 0.125000 Brand: Price: $ 6.65 |
Oil/Clearance Label | 1 | $ 6.65 | ||
| 24 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
