Suzuki DF 2.5 Parts Listings - 2017
S/N 00252F-710001 to 00252F-71XXXX

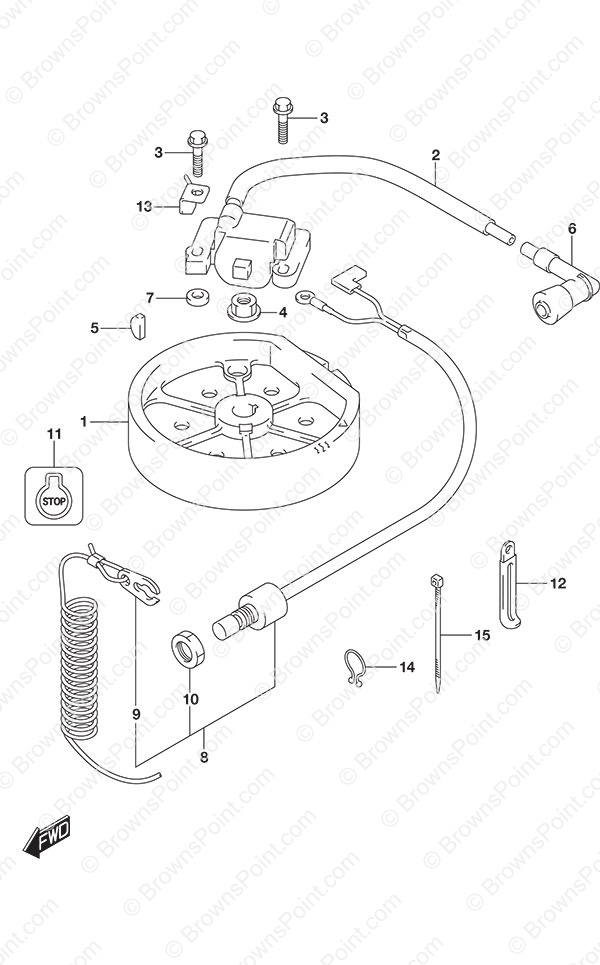

Fig. 303 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-97J10 Flywheel (NLA)
SKU: 32102-97J10 Weight: 0.100000 Brand: Price: $ 137.96 |
Flywheel (NLA) | 1 | $ 137.96 | ||
| 2 | 33410-97J21 Replaced by 33410-97J40
SKU: 33410-97J21 Weight: 0.500000 Brand: Price: $ 60.10 |
Replaced by 33410-97J40 | 1 | $ 60.10 | ||
| 3 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 4 | 08316-10107 Nut
SKU: 08316-10107 Weight: 0.100000 Brand: Price: $ 2.40 |
Nut | 1 | $ 2.40 | ||
| 5 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 6 | 33500-07H00 Spark Plug Cap
SKU: 33500-07H00 Weight: 0.080000 Brand: Price: $ 44.59 |
Spark Plug Cap | 1 | $ 44.59 | ||
| 7 | 09180-06363 Spacer (6.2x12.6x6) (NLA)
SKU: 09180-06363 Weight: 0.100000 Brand: Price: $ 2.85 |
Spacer (6.2x12.6x6) (NLA) | 2 | $ 2.85 | ||
| 8 | 37830-97J21 Emergency Switch Assembly
SKU: 37830-97J21 Weight: 0.250000 Brand: Price: $ 54.11 |
Emergency Switch Assembly | 1 | $ 54.11 | ||
| 9 | 37823-97J00 Stop Switch Lanyard
SKU: 37823-97J00 Weight: 0.080000 Brand: Price: $ 28.07 |
Stop Switch Lanyard | 1 | $ 28.07 | ||
| 10 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 11 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.20 |
Stop Label | 1 | $ 1.20 | ||
| 12 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 13 | 19183-97J01 Throttle Cable Holder (NLA)
SKU: 19183-97J01 Weight: 0.100000 Brand: Price: $ 5.47 |
Throttle Cable Holder (NLA) | 1 | $ 5.47 | ||
| 14 | 09408-00179 Clamp
SKU: 09408-00179 Weight: 0.100000 Brand: Price: $ 2.14 |
Clamp | 1 | $ 2.14 | ||
| 15 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
