Suzuki DF 175 Parts Listings - 2016
S/N 17502F-610001 to 17502F-61XXXX
S/N 17502Z-610001 to 17502Z-61XXXX

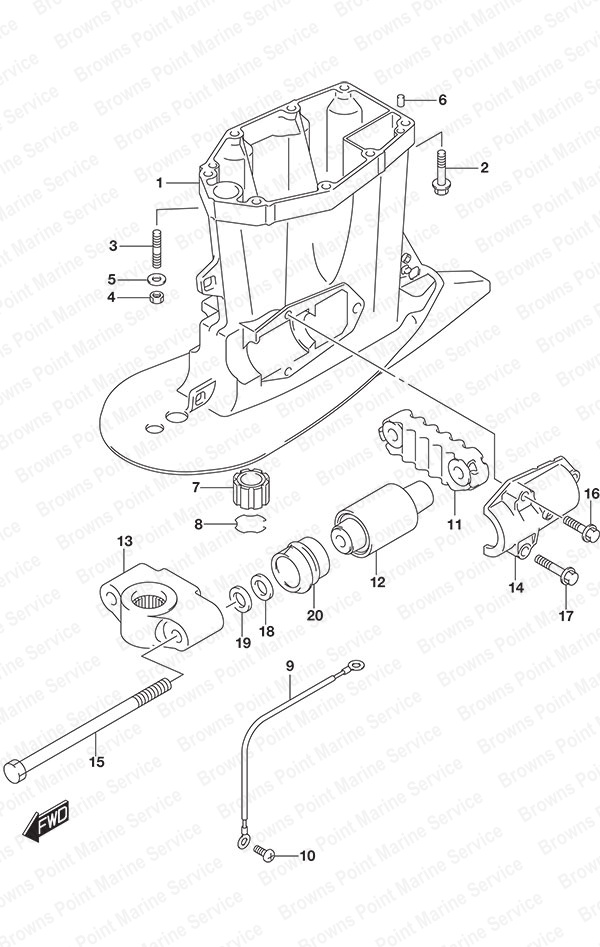

Fig. 405 - Drive Shaft Housing

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 52111-96J00-0EP Drive Shaft Housing (L) 1 $ 1,009.08
Black w/Transom (L)
1-2 52111-96J00-Y5S Drive Shaft Housing (L) 1 $ 823.47
White w/Transom (L)
1-3 52111-96J11-0EP Drive Shaft Housing (X) 1 $ 1,021.29
Black w/Transom (X)
1-4 52111-96J11-Y5S Drive Shaft Housing (X) 1 $ 824.74
White w/Transom (X)
2-1 09116-10176 Bolt (10x44) 6 $ 6.81
w/Transom (L)
2-2 09116-10176 Bolt (10x44) 8 $ 6.81
w/Transom (X)
3 09108-10150 Stud Bolt (NLA) 2 $ 7.03

Not Available

w/Transom (L)
4 09140-10031 Nut (10mm) 2 $ 2.04
w/Transom (L)
5 09160-10141 Washer (10.5x19x2) 2 $ 3.41
w/Transom (L)
6 09202-08006 Knock Pin (8x12) 2 $ 2.77
7 57130-87D10 Drive Shaft Bushing 1 $ 38.20
w/Transom (X)
8 09387-39002 RING,DRIVE SHAF 1 $ 6.45
w/Transom (X)
9 36895-87D10 Wire Lead (L:310) 1 $ 11.80
Swivel to Housing
10 09125-06063 Screw (6x10) 2 $ 1.96
11 54151-96J01 Lower Thrust Mount 1 $ 117.08
12 54160-96J02 MOUNT,LWR 2 $ 69.79
13-1 54211-96J01-0EP Lower Mount Bracket 1 $ 174.45
Black
13-2 54211-96J01-Y5S Lower Mount Bracket 1 $ 181.09
White
14 54221-96J00 Lower Mount Cover 2 $ 73.98
15 54112-93J00 Upper Mount Bolt 2 $ 73.85
16 09116-10182 Bolt (10x35) 2 $ 5.73
17 09116-10180 Bolt (10x50) 4 $ 6.62
18 09160-16050 Lower Mount Washer 2 $ 2.65
19 09160-16050 Lower Mount Washer 2 $ 2.65
20 54167-96J00 Lower Side Mount 2 $ 14.06

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
