Suzuki DF 150 Parts Listings - 2016
S/N 15002F-610001 to 15002F-61XXXX
S/N 15002Z-610001 to 15002Z-61XXXX

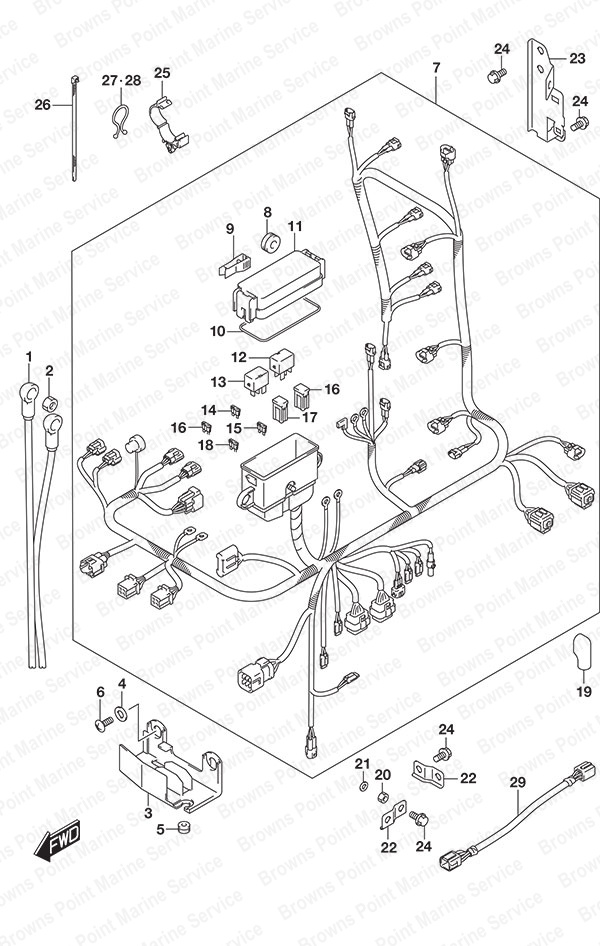

Fig. 322B - Harness (Model: TG/ZG)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-96L01 Starter Motor Cable Assembly
SKU: 33810-96L01 Weight: 3.000000 Brand: Price: $ 306.67 |
Starter Motor Cable Assembly | 1 | $ 306.67 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 1 | $ 2.38 | ||
| 3 | 36616-96J00 Cable Holder (NLA)
SKU: 36616-96J00 Weight: 0.100000 Brand: Price: $ 5.83 |
Cable Holder (NLA) | 1 | $ 5.83 | ||
| 4 | 09169-06053 Washer (6.3x16x1)
SKU: 09169-06053 Weight: 0.100000 Brand: Price: $ 1.18 |
Washer (6.3x16x1) | 2 | $ 1.18 | ||
| 5 | 09320-04013 Bushing
SKU: 09320-04013 Weight: 0.060000 Brand: Price: $ 1.68 |
Bushing | 2 | $ 1.68 | ||
| 6 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.45 |
6 X 16 CROSS SC | 2 | $ 1.45 | ||
| 7 | 36610-96JA0 Wiring Harness Assembly
SKU: 36610-96JA0 Weight: 5.000000 Brand: Price: $ 809.18 |
Wiring Harness Assembly | 1 | $ 809.18 | ||
| 8 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.80 |
Cushion (8.5x20x8) | 2 | $ 1.80 | ||
| 9 | 36737-96J00 Fuse Puller (NLA)
SKU: 36737-96J00 Weight: 0.060000 Brand: Price: $ 4.01 |
Fuse Puller (NLA) | 1 | $ 4.01 | ||
| 10 | 36721-96J00 Upper Cover O-Ring
SKU: 36721-96J00 Weight: 0.060000 Brand: Price: $ 12.30 |
Upper Cover O-Ring | 1 | $ 12.30 | ||
| 11 | 36738-96J10 Fuse Case Upper Cover
SKU: 36738-96J10 Weight: 0.200000 Brand: Price: $ 17.78 |
Fuse Case Upper Cover | 1 | $ 17.78 | ||
| 12 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | Engine Control Unit | |
| 13 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | Starter Motor | |
| 14 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.17 |
10 Amp Fuse | 3 | $ 2.17 | ||
| 15 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.45 |
30 Amp Fuse | 3 | $ 2.45 | ||
| 16 | 09481-30401 30 Amp Fuse
SKU: 09481-30401 Weight: 0.060000 Brand: Price: $ 7.92 |
30 Amp Fuse | 1 | $ 7.92 | ||
| 17 | 09481-60401 60 Amp Fuse
SKU: 09481-60401 Weight: 0.060000 Brand: Price: $ 6.94 |
60 Amp Fuse | 2 | $ 6.94 | ||
| 18 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.17 |
15 Amp Fuse | 3 | $ 2.17 | ||
| 19 | 36612-96J01 CAP,TERMINAL
SKU: 36612-96J01 Weight: 0.000000 Brand: Price: $ 5.11 |
CAP,TERMINAL | 1 | $ 5.11 | ||
| 20 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 1 | $ 1.95 | ||
| 21 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Lock Washer | 1 | $ 1.95 | ||
| 22 | 36617-93J00 Harness Bracket
SKU: 36617-93J00 Weight: 0.125000 Brand: Price: $ 2.12 |
Harness Bracket | 2 | $ 2.12 | ||
| 23 | 36617-96J00 Harness Bracket (NLA)
SKU: 36617-96J00 Weight: 0.100000 Brand: Price: $ 6.48 |
Harness Bracket (NLA) | 1 | $ 6.48 | ||
| 24 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 4 | $ 2.45 | ||
| 25 | 09403-18409 Clamp
SKU: 09403-18409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 1 | $ 2.02 | ||
| 26 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.25 |
Clamp (L:140) | 4 | $ 3.25 | ||
| 27 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 1 | $ 2.25 | ||
| 28 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.60 |
Clamp | 1 | $ 1.60 | ||
| 29 | 36611-92J01 HARNESS ASSY,WI
SKU: 36611-92J01 Weight: 0.000000 Brand: Price: $ 24.71 |
HARNESS ASSY,WI | 1 | $ 24.71 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
