Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX

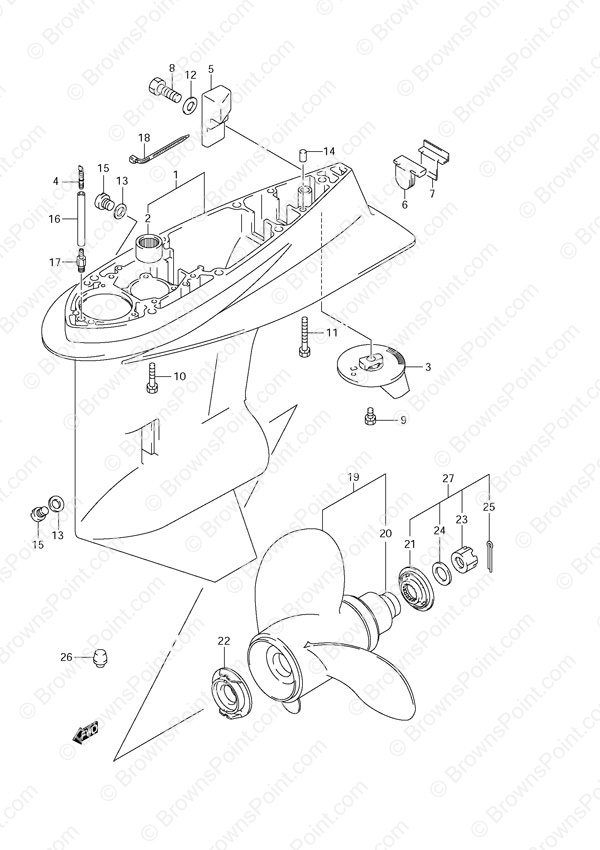

Fig. 42 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-90J16-0EP Gear Case Housing
SKU: 55110-90J16-0EP Weight: 25.000000 Brand: Price: $ 1,597.76 |
Gear Case Housing | 1 | $ 1,597.76 | ||
| 2 | 09263-28016 Bearing (28.6x38x31.8)
SKU: 09263-28016 Weight: 0.220000 Brand: Price: $ 89.23 |
Bearing (28.6x38x31.8) | 1 | $ 89.23 | ||
| 3 | 55125-90J01 Trim Tab
SKU: 55125-90J01 Weight: 0.140000 Brand: Price: $ 24.33 |
Trim Tab | 1 | $ 24.33 | ||
| 4 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | ||
| 5 | 55321-90J01 Gear Case Anode
SKU: 55321-90J01 Weight: 0.180000 Brand: Price: $ 9.48 |
Gear Case Anode | 1 | $ 9.48 | ||
| 6 | 55332-87D12 Exhaust Seal Rubber
SKU: 55332-87D12 Weight: 0.060000 Brand: Price: $ 6.66 |
Exhaust Seal Rubber | 1 | $ 6.66 | ||
| 7 | 55333-87D10 Exhaust Seal Plate
SKU: 55333-87D10 Weight: 0.080000 Brand: Price: $ 10.93 |
Exhaust Seal Plate | 1 | $ 10.93 | ||
| 8 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 1 | $ 2.10 | ||
| 9 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 10 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 6 | $ 15.95 | ||
| 11 | 09117-10039 Bolt (10x80)
SKU: 09117-10039 Weight: 0.120000 Brand: Price: $ 11.20 |
Bolt (10x80) | 1 | $ 11.20 | ||
| 12 | 09160-06085 Washer (6.5x15x1.0)
SKU: 09160-06085 Weight: 0.060000 Brand: Price: $ 1.36 |
Washer (6.5x15x1.0) | 1 | $ 1.36 | ||
| 13 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 2 | $ 1.60 | ||
| 14 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 15 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 2 | $ 6.59 | ||
| 16-1 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | L:2000->940 Type:L | |
| 16-2 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | L:2000->1100 Type:X | |
| 17 | 09362-09008 Nipple
SKU: 09362-09008 Weight: 0.060000 Brand: Price: $ 2.92 |
Nipple | 1 | $ 2.92 | ||
| 18 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 3 | $ 3.09 | ||
| 19-1 | 990C0-00760-15P Aluminum Propeller 3x13-1/2x15
SKU: 990C0-00760-15P Weight: 8.000000 Brand: Price: $ 281.94 |
Aluminum Propeller 3x13-1/2x15 | 1 | $ 281.94 | ||
| 19-2 | 990C0-00760-17P Aluminum Propeller 3x14x17
SKU: 990C0-00760-17P Weight: 8.000000 Brand: Price: $ 281.94 |
Aluminum Propeller 3x14x17 | 1 | $ 281.94 | ||
| 19-3 | 990C0-00760-19P Aluminum Propeller 3x14x19
SKU: 990C0-00760-19P Weight: 8.000000 Brand: Price: $ 281.94 |
Aluminum Propeller 3x14x19 | 1 | $ 281.94 | ||
| 19-4 | 990C0-00760-21P Aluminum Propeller 3x14x21
SKU: 990C0-00760-21P Weight: 8.000000 Brand: Price: $ 281.94 |
Aluminum Propeller 3x14x21 | 1 | $ 281.94 | ||
| 19-5 | 990C0-00760-23P Aluminum Propeller 3x14x23
SKU: 990C0-00760-23P Weight: 8.000000 Brand: Price: $ 281.94 |
Aluminum Propeller 3x14x23 | 1 | $ 281.94 | ||
| 19-6 | 990C0-00610-16P S/S Propeller 3x14x16
SKU: 990C0-00610-16P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x16 | 1 | $ 579.95 | ||
| 19-7 | 990C0-00610-18P S/S Propeller 3x14x18
SKU: 990C0-00610-18P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x18 | 1 | $ 579.95 | ||
| 19-8 | 990C0-00610-20P S/S Propeller 3x14x20
SKU: 990C0-00610-20P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x20 | 1 | $ 579.95 | ||
| 19-9 | 990C0-00610-22P S/S Propeller 3x14x22
SKU: 990C0-00610-22P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x22 | 1 | $ 579.95 | ||
| 19-10 | 990C0-00610-24P S/S Propeller 3x14x24
SKU: 990C0-00610-24P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x24 | 1 | $ 579.95 | ||
| 19-11 | 990C0-00610-26P S/S Propeller 3x14x26
SKU: 990C0-00610-26P Weight: 25.000000 Brand: Price: $ 579.95 |
S/S Propeller 3x14x26 | 1 | $ 579.95 | ||
| 20 | 58120-90J00 Propeller Bushing
SKU: 58120-90J00 Weight: 1.160000 Brand: Price: $ 52.71 |
Propeller Bushing | 1 | $ 52.71 | ||
| 21 | 57633-90J02 Propeller Nut Spacer
SKU: 57633-90J02 Weight: 0.320000 Brand: Price: $ 60.46 |
Propeller Nut Spacer | 1 | $ 60.46 | ||
| 22 | 57635-92J10 STOPPER,PROPELL
SKU: 57635-92J10 Weight: 0.000000 Brand: Price: $ 82.62 |
STOPPER,PROPELL | 1 | $ 82.62 | ||
| 23 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 24 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 25 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 26 | 55116-87E00 Gear Case Plug
SKU: 55116-87E00 Weight: 0.100000 Brand: Price: $ 39.04 |
Gear Case Plug | 1 | $ 39.04 | Optional | |
| 27 | 57630-90J10 Propeller Hardware Kit DF70A/DF80A/DF90A/DF90 to DF140
SKU: 57630-90J10 Weight: 0.000000 Brand: Price: $ 43.28 |
Propeller Hardware Kit DF70A/DF80A/DF90A/DF90 to DF140 | 1 | $ 43.28 | Optional | |
| 28 | 25700-92J00 Gear Case Seal Kit DF140
SKU: 25700-92J00 Weight: 0.200000 Brand: Price: $ 40.52 |
Gear Case Seal Kit DF140 | 1 | $ 40.52 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
