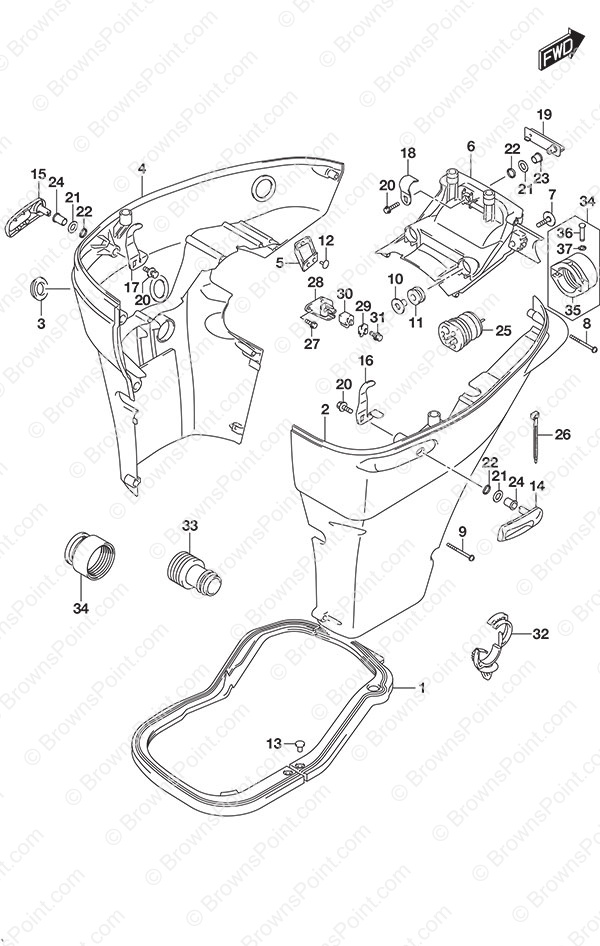

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 61134-90J21 SEAL,SIDE COVER SKU: 61134-90J21 Weight: 0.000000 Brand: Price: $ 73.40 |
SEAL,SIDE COVER | 1 | $ 73.40 | ||
2 | 61810-90J10-YKV Starboard Side Cover SKU: 61810-90J10-YKV Weight: 10.000000 Brand: Price: $ 600.49 |
Starboard Side Cover | 1 | $ 600.49 | Matte Black | |
3 | 61817-89J01 Side Cover Plug SKU: 61817-89J01 Weight: 0.060000 Brand: Price: $ 5.95 |
Side Cover Plug | 1 | $ 5.95 | ||
4 | 61820-90J11-YKV Port Side Cover SKU: 61820-90J11-YKV Weight: 10.000000 Brand: Price: $ 623.37 |
Port Side Cover | 1 | $ 623.37 | Matte Black | |
5 | 61827-90J00 Side Cover Holder (NLA) SKU: 61827-90J00 Weight: 0.100000 Brand: Price: $ 16.38 |
Side Cover Holder (NLA) | 1 | $ 16.38 | ||
6 | 61831-90J12-YKV Front Panel SKU: 61831-90J12-YKV Weight: 1.000000 Brand: Price: $ 119.46 |
Front Panel | 1 | $ 119.46 | Matte Black | |
7 | 09116-08174 Bolt (8x38) SKU: 09116-08174 Weight: 0.060000 Brand: Price: $ 4.19 |
Bolt (8x38) | 2 | $ 4.19 | ||
8 | 09139-06249 SCREW SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 7 | $ 1.96 | ||
9 | 09136-06149 Screw (6x55) SKU: 09136-06149 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw (6x55) | 2 | $ 3.71 | ||
10 | 09169-08039 Washer (8.5x30x1.5) (NLA) SKU: 09169-08039 Weight: 0.060000 Brand: Price: $ 4.91 |
Washer (8.5x30x1.5) (NLA) | 2 | $ 4.91 | ||
11 | 09320-11023 CUSHION,FRONT P SKU: 09320-11023 Weight: 0.000000 Brand: Price: $ 2.91 |
CUSHION,FRONT P | 2 | $ 2.91 | ||
12 | 09321-08026 CUSHION SKU: 09321-08026 Weight: 0.000000 Brand: Price: $ 1.95 |
CUSHION | 2 | $ 1.95 | ||
14 | 61633-90J02-YKV Rear Hook Lever SKU: 61633-90J02-YKV Weight: 0.250000 Brand: Price: $ 59.31 |
Rear Hook Lever | 1 | $ 59.31 | Matte Black Starboard | |
15 | 61633-90J02-YKV Rear Hook Lever SKU: 61633-90J02-YKV Weight: 0.250000 Brand: Price: $ 59.31 |
Rear Hook Lever | 1 | $ 59.31 | Matte Black Port | |
16 | 61637-90J10 Engine Cover Rear Starboard Hook SKU: 61637-90J10 Weight: 0.250000 Brand: Price: $ 12.27 |
Engine Cover Rear Starboard Hook | 1 | $ 12.27 | ||
17 | 61638-90J10 Engine Cover Rear Port Hook SKU: 61638-90J10 Weight: 0.250000 Brand: Price: $ 12.27 |
Engine Cover Rear Port Hook | 1 | $ 12.27 | ||
18 | 61641-87D00 Engine Cover Hook SKU: 61641-87D00 Weight: 0.100000 Brand: Price: $ 11.89 |
Engine Cover Hook | 1 | $ 11.89 | ||
19 | 61645-90J01-YKV Front Hook Lever SKU: 61645-90J01-YKV Weight: 0.200000 Brand: Price: $ 45.76 |
Front Hook Lever | 1 | $ 45.76 | Matte Black | |
20 | 09116-06127 Bolt (6x12) SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 3 | $ 2.98 | ||
21 | 09160-13014 Washer (13.2x25x1.0) SKU: 09160-13014 Weight: 0.060000 Brand: Price: $ 2.99 |
Washer (13.2x25x1.0) | 3 | $ 2.99 | ||
22 | 09164-14008 Wave Washer SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 3 | $ 2.04 | ||
23 | 09307-13006 Bushing SKU: 09307-13006 Weight: 0.060000 Brand: Price: $ 7.10 |
Bushing | 1 | $ 7.10 | Front | |
24 | 09306-13008 Bushing SKU: 09306-13008 Weight: 0.060000 Brand: Price: $ 7.17 |
Bushing | 2 | $ 7.17 | Rear | |
25 | 61124-90J31 Remote Control Grommet SKU: 61124-90J31 Weight: 0.500000 Brand: Price: $ 15.54 |
Remote Control Grommet | 1 | $ 15.54 | ||
26 | 09407-25402 Clamp (L:248) SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
27 | 01550-06167 BOLT SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
28 | 67341-90J32 Remocon Cable Holder SKU: 67341-90J32 Weight: 0.100000 Brand: Price: $ 37.97 |
Remocon Cable Holder | 1 | $ 37.97 | ||
29 | 67343-90J20 Remocon Cable Stopper SKU: 67343-90J20 Weight: 0.080000 Brand: Price: $ 9.85 |
Remocon Cable Stopper | 1 | $ 9.85 | ||
30 | 67344-90J00 Remocon Cable Grommet SKU: 67344-90J00 Weight: 0.100000 Brand: Price: $ 9.73 |
Remocon Cable Grommet | 1 | $ 9.73 | ||
31 | 01580-08257 BOLT SKU: 01580-08257 Weight: 0.060000 Brand: Price: $ 3.24 |
BOLT | 1 | $ 3.24 | ||
32 | 09403-20308 Clip SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 | ||
33 | 17917-87L00 Water Flush Connector SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 | ||
34 | 67300-98J10 Rigging Kit Adapter SKU: 67300-98J10 Weight: 0.200000 Brand: Price: $ 19.76 |
Rigging Kit Adapter | 1 | $ 19.76 | Optional | |
35 | 67361-90J10 Rigging Hose Adapter SKU: 67361-90J10 Weight: 0.500000 Brand: Price: $ 8.36 |
Rigging Hose Adapter | 1 | $ 8.36 | Optional | |
36 | 09208-06009 Hose Adapter Pin SKU: 09208-06009 Weight: 0.125000 Brand: Price: $ 1.88 |
Hose Adapter Pin | 2 | $ 1.88 | Optional | |
37 | 09383-04002 E Ring SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 2 | $ 0.76 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
