Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

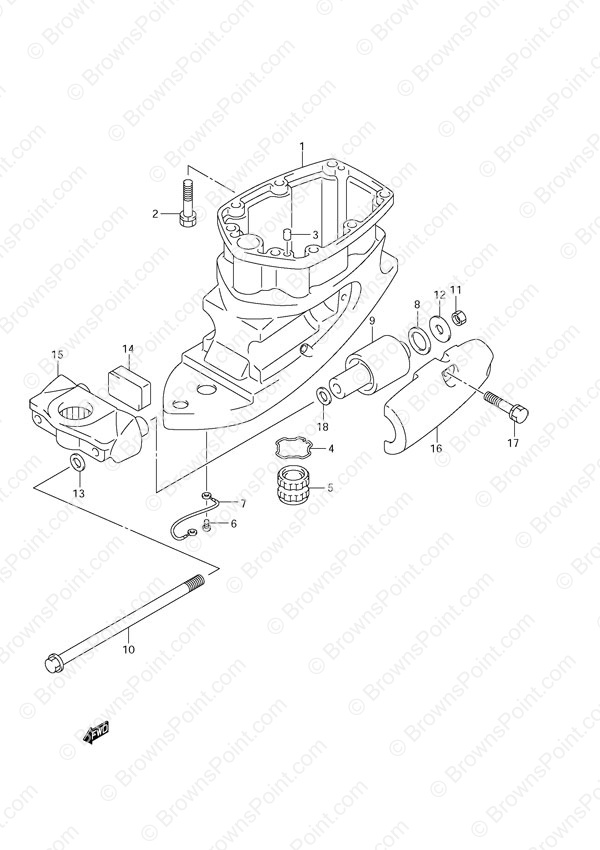

Fig. 41 - Driveshaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-90J02-0EP Drive Shaft Housing (L)
SKU: 52111-90J02-0EP Weight: 18.000000 Brand: Price: $ 716.85 |
Drive Shaft Housing (L) | 1 | $ 716.85 | DF140T | |
| 1-2 | 52111-90J12-0EP Drive Shaft Housing (X)
SKU: 52111-90J12-0EP Weight: 18.000000 Brand: Price: $ 960.90 |
Drive Shaft Housing (X) | 1 | $ 960.90 | DF140T DF140Z | |
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4 | 09387-45001 Set Ring (SUS)
SKU: 09387-45001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | Type:X | |
| 5 | 57130-92J01 Drive Shaft Bushing (X)
SKU: 57130-92J01 Weight: 0.320000 Brand: Price: $ 78.25 |
Drive Shaft Bushing (X) | 1 | $ 78.25 | Type:X | |
| 6 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 | ||
| 7-1 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | ||
| 7-2 | 36895-87D10 Wire Lead (L:310)
SKU: 36895-87D10 Weight: 0.060000 Brand: Price: $ 11.80 |
Wire Lead (L:310) | 1 | $ 11.80 | DF140T:682149 Newer DF140Z:680234 Newer | |
| 8 | 54121-87D01 Damper
SKU: 54121-87D01 Weight: 0.250000 Brand: Price: $ 4.41 |
Damper | 2 | $ 4.41 | ||
| 9 | 54160-90J20 Lower Mount
SKU: 54160-90J20 Weight: 1.000000 Brand: Price: $ 88.55 |
Lower Mount | 2 | $ 88.55 | ||
| 10 | 54166-90J11 Lower Mount Bolt
SKU: 54166-90J11 Weight: 0.100000 Brand: Price: $ 45.81 |
Lower Mount Bolt | 2 | $ 45.81 | ||
| 11 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 12 | 09160-12112 Washer (12x40x3.0)
SKU: 09160-12112 Weight: 0.060000 Brand: Price: $ 5.18 |
Washer (12x40x3.0) | 2 | $ 5.18 | ||
| 13 | 54114-90J10 Washer
SKU: 54114-90J10 Weight: 0.060000 Brand: Price: $ 6.03 |
Washer | 2 | $ 6.03 | ||
| 14 | 54151-90J00 Lower Thrust Mount
SKU: 54151-90J00 Weight: 0.100000 Brand: Price: $ 10.57 |
Lower Thrust Mount | 1 | $ 10.57 | ||
| 15 | 54211-90J01-0EP Lower Mount Bracket
SKU: 54211-90J01-0EP Weight: 1.000000 Brand: Price: $ 141.38 |
Lower Mount Bracket | 1 | $ 141.38 | ||
| 16 | 54221-90J02-0EP Lower Mount Cover
SKU: 54221-90J02-0EP Weight: 0.500000 Brand: Price: $ 103.74 |
Lower Mount Cover | 2 | $ 103.74 | ||
| 17 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 6 | $ 6.81 | ||
| 18 | 09160-12113 Washer (12.5x30x2.5)
SKU: 09160-12113 Weight: 0.060000 Brand: Price: $ 3.54 |
Washer (12.5x30x2.5) | 2 | $ 3.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
