Suzuki DF 115A Parts Listings - 2016
S/N 11503F-610001 to 11503F-61XXXX
S/N 11503Z-610001 to 11503Z-61XXXX
S/N 11504F-610001 to 11504F-61XXXX

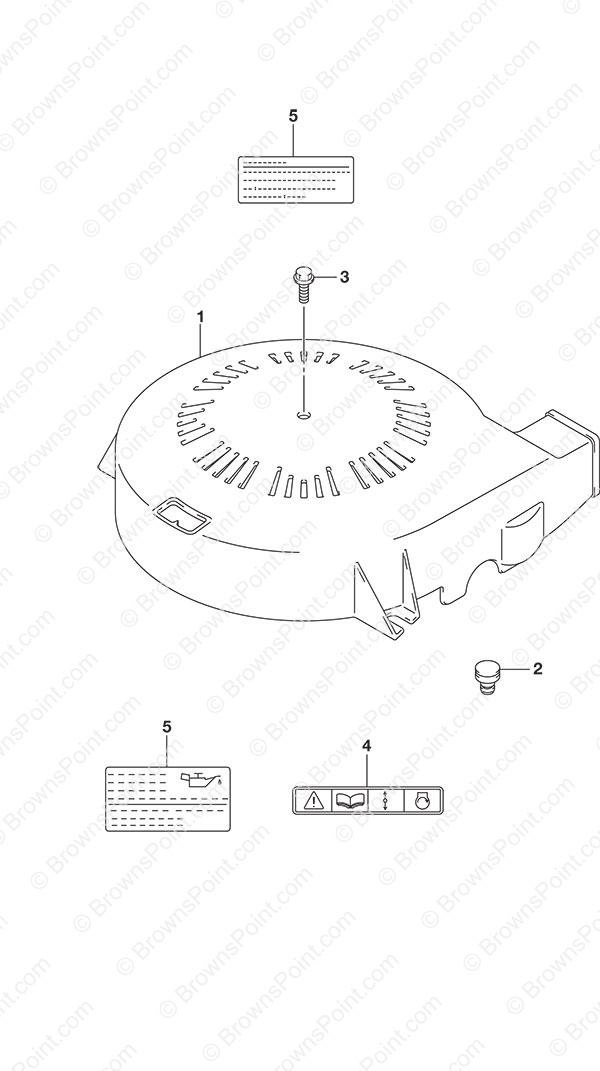

Fig. 136 - Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11510-90J00 Ring Gear Cover
SKU: 11510-90J00 Weight: 2.000000 Brand: Price: $ 58.28 |
Ring Gear Cover | 1 | $ 58.28 | ||
| 2 | 11512-99E01 Ring Gear Cover Cushion
SKU: 11512-99E01 Weight: 0.060000 Brand: Price: $ 3.62 |
Ring Gear Cover Cushion | 2 | $ 3.62 | ||
| 3 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 4 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 5 | 61494-90J00 Oil Label
SKU: 61494-90J00 Weight: 0.250000 Brand: Price: $ 4.25 |
Oil Label | 1 | $ 4.25 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
