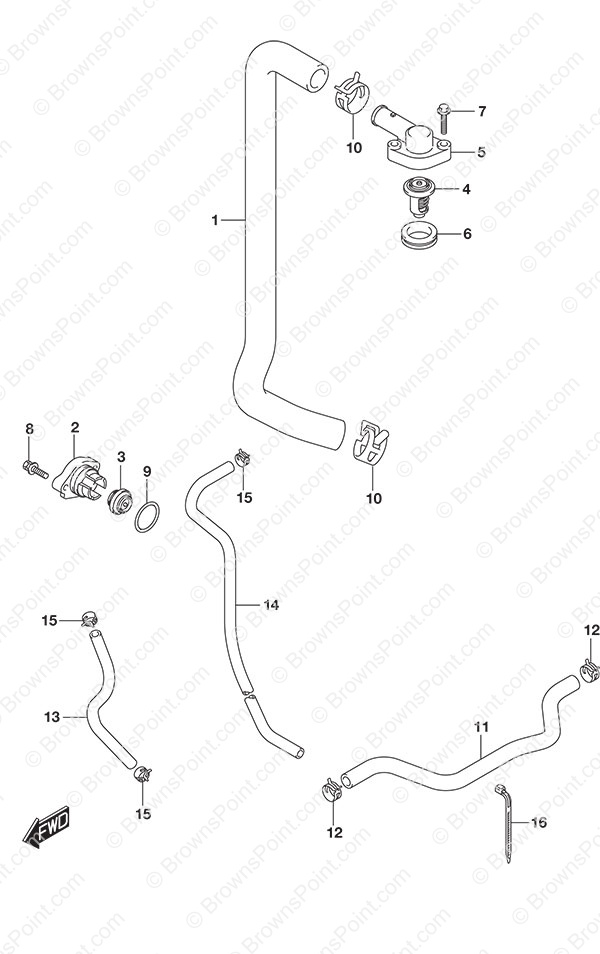

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 11196-87L00 Water Return Hose SKU: 11196-87L00 Weight: 0.500000 Brand: Price: $ 43.48 |
Water Return Hose | 1 | $ 43.48 | ||
2-1 | 17611-90J00 Water Pressure Valve Cover SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | Black | |
2-2 | 17611-90J00 Water Pressure Valve Cover SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | ||
3 | 17660-99E01 Water Pressure Valve SKU: 17660-99E01 Weight: 0.125000 Brand: Price: $ 17.21 |
Water Pressure Valve | 1 | $ 17.21 | ||
4-1 | 17670-90J01 Thermostat (60c) SKU: 17670-90J01 Weight: 0.250000 Brand: Price: $ 62.65 |
Thermostat (60c) | 1 | $ 62.65 | Standard | |
4-2 | 17670-90J11 Thermostat (71c) SKU: 17670-90J11 Weight: 0.120000 Brand: Price: $ 62.65 |
Thermostat (71c) | 1 | $ 62.65 | Optional | |
5 | 17681-87L00 Thermostat Cover SKU: 17681-87L00 Weight: 0.250000 Brand: Price: $ 45.73 |
Thermostat Cover | 1 | $ 45.73 | ||
6 | 17685-87L01 Thermostat Cover Seal SKU: 17685-87L01 Weight: 0.060000 Brand: Price: $ 2.03 |
Thermostat Cover Seal | 1 | $ 2.03 | ||
7 | 01550-06307 BOLT SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
8 | 09116-06121 Bolt (6x25) SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
9 | 09280-26006 O-Ring SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
10 | 09401-26408 Clip SKU: 09401-26408 Weight: 0.060000 Brand: Price: $ 3.57 |
Clip | 2 | $ 3.57 | ||
11 | 17915-87L00 Water Flush Hose SKU: 17915-87L00 Weight: 0.250000 Brand: Price: $ 15.10 |
Water Flush Hose | 1 | $ 15.10 | ||
12 | 09401-15414 Clip SKU: 09401-15414 Weight: 0.062500 Brand: Price: $ 2.34 |
Clip | 2 | $ 2.34 | ||
13 | 09352-50006-600 Hose (5x9x600) SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->320 | |
14 | 09352-50006-600 Hose (5x9x600) SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->190 | |
15 | 09401-08413 Clip SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 3 | $ 2.09 | ||
16 | 09407-11401 Clamp (L:95) SKU: 09407-11401 Weight: 0.060000 Brand: Price: $ 2.28 |
Clamp (L:95) | 1 | $ 2.28 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
