Suzuki DF 70A Parts Listings - 2016
S/N 07003F-610001 to 07003F-61XXXX

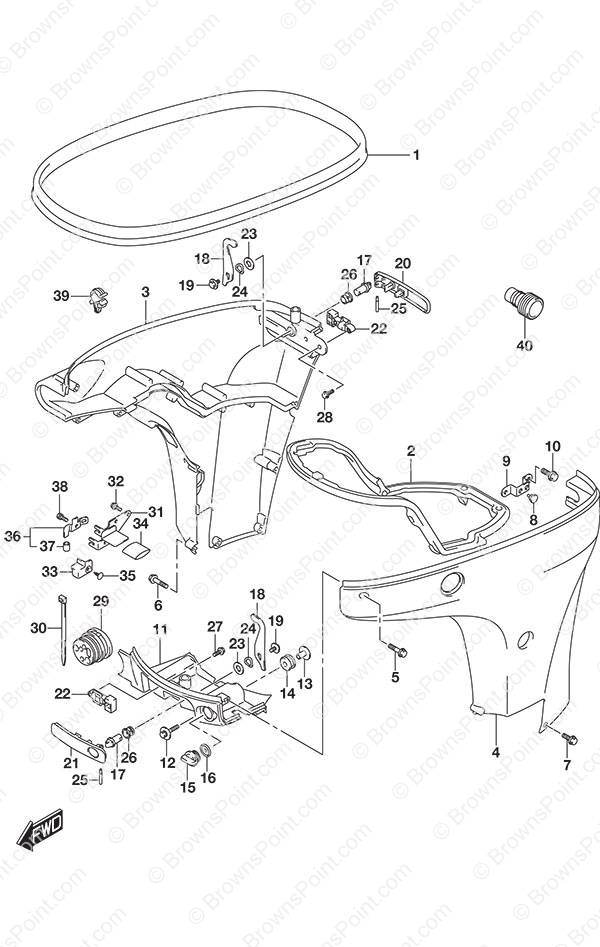

Fig. 410 - Side Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61112-99E01 Side Cover Rubber Seal
SKU: 61112-99E01 Weight: 0.740000 Brand: Price: $ 55.50 |
Side Cover Rubber Seal | 1 | $ 55.50 | ||
| 2 | 61134-87L01 SEAL,SIDE COVER
SKU: 61134-87L01 Weight: 0.000000 Brand: Price: $ 47.06 |
SEAL,SIDE COVER | 1 | $ 47.06 | ||
| 3-1 | 61811-87L20-0EP Starboard Side Cover
SKU: 61811-87L20-0EP Weight: 75.000000 Brand: Price: $ 620.48 |
Starboard Side Cover | 1 | $ 620.48 | Black | |
| 3-2 | 61811-87L20-Y5S Starboard Side Cover
SKU: 61811-87L20-Y5S Weight: 75.000000 Brand: Price: $ 514.24 |
Starboard Side Cover | 1 | $ 514.24 | White | |
| 4-1 | 61821-87L21-0EP Port Side Cover
SKU: 61821-87L21-0EP Weight: 75.000000 Brand: Price: $ 625.08 |
Port Side Cover | 1 | $ 625.08 | Black | |
| 4-2 | 61821-87L21-Y5S Port Side Cover
SKU: 61821-87L21-Y5S Weight: 75.000000 Brand: Price: $ 523.94 |
Port Side Cover | 1 | $ 523.94 | White | |
| 5 | 09139-06249 SCREW
SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 8 | $ 1.96 | ||
| 6 | 09136-06149 Screw (6x55)
SKU: 09136-06149 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw (6x55) | 2 | $ 3.71 | ||
| 7 | 09136-06161 Screw (6x17)
SKU: 09136-06161 Weight: 0.060000 Brand: Price: $ 3.16 |
Screw (6x17) | 3 | $ 3.16 | ||
| 8 | 09321-08026 CUSHION
SKU: 09321-08026 Weight: 0.000000 Brand: Price: $ 1.95 |
CUSHION | 2 | $ 1.95 | ||
| 9 | 61827-87L00 Side Cover Holder (NLA)
SKU: 61827-87L00 Weight: 1.000000 Brand: Price: $ 15.88 |
Side Cover Holder (NLA) | 1 | $ 15.88 | ||
| 10 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 11-1 | 61831-87L20-0EP Front Panel
SKU: 61831-87L20-0EP Weight: 1.000000 Brand: Price: $ 169.36 |
Front Panel | 1 | $ 169.36 | Black | |
| 11-2 | 61831-87L20-Y5S Front Panel
SKU: 61831-87L20-Y5S Weight: 1.000000 Brand: Price: $ 169.36 |
Front Panel | 1 | $ 169.36 | White | |
| 12 | 09116-08174 Bolt (8x38)
SKU: 09116-08174 Weight: 0.060000 Brand: Price: $ 4.19 |
Bolt (8x38) | 2 | $ 4.19 | ||
| 13 | 09169-08039 Washer (8.5x30x1.5) (NLA)
SKU: 09169-08039 Weight: 0.060000 Brand: Price: $ 4.91 |
Washer (8.5x30x1.5) (NLA) | 2 | $ 4.91 | ||
| 15 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 16 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 17 | 61632-93J00 Engine Cover Hook Shaft
SKU: 61632-93J00 Weight: 0.125000 Brand: Price: $ 37.52 |
Engine Cover Hook Shaft | 2 | $ 37.52 | ||
| 18 | 61641-87L00 Engine Cover Hook
SKU: 61641-87L00 Weight: 0.200000 Brand: Price: $ 22.08 |
Engine Cover Hook | 2 | $ 22.08 | ||
| 19 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 2 | $ 2.98 | ||
| 20 | 61633-87L00 Rear Hook Lever
SKU: 61633-87L00 Weight: 0.200000 Brand: Price: $ 44.87 |
Rear Hook Lever | 1 | $ 44.87 | ||
| 21 | 61645-87L00 Front Hook Lever (NLA)
SKU: 61645-87L00 Weight: 0.200000 Brand: Price: $ 36.74 |
Front Hook Lever (NLA) | 1 | $ 36.74 | ||
| 22 | 61673-93J11 Hook Lever Latch
SKU: 61673-93J11 Weight: 0.250000 Brand: Price: $ 14.60 |
Hook Lever Latch | 2 | $ 14.60 | ||
| 23 | 09160-13014 Washer (13.2x25x1.0)
SKU: 09160-13014 Weight: 0.060000 Brand: Price: $ 2.99 |
Washer (13.2x25x1.0) | 2 | $ 2.99 | ||
| 14 | 09320-11023 CUSHION,FRONT P
SKU: 09320-11023 Weight: 0.000000 Brand: Price: $ 2.91 |
CUSHION,FRONT P | 2 | $ 2.91 | ||
| 24 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 2 | $ 2.04 | ||
| 25 | 09202-04022 Hook Lever Pin
SKU: 09202-04022 Weight: 0.060000 Brand: Price: $ 2.82 |
Hook Lever Pin | 2 | $ 2.82 | ||
| 26 | 09306-13007 Bushing
SKU: 09306-13007 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 2 | $ 2.81 | ||
| 27 | 01550-05107 BOLT
SKU: 01550-05107 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 28 | 01550-05167 BOLT
SKU: 01550-05167 Weight: 0.060000 Brand: Price: $ 2.11 |
BOLT | 2 | $ 2.11 | ||
| 29 | 61124-87L00 Remocon Cable Grommet
SKU: 61124-87L00 Weight: 0.500000 Brand: Price: $ 13.73 |
Remocon Cable Grommet | 1 | $ 13.73 | ||
| 30 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 31 | 67341-87L00 Remocon Cable Holder
SKU: 67341-87L00 Weight: 0.250000 Brand: Price: $ 49.77 |
Remocon Cable Holder | 1 | $ 49.77 | ||
| 32 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 33 | 67345-87L00 Protector
SKU: 67345-87L00 Weight: 0.200000 Brand: Price: $ 6.00 |
Protector | 1 | $ 6.00 | ||
| 34 | 67346-87L00 Protector Holder
SKU: 67346-87L00 Weight: 0.250000 Brand: Price: $ 3.46 |
Protector Holder | 1 | $ 3.46 | ||
| 35 | 09409-10304-5ES Clip
SKU: 09409-10304-5ES Weight: 0.200000 Brand: Price: $ 2.11 |
Clip | 1 | $ 2.11 | ||
| 36 | 67350-87L02 Remote Control Cable Stopper
SKU: 67350-87L02 Weight: 0.500000 Brand: Price: $ 10.09 |
Remote Control Cable Stopper | 1 | $ 10.09 | ||
| 37 | 09352-70104-600 Hose (7x10.2x600)
SKU: 09352-70104-600 Weight: 0.060000 Brand: Price: $ 5.72 |
Hose (7x10.2x600) | 2 | $ 5.72 | L:600->14 | |
| 38 | 01570-06127 BOLT
SKU: 01570-06127 Weight: 0.062500 Brand: Price: $ 2.52 |
BOLT | 1 | $ 2.52 | ||
| 39 | 09403-11320 Clamp
SKU: 09403-11320 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp | 1 | $ 2.52 | ||
| 40 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
