Suzuki DF 70A Parts Listings - 2016
S/N 07003F-610001 to 07003F-61XXXX

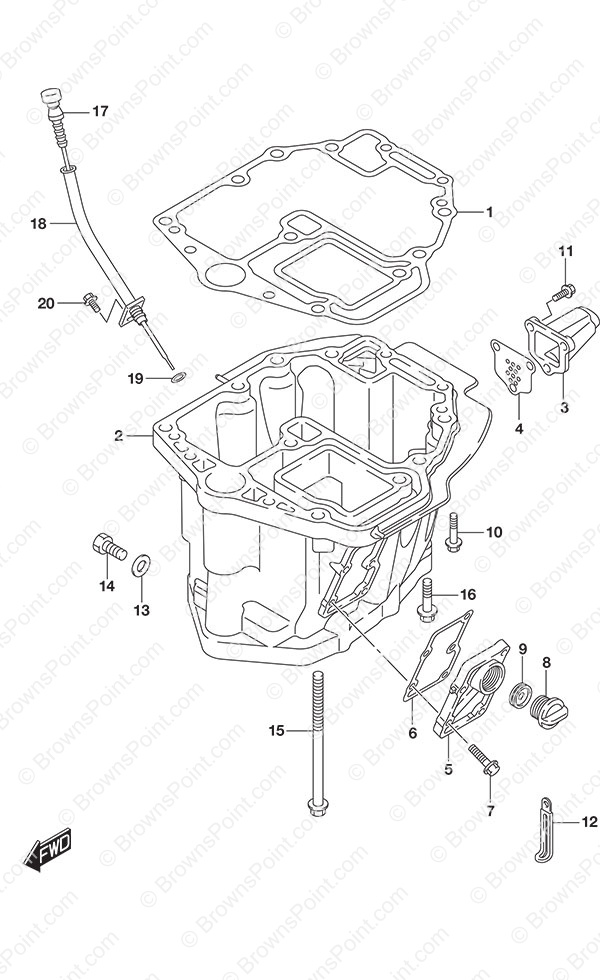

Fig. 180 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11489-87L00 Oil Pan Gasket
SKU: 11489-87L00 Weight: 0.220000 Brand: Price: $ 37.95 |
Oil Pan Gasket | 1 | $ 37.95 | ||
| 2-1 | 11501-87L10-0EP Oil Pan (NLA)
SKU: 11501-87L10-0EP Weight: 20.000000 Brand: Price: $ 609.99 |
Oil Pan (NLA) | 1 | $ 609.99 | Black | |
| 2-2 | 11501-87L10-Y5S Oil Pan
SKU: 11501-87L10-Y5S Weight: 20.000000 Brand: Price: $ 0.00 |
Oil Pan | 1 | $ 0.00 | White | |
| 3-1 | 11541-87L00-0EP Exhaust Pipe (NLA)
SKU: 11541-87L00-0EP Weight: 0.250000 Brand: Price: $ 24.65 |
Exhaust Pipe (NLA) | 1 | $ 24.65 | Black | |
| 3-2 | 11541-87L00-Y5S Exhaust Pipe
SKU: 11541-87L00-Y5S Weight: 0.250000 Brand: Price: $ 0.00 |
Exhaust Pipe | 1 | $ 0.00 | White | |
| 4 | 11542-87L00 Exhaust Tube Gasket
SKU: 11542-87L00 Weight: 0.100000 Brand: Price: $ 6.25 |
Exhaust Tube Gasket | 1 | $ 6.25 | ||
| 5-1 | 11551-87L00-0EP Water Jacket Oil Pan Cover
SKU: 11551-87L00-0EP Weight: 0.500000 Brand: Price: $ 61.69 |
Water Jacket Oil Pan Cover | 1 | $ 61.69 | Black | |
| 5-2 | 11551-87L00-Y5S Water Jacket Oil Pan Cover
SKU: 11551-87L00-Y5S Weight: 0.500000 Brand: Price: $ 0.00 |
Water Jacket Oil Pan Cover | 1 | $ 0.00 | White | |
| 6 | 11552-87L00 Water Jacket Oil Pan Cover Gasket
SKU: 11552-87L00 Weight: 0.100000 Brand: Price: $ 4.47 |
Water Jacket Oil Pan Cover Gasket | 1 | $ 4.47 | ||
| 7 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 5 | $ 2.72 | ||
| 8 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 9 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 10 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 4 | $ 4.11 | ||
| 11 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 3 | $ 2.55 | ||
| 12 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 13 | 09168-12012 Oil Drain Plug Gasket
SKU: 09168-12012 Weight: 0.060000 Brand: Price: $ 1.85 |
Oil Drain Plug Gasket | 1 | $ 1.85 | ||
| 14 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
| 15 | 09116-10129 Bolt (10x160)
SKU: 09116-10129 Weight: 0.200000 Brand: Price: $ 18.97 |
Bolt (10x160) | 6 | $ 18.97 | ||
| 16 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 2 | $ 6.81 | ||
| 17 | 16910-87L00 Oil Level Gauge
SKU: 16910-87L00 Weight: 0.100000 Brand: Price: $ 18.24 |
Oil Level Gauge | 1 | $ 18.24 | ||
| 18 | 16930-87L00 Oil Level Gauge Guide (NLA)
SKU: 16930-87L00 Weight: 0.100000 Brand: Price: $ 20.14 |
Oil Level Gauge Guide (NLA) | 1 | $ 20.14 | ||
| 19 | 09280-09008 O-Ring
SKU: 09280-09008 Weight: 0.060000 Brand: Price: $ 3.16 |
O-Ring | 1 | $ 3.16 | ||
| 20 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
