Suzuki DF 70A Parts Listings - 2016
S/N 07003F-610001 to 07003F-61XXXX

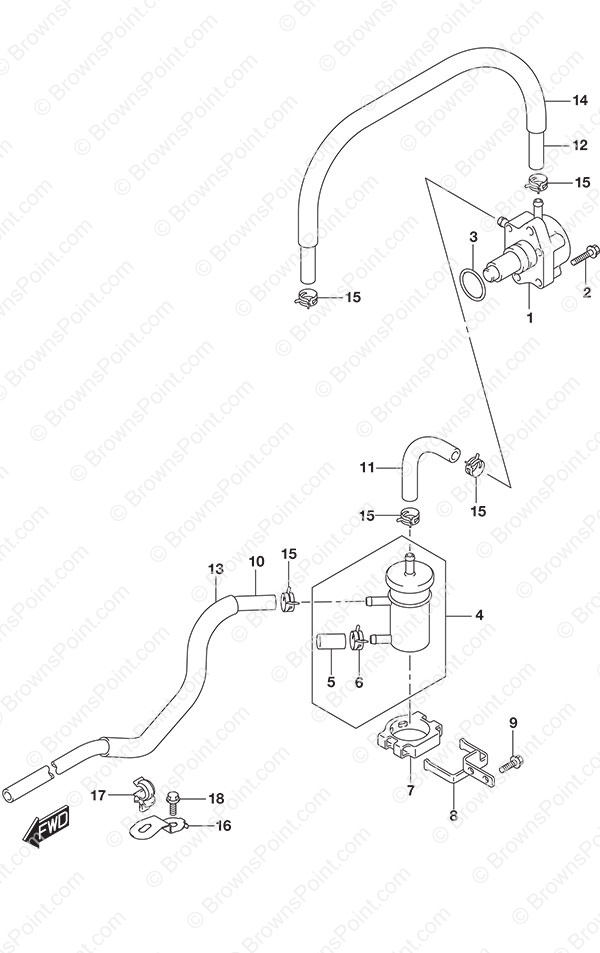

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-90J11 Fuel Pump Assembly
SKU: 15100-90J11 Weight: 0.500000 Brand: Price: $ 165.75 |
Fuel Pump Assembly | 1 | $ 165.75 | ||
| 2 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 4 | 15410-87L00 Fuel Filter
SKU: 15410-87L00 Weight: 0.100000 Brand: Price: $ 17.76 |
Fuel Filter | 1 | $ 17.76 | ||
| 5 | 15419-87J00 Fuel Filter Cap
SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.40 |
Fuel Filter Cap | 1 | $ 7.40 | ||
| 6 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 7 | 15422-96J01 Fuel Filter Clamp
SKU: 15422-96J01 Weight: 0.060000 Brand: Price: $ 6.41 |
Fuel Filter Clamp | 1 | $ 6.41 | ||
| 8 | 15421-87L00 Fuel Filter Bracket
SKU: 15421-87L00 Weight: 0.250000 Brand: Price: $ 13.09 |
Fuel Filter Bracket | 1 | $ 13.09 | ||
| 9 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 15190-90J30 Fuel Hose
SKU: 15190-90J30 Weight: 0.500000 Brand: Price: $ 106.14 |
Fuel Hose | 1 | $ 106.14 | Joint to Filter | |
| 11 | 15192-87L11 Fuel Hose
SKU: 15192-87L11 Weight: 0.250000 Brand: Price: $ 15.41 |
Fuel Hose | 1 | $ 15.41 | Filter to Pump | |
| 12 | 09343-70503-600 Fuel Hose (7x12x600)
SKU: 09343-70503-600 Weight: 0.160000 Brand: Price: $ 53.16 |
Fuel Hose (7x12x600) | 1 | $ 53.16 | L:600->510 | |
| 13 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:600->340 | |
| 14 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->450 | |
| 15 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 5 | $ 2.09 | ||
| 16 | 15198-87L00 Fuel Hose Bracket
SKU: 15198-87L00 Weight: 0.125000 Brand: Price: $ 0.00 |
Fuel Hose Bracket | 1 | $ 0.00 | ||
| 17 | 09403-11320 Clamp
SKU: 09403-11320 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp | 1 | $ 2.52 | ||
| 18 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
