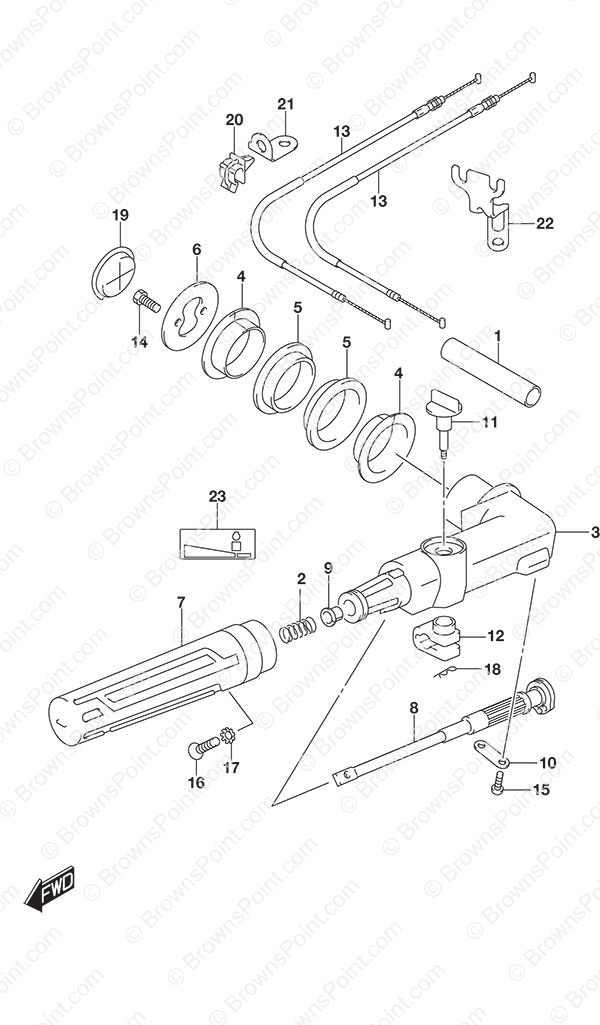

Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
---|---|---|---|---|---|---|
1 | 33833-97L50 Protector SKU: 33833-97L50 Weight: 0.060000 Brand: Price: $ 2.49 |
Protector | 1 | $ 2.49 | ||
2 | 09440-12027 Spring SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
3 | 63111-97L00-YAY Tiller Handle SKU: 63111-97L00-YAY Weight: 2.000000 Brand: Price: $ 69.88 |
Tiller Handle | 1 | $ 69.88 | ||
4 | 63115-97L00 Tiller Handle Bushing SKU: 63115-97L00 Weight: 0.060000 Brand: Price: $ 2.79 |
Tiller Handle Bushing | 2 | $ 2.79 | ||
5 | 63116-97L00 Tiller Handle Mount SKU: 63116-97L00 Weight: 0.060000 Brand: Price: $ 3.64 |
Tiller Handle Mount | 2 | $ 3.64 | ||
6 | 63125-97L00 Tiller Handle Stopper SKU: 63125-97L00 Weight: 0.060000 Brand: Price: $ 9.53 |
Tiller Handle Stopper | 1 | $ 9.53 | ||
7 | 63210-94L00 Handle Grip SKU: 63210-94L00 Weight: 1.500000 Brand: Price: $ 33.85 |
Handle Grip | 1 | $ 33.85 | ||
8 | 63220-97L00 Handle Rod SKU: 63220-97L00 Weight: 0.500000 Brand: Price: $ 17.68 |
Handle Rod | 1 | $ 17.68 | ||
9 | 63225-93200 Handle Rod Bushing SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
10 | 63228-97L00 Handle Rod Holder SKU: 63228-97L00 Weight: 0.060000 Brand: Price: $ 1.85 |
Handle Rod Holder | 1 | $ 1.85 | ||
11 | 63240-95L00 Throttle Adjust Knob SKU: 63240-95L00 Weight: 0.125000 Brand: Price: $ 10.78 |
Throttle Adjust Knob | 1 | $ 10.78 | ||
12 | 63241-95L01 Handle Grip Adjuster SKU: 63241-95L01 Weight: 0.125000 Brand: Price: $ 4.39 |
Handle Grip Adjuster | 1 | $ 4.39 | ||
13 | 63610-97L00 Throttle Cable Assembly SKU: 63610-97L00 Weight: 0.500000 Brand: Price: $ 15.84 |
Throttle Cable Assembly | 2 | $ 15.84 | ||
14 | 09116-06225 Bolt (6x16) SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 2 | $ 2.60 | ||
15 | 09125-05046 Screw (5x12) SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
16 | 09126-06026 Screw (6x23) SKU: 09126-06026 Weight: 0.060000 Brand: Price: $ 1.98 |
Screw (6x23) | 1 | $ 1.98 | ||
17 | 09163-06001 Lock Washer (6.4x12x0.5) SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
18 | 09385-04004 Snap Pin SKU: 09385-04004 Weight: 0.100000 Brand: Price: $ 1.74 |
Snap Pin | 1 | $ 1.74 | ||
19 | 09250-35006 Cap SKU: 09250-35006 Weight: 0.060000 Brand: Price: $ 4.69 |
Cap | 1 | $ 4.69 | ||
21 | 63615-97L00 Throttle Bracket SKU: 63615-97L00 Weight: 0.125000 Brand: Price: $ 2.34 |
Throttle Bracket | 1 | $ 2.34 | ||
22 | 19184-97L00 Throttle Cable Bracket SKU: 19184-97L00 Weight: 0.125000 Brand: Price: $ 5.96 |
Throttle Cable Bracket | 1 | $ 5.96 | ||
23 | 69714-97L00 Handle Grip Mark SKU: 69714-97L00 Weight: 0.060000 Brand: Price: $ 0.93 |
Handle Grip Mark | 1 | $ 0.93 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
