Suzuki DF 6A Parts Listings - 2017
S/N 00603F-710001 to 00603F-71XXXX

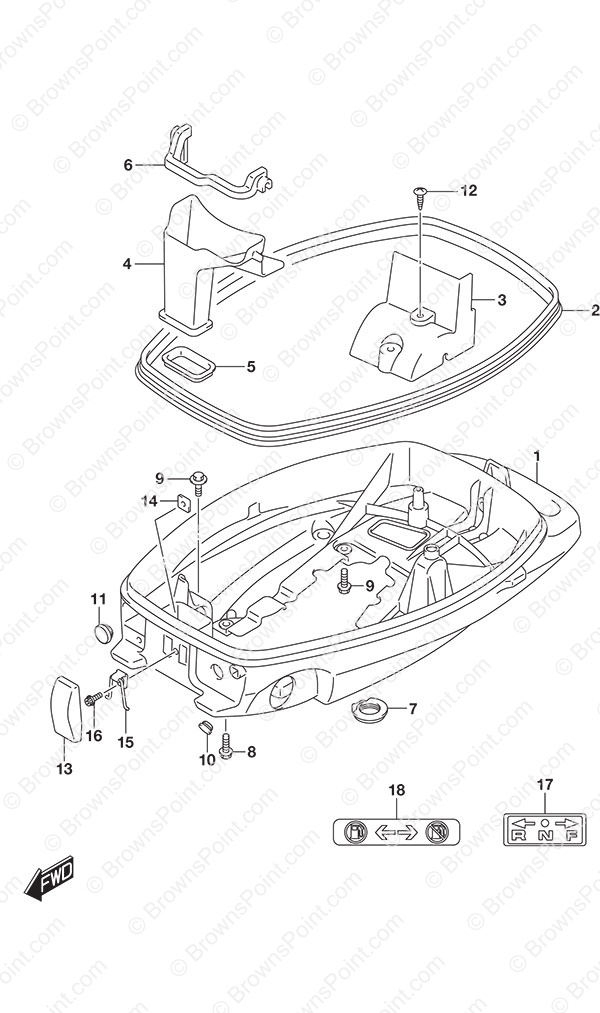

Fig. 412 - Lower Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61110-97L00-QGF Engine Lower Cover
SKU: 61110-97L00-QGF Weight: 10.000000 Brand: Price: $ 90.14 |
Engine Lower Cover | 1 | $ 90.14 | ||
| 2 | 61112-97L00 Engine Lower Cover Rubber
SKU: 61112-97L00 Weight: 2.000000 Brand: Price: $ 23.51 |
Engine Lower Cover Rubber | 1 | $ 23.51 | ||
| 3 | 61117-97L00 Air Intake Lower Cover
SKU: 61117-97L00 Weight: 0.250000 Brand: Price: $ 8.15 |
Air Intake Lower Cover | 1 | $ 8.15 | ||
| 4 | 61133-97L00 Air Vent Duct
SKU: 61133-97L00 Weight: 0.250000 Brand: Price: $ 10.42 |
Air Vent Duct | 1 | $ 10.42 | ||
| 5 | 61135-97L00 Air Vent Duct Lower Cushion
SKU: 61135-97L00 Weight: 0.060000 Brand: Price: $ 3.64 |
Air Vent Duct Lower Cushion | 1 | $ 3.64 | ||
| 6 | 61137-97L00 Air Vent Duct Upper Cushion
SKU: 61137-97L00 Weight: 0.060000 Brand: Price: $ 3.64 |
Air Vent Duct Upper Cushion | 1 | $ 3.64 | ||
| 7 | 61189-97L00 Oil Drain Grommet
SKU: 61189-97L00 Weight: 0.060000 Brand: Price: $ 3.48 |
Oil Drain Grommet | 1 | $ 3.48 | ||
| 8 | 09116-06227 Bolt (6x20)
SKU: 09116-06227 Weight: 0.060000 Brand: Price: $ 2.91 |
Bolt (6x20) | 2 | $ 2.91 | ||
| 9 | 09116-06509 Bolt (6x20)
SKU: 09116-06509 Weight: 0.060000 Brand: Price: $ 2.43 |
Bolt (6x20) | 4 | $ 2.43 | ||
| 10 | 09250-10030 CAP(OD:15)
SKU: 09250-10030 Weight: 0.100000 Brand: Price: $ 1.66 |
CAP(OD:15) | 1 | $ 1.66 | ||
| 11 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 1 | $ 1.70 | ||
| 12 | 61611-91J11 Engine Cover Fastener
SKU: 61611-91J11 Weight: 1.250000 Brand: Price: $ 2.26 |
Engine Cover Fastener | 2 | $ 2.26 | ||
| 13 | 61626-97L00 Fastener Lever Nut
SKU: 61626-97L00 Weight: 0.060000 Brand: Price: $ 1.85 |
Fastener Lever Nut | 2 | $ 1.85 | ||
| 14 | 61640-91J10 Fastener Lever
SKU: 61640-91J10 Weight: 0.060000 Brand: Price: $ 16.56 |
Fastener Lever | 2 | $ 16.56 | ||
| 15 | 09106-05035 Bolt (5x14)
SKU: 09106-05035 Weight: 0.060000 Brand: Price: $ 2.11 |
Bolt (5x14) | 2 | $ 2.11 | ||
| 16 | 65720-986L0 Fuel Connector
SKU: 65720-986L0 Weight: 0.100000 Brand: Price: $ 57.47 |
Fuel Connector | 1 | $ 57.47 | ||
| 17 | 65727-91JL0 Fuel Connector Plug Cap
SKU: 65727-91JL0 Weight: 0.060000 Brand: Price: $ 8.52 |
Fuel Connector Plug Cap | 1 | $ 8.52 | ||
| 18 | 09103-06237 Bolt (6x12.5)
SKU: 09103-06237 Weight: 0.060000 Brand: Price: $ 3.52 |
Bolt (6x12.5) | 1 | $ 3.52 | ||
| 19 | 09160-06085 Washer (6.5x15x1.0)
SKU: 09160-06085 Weight: 0.060000 Brand: Price: $ 1.36 |
Washer (6.5x15x1.0) | 1 | $ 1.36 | ||
| 20 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 21 | 61211-97J00 Fuel Cock Mark
SKU: 61211-97J00 Weight: 0.100000 Brand: Price: $ 2.42 |
Fuel Cock Mark | 1 | $ 2.42 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
