Suzuki DF 6A Parts Listings - 2017
S/N 00603F-710001 to 00603F-71XXXX

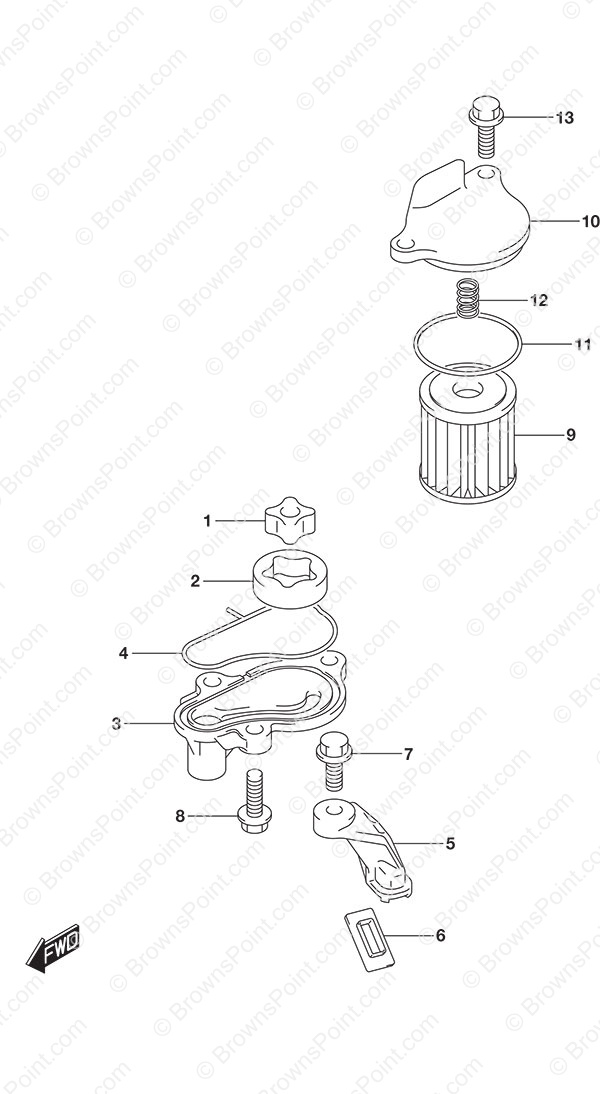

Fig. 175 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 16131-97L00 Oil Pump Inner Rotor
SKU: 16131-97L00 Weight: 0.250000 Brand: Price: $ 6.74 |
Oil Pump Inner Rotor | 1 | $ 6.74 | ||
| 2 | 16132-97L00 Oil Pump Outer Rotor
SKU: 16132-97L00 Weight: 0.250000 Brand: Price: $ 6.74 |
Oil Pump Outer Rotor | 1 | $ 6.74 | ||
| 3 | 16161-97L00 Oil Pump Rotor Plate
SKU: 16161-97L00 Weight: 0.250000 Brand: Price: $ 18.79 |
Oil Pump Rotor Plate | 1 | $ 18.79 | ||
| 4 | 16165-97L00 Oil Pump Cover Seal
SKU: 16165-97L00 Weight: 0.250000 Brand: Price: $ 8.24 |
Oil Pump Cover Seal | 1 | $ 8.24 | ||
| 5 | 16520-97L00 Oil Strainer
SKU: 16520-97L00 Weight: 0.250000 Brand: Price: $ 9.82 |
Oil Strainer | 1 | $ 9.82 | ||
| 6 | 16524-97L00 Oil Strainer Grommet
SKU: 16524-97L00 Weight: 0.060000 Brand: Price: $ 3.77 |
Oil Strainer Grommet | 1 | $ 3.77 | ||
| 7 | 01550-0620A BOLT
SKU: 01550-0620A Weight: 0.060000 Brand: Price: $ 2.08 |
BOLT | 1 | $ 2.08 | ||
| 8 | 01547-0620C Bolt
SKU: 01547-0620C Weight: 0.125000 Brand: Price: $ 2.12 |
Bolt | 3 | $ 2.12 | ||
| 9 | 16510-16H11 Engine Oil Filter
SKU: 16510-16H11 Weight: 0.250000 Brand: Price: $ 11.72 |
Engine Oil Filter | 1 | $ 11.72 | ||
| 10 | 16512-97L00 Oil Filter Cap
SKU: 16512-97L00 Weight: 0.250000 Brand: Price: $ 21.08 |
Oil Filter Cap | 1 | $ 21.08 | ||
| 11 | 09280-39002 O-Ring
SKU: 09280-39002 Weight: 0.060000 Brand: Price: $ 3.38 |
O-Ring | 1 | $ 3.38 | ||
| 12 | 09440-10038 Spring
SKU: 09440-10038 Weight: 0.060000 Brand: Price: $ 3.32 |
Spring | 1 | $ 3.32 | ||
| 13 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 2 | $ 1.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
