Suzuki DF 6A Parts Listings - 2017
S/N 00603F-710001 to 00603F-71XXXX

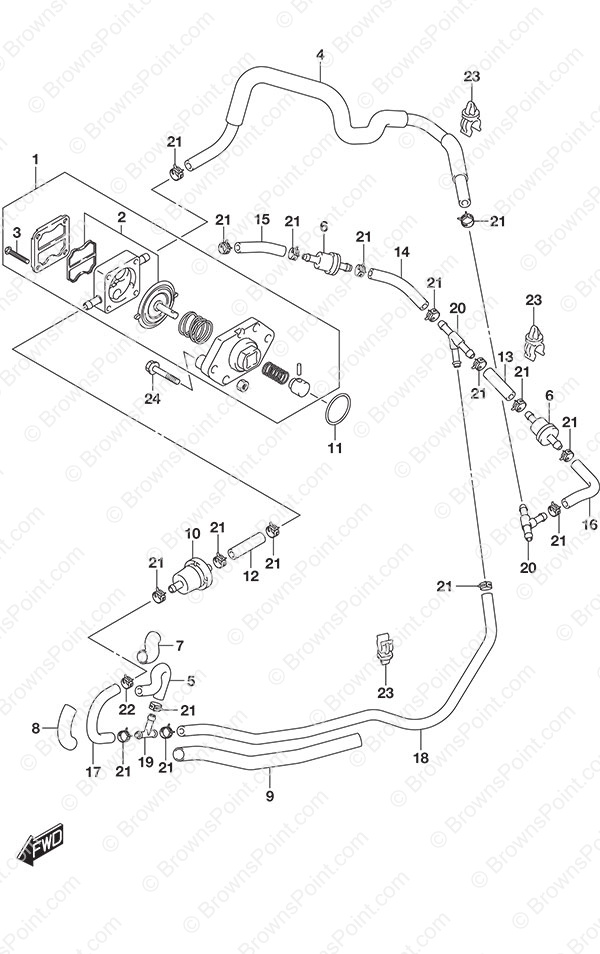

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-91J03 Fuel Pump Assembly
SKU: 15100-91J03 Weight: 0.380000 Brand: Price: $ 153.68 |
Fuel Pump Assembly | 1 | $ 153.68 | ||
| 2 | 15170-91J02 Fuel Pump Diaphragm Set
SKU: 15170-91J02 Weight: 0.060000 Brand: Price: $ 26.99 |
Fuel Pump Diaphragm Set | 1 | $ 26.99 | ||
| 3 | 15251-91J00 Screw
SKU: 15251-91J00 Weight: 0.060000 Brand: Price: $ 3.00 |
Screw | 4 | $ 3.00 | ||
| 4 | 15191-97L00 Fuel Hose (Pump to 3 Way)
SKU: 15191-97L00 Weight: 0.250000 Brand: Price: $ 22.83 |
Fuel Hose (Pump to 3 Way) | 1 | $ 22.83 | ||
| 5 | 15192-97J00 Replaced by 15192-97JL0
SKU: 15192-97J00 Weight: 0.250000 Brand: Price: $ 19.69 |
Replaced by 15192-97JL0 | 1 | $ 19.69 | ||
| 6 | 15850-97L00 Fuel Return Check Valve
SKU: 15850-97L00 Weight: 0.250000 Brand: Price: $ 18.79 |
Fuel Return Check Valve | 2 | $ 18.79 | ||
| 7 | 33833-97L00 Fuel Hose Protector
SKU: 33833-97L00 Weight: 0.250000 Brand: Price: $ 1.66 |
Fuel Hose Protector | 1 | $ 1.66 | ||
| 8 | 33833-97L10 Fuel Hose Protector
SKU: 33833-97L10 Weight: 0.250000 Brand: Price: $ 1.72 |
Fuel Hose Protector | 1 | $ 1.72 | ||
| 9 | 33833-97L20 Fuel Hose Protector
SKU: 33833-97L20 Weight: 0.250000 Brand: Price: $ 3.19 |
Fuel Hose Protector | 1 | $ 3.19 | ||
| 10 | 44330-13H00 Fuel Filter
SKU: 44330-13H00 Weight: 0.060000 Brand: Price: $ 15.99 |
Fuel Filter | 1 | $ 15.99 | ||
| 11 | 09280-27006 O-Ring
SKU: 09280-27006 Weight: 0.060000 Brand: Price: $ 3.19 |
O-Ring | 1 | $ 3.19 | ||
| 12 | 09343-50L01-040 Hose (5x10x40)
SKU: 09343-50L01-040 Weight: 0.250000 Brand: Price: $ 3.19 |
Hose (5x10x40) | 1 | $ 3.19 | Filter to Pump | |
| 13 | 09343-50L01-040 Hose (5x10x40)
SKU: 09343-50L01-040 Weight: 0.250000 Brand: Price: $ 3.19 |
Hose (5x10x40) | 1 | $ 3.19 | 3 Way to Valve | |
| 14 | 09343-50L01-040 Hose (5x10x40)
SKU: 09343-50L01-040 Weight: 0.250000 Brand: Price: $ 3.19 |
Hose (5x10x40) | 1 | $ 3.19 | Valve to 3 Way | |
| 15 | 09343-50L01-050 Hose (5x10x50)
SKU: 09343-50L01-050 Weight: 0.250000 Brand: Price: $ 2.63 |
Hose (5x10x50) | 1 | $ 2.63 | Cock to Valve | |
| 16 | 09343-50L01-080 Hose (5x10x80)
SKU: 09343-50L01-080 Weight: 0.250000 Brand: Price: $ 4.49 |
Hose (5x10x80) | 1 | $ 4.49 | Valve to 3 Way | |
| 17 | 09343-50L01-110 Hose (5x10x110)
SKU: 09343-50L01-110 Weight: 0.250000 Brand: Price: $ 5.46 |
Hose (5x10x110) | 1 | $ 5.46 | 3 Way to Filter | |
| 18 | 09343-50L01-440 Hose (5x10x440)
SKU: 09343-50L01-440 Weight: 0.250000 Brand: Price: $ 20.51 |
Hose (5x10x440) | 1 | $ 20.51 | 3 Way to 3 Way | |
| 19 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 1 | $ 2.65 | ||
| 20 | 09367-06007 3 Way
SKU: 09367-06007 Weight: 0.060000 Brand: Price: $ 3.52 |
3 Way | 2 | $ 3.52 | ||
| 21 | 09401-09404 Clip
SKU: 09401-09404 Weight: 0.060000 Brand: Price: $ 2.06 |
Clip | 17 | $ 2.06 | ||
| 22 | 09401-11424 Clip
SKU: 09401-11424 Weight: 0.000000 Brand: Price: $ 1.87 |
Clip | 1 | $ 1.87 | ||
| 23 | 09403-09326 Clamp
SKU: 09403-09326 Weight: 0.060000 Brand: Price: $ 2.72 |
Clamp | 3 | $ 2.72 | ||
| 24 | 01550-0630C BOLT
SKU: 01550-0630C Weight: 0.060000 Brand: Price: $ 2.24 |
BOLT | 2 | $ 2.24 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
