Suzuki DF 4A Parts Listings - 2017
S/N 00403F-710001 to 00403F-71XXXX

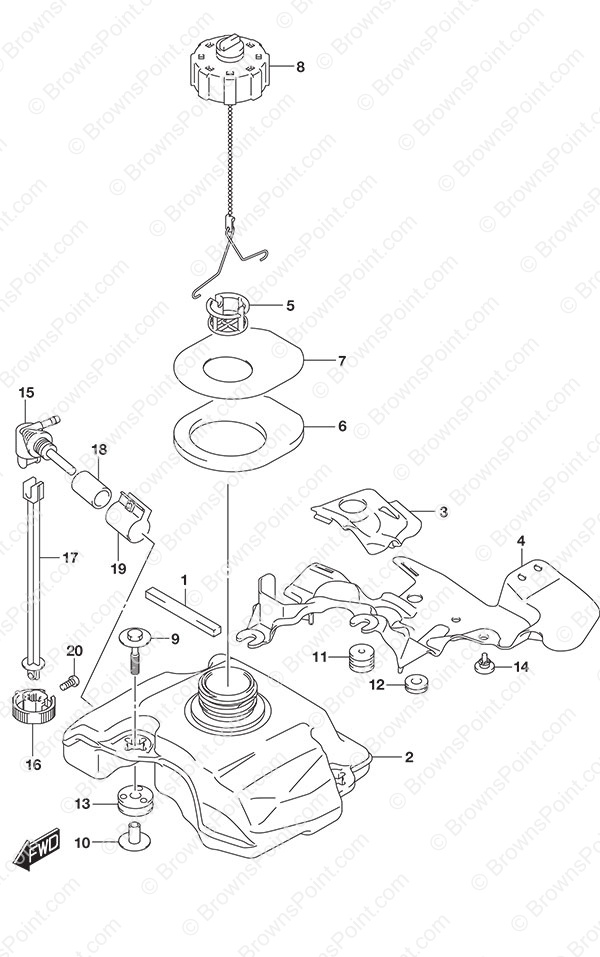

Fig. 432 - Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61416-97L00 Fuel Tank Guard
SKU: 61416-97L00 Weight: 0.060000 Brand: Price: $ 1.41 |
Fuel Tank Guard | 1 | $ 1.41 | ||
| 2 | 65110-97L10 Fuel Tank
SKU: 65110-97L10 Weight: 1.000000 Brand: Price: $ 81.13 |
Fuel Tank | 1 | $ 81.13 | ||
| 3 | 65112-97L00 Fuel Tank Plate Cover
SKU: 65112-97L00 Weight: 0.060000 Brand: Price: $ 4.08 |
Fuel Tank Plate Cover | 1 | $ 4.08 | ||
| 4 | 65113-97L00 Fuel Tank Plate
SKU: 65113-97L00 Weight: 0.500000 Brand: Price: $ 8.15 |
Fuel Tank Plate | 1 | $ 8.15 | ||
| 5 | 65136-97L00 Fuel Tank Inlet Filter
SKU: 65136-97L00 Weight: 0.125000 Brand: Price: $ 12.43 |
Fuel Tank Inlet Filter | 1 | $ 12.43 | ||
| 6 | 65281-97L00 Fuel Tank Grommet
SKU: 65281-97L00 Weight: 0.250000 Brand: Price: $ 4.06 |
Fuel Tank Grommet | 1 | $ 4.06 | ||
| 7 | 65284-97L00 Fuel Tank Grommet Rubber
SKU: 65284-97L00 Weight: 0.250000 Brand: Price: $ 3.23 |
Fuel Tank Grommet Rubber | 1 | $ 3.23 | ||
| 8 | 65510-97J00 Fuel Tank Cap Assembly
SKU: 65510-97J00 Weight: 0.250000 Brand: Price: $ 36.52 |
Fuel Tank Cap Assembly | 1 | $ 36.52 | ||
| 9 | 09116-06512 Bolt (6x35)
SKU: 09116-06512 Weight: 0.060000 Brand: Price: $ 2.11 |
Bolt (6x35) | 3 | $ 2.11 | ||
| 10 | 09169-06092 Washer
SKU: 09169-06092 Weight: 0.060000 Brand: Price: $ 2.97 |
Washer | 3 | $ 2.97 | ||
| 11 | 09320-05019 Cushion
SKU: 09320-05019 Weight: 0.200000 Brand: Price: $ 4.13 |
Cushion | 2 | $ 4.13 | ||
| 12 | 09320-08066 Cushion
SKU: 09320-08066 Weight: 0.250000 Brand: Price: $ 8.39 |
Cushion | 1 | $ 8.39 | ||
| 13 | 09320-09507 Cushion
SKU: 09320-09507 Weight: 0.060000 Brand: Price: $ 3.94 |
Cushion | 3 | $ 3.94 | ||
| 14 | 09321-08026 CUSHION
SKU: 09321-08026 Weight: 0.000000 Brand: Price: $ 1.95 |
CUSHION | 1 | $ 1.95 | ||
| 15 | 66100-97L00 Fuel Cock Assembly
SKU: 66100-97L00 Weight: 0.250000 Brand: Price: $ 27.96 |
Fuel Cock Assembly | 1 | $ 27.96 | ||
| 16 | 66121-97L00 Fuel Cock Lever
SKU: 66121-97L00 Weight: 0.060000 Brand: Price: $ 4.08 |
Fuel Cock Lever | 1 | $ 4.08 | ||
| 17 | 66122-97L00 Fuel Cock Shaft
SKU: 66122-97L00 Weight: 0.250000 Brand: Price: $ 5.50 |
Fuel Cock Shaft | 1 | $ 5.50 | ||
| 18 | 66142-97L00 Joint Pipe
SKU: 66142-97L00 Weight: 0.060000 Brand: Price: $ 1.64 |
Joint Pipe | 1 | $ 1.64 | ||
| 19 | 66160-97L00 Joint Pipe Clamp Assembly
SKU: 66160-97L00 Weight: 0.060000 Brand: Price: $ 0.00 |
Joint Pipe Clamp Assembly | 1 | $ 0.00 | ||
| 20 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
