Suzuki DF 50AV Parts Listings - 2016
S/N 05004F-610001 to 05004F-61XXXX

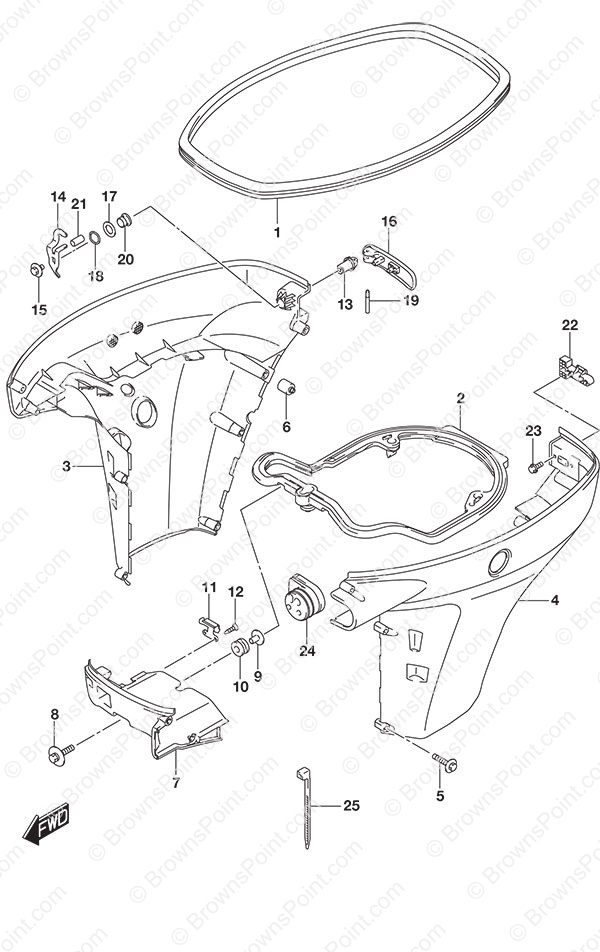

Fig. 410D - Side Cover High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61112-88L10 Side Cover Rubber
SKU: 61112-88L10 Weight: 1.000000 Brand: Price: $ 60.65 |
Side Cover Rubber | 1 | $ 60.65 | ||
| 2 | 61134-88L10 Side Cover Seal
SKU: 61134-88L10 Weight: 1.000000 Brand: Price: $ 54.89 |
Side Cover Seal | 1 | $ 54.89 | ||
| 3 | 61811-88L30-0EP Starboard Side Cover
SKU: 61811-88L30-0EP Weight: 10.000000 Brand: Price: $ 524.73 |
Starboard Side Cover | 1 | $ 524.73 | Black | |
| 4 | 61821-88L30-0EP Port Side Cover
SKU: 61821-88L30-0EP Weight: 10.000000 Brand: Price: $ 524.73 |
Port Side Cover | 1 | $ 524.73 | Black | |
| 5 | 09139-06249 SCREW
SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 9 | $ 1.96 | ||
| 6 | 61151-88L00 Side Cover Cushion
SKU: 61151-88L00 Weight: 0.250000 Brand: Price: $ 3.93 |
Side Cover Cushion | 1 | $ 3.93 | ||
| 7 | 61831-88L10-0EP Front Panel
SKU: 61831-88L10-0EP Weight: 1.000000 Brand: Price: $ 125.43 |
Front Panel | 1 | $ 125.43 | Black | |
| 8 | 09116-08174 Bolt (8x38)
SKU: 09116-08174 Weight: 0.060000 Brand: Price: $ 4.19 |
Bolt (8x38) | 2 | $ 4.19 | ||
| 9 | 09169-08039 Washer (8.5x30x1.5) (NLA)
SKU: 09169-08039 Weight: 0.060000 Brand: Price: $ 4.91 |
Washer (8.5x30x1.5) (NLA) | 2 | $ 4.91 | ||
| 10 | 09320-11023 CUSHION,FRONT P
SKU: 09320-11023 Weight: 0.000000 Brand: Price: $ 2.91 |
CUSHION,FRONT P | 2 | $ 2.91 | ||
| 11 | 61412-88L00 Front Panel Hook
SKU: 61412-88L00 Weight: 0.250000 Brand: Price: $ 16.71 |
Front Panel Hook | 1 | $ 16.71 | ||
| 12 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 2 | $ 1.70 | ||
| 13 | 61632-93J00 Engine Cover Hook Shaft
SKU: 61632-93J00 Weight: 0.125000 Brand: Price: $ 37.52 |
Engine Cover Hook Shaft | 1 | $ 37.52 | ||
| 14 | 61641-88L00 Engine Cover Hook
SKU: 61641-88L00 Weight: 0.250000 Brand: Price: $ 15.57 |
Engine Cover Hook | 1 | $ 15.57 | ||
| 15 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 1 | $ 2.98 | ||
| 16 | 61633-88L00 Rear Hook Lever
SKU: 61633-88L00 Weight: 0.250000 Brand: Price: $ 15.82 |
Rear Hook Lever | 1 | $ 15.82 | ||
| 17 | 09160-13014 Washer (13.2x25x1.0)
SKU: 09160-13014 Weight: 0.060000 Brand: Price: $ 2.99 |
Washer (13.2x25x1.0) | 1 | $ 2.99 | ||
| 18 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 1 | $ 2.04 | ||
| 19 | 09202-04022 Hook Lever Pin
SKU: 09202-04022 Weight: 0.060000 Brand: Price: $ 2.82 |
Hook Lever Pin | 1 | $ 2.82 | ||
| 20 | 09306-13007 Bushing
SKU: 09306-13007 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 1 | $ 2.81 | ||
| 21 | 09352-50901-600 Hose (5x9x600)
SKU: 09352-50901-600 Weight: 0.250000 Brand: Price: $ 8.20 |
Hose (5x9x600) | 1 | $ 8.20 | L:600->20 | |
| 22 | 61673-93J11 Hook Lever Latch
SKU: 61673-93J11 Weight: 0.250000 Brand: Price: $ 14.60 |
Hook Lever Latch | 1 | $ 14.60 | ||
| 23 | 09116-05010 Bolt (5x12)
SKU: 09116-05010 Weight: 0.060000 Brand: Price: $ 2.14 |
Bolt (5x12) | 2 | $ 2.14 | ||
| 24 | 61124-88L11 Remocon Cable Grommet
SKU: 61124-88L11 Weight: 0.500000 Brand: Price: $ 12.61 |
Remocon Cable Grommet | 1 | $ 12.61 | ||
| 25 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
