Suzuki DF 50AV Parts Listings - 2016
S/N 05004F-610001 to 05004F-61XXXX

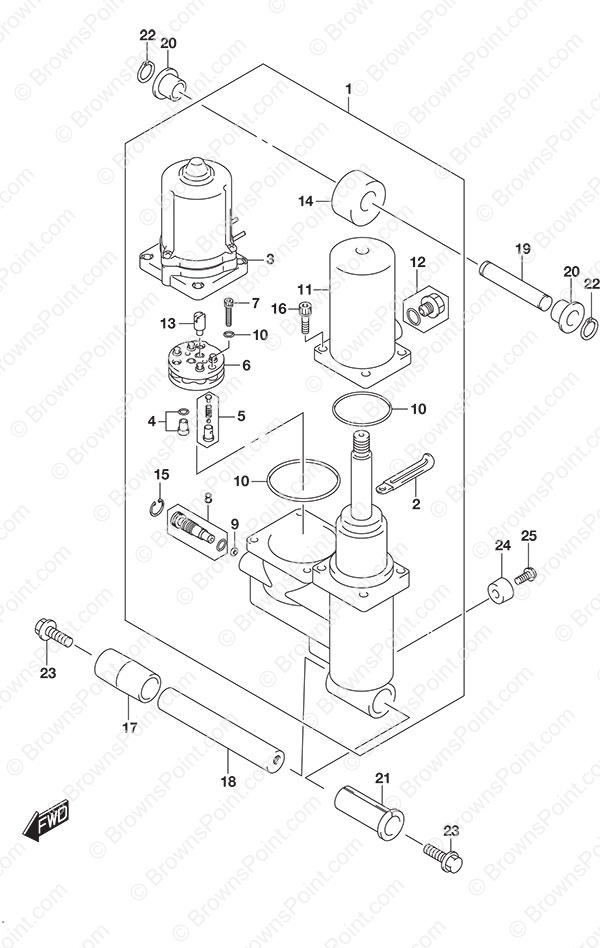

Fig. 337D - Trim Cylinder High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48000-88L20 Power w/Tilt & Trim Assembly
SKU: 48000-88L20 Weight: 10.000000 Brand: Price: $ 1,841.19 |
Power w/Tilt & Trim Assembly | 1 | $ 1,841.19 | ||
| 2 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 3 | 38100-88L12 PTT Motor Assembly
SKU: 38100-88L12 Weight: 5.000000 Brand: Price: $ 580.61 |
PTT Motor Assembly | 1 | $ 580.61 | ||
| 4 | 48320-87J10 Up Pressure Valve
SKU: 48320-87J10 Weight: 0.100000 Brand: Price: $ 40.01 |
Up Pressure Valve | 1 | $ 40.01 | ||
| 5 | 48330-87J20 Down Pressure Valve
SKU: 48330-87J20 Weight: 0.250000 Brand: Price: $ 30.60 |
Down Pressure Valve | 1 | $ 30.60 | ||
| 6 | 48510-97E10 Gear Pump Assembly
SKU: 48510-97E10 Weight: 0.300000 Brand: Price: $ 130.73 |
Gear Pump Assembly | 1 | $ 130.73 | ||
| 7 | 48541-87J20 Bolt (NLA)
SKU: 48541-87J20 Weight: 0.100000 Brand: Price: $ 9.80 |
Bolt (NLA) | 3 | $ 9.80 | ||
| 8 | 48551-88L10 Manual Valve
SKU: 48551-88L10 Weight: 0.250000 Brand: Price: $ 100.73 |
Manual Valve | 1 | $ 100.73 | ||
| 9 | 48553-88L00 Washer Seal
SKU: 48553-88L00 Weight: 0.060000 Brand: Price: $ 15.01 |
Washer Seal | 1 | $ 15.01 | ||
| 10 | 48557-87J10 O-Ring Set
SKU: 48557-87J10 Weight: 0.060000 Brand: Price: $ 12.65 |
O-Ring Set | 1 | $ 12.65 | ||
| 11 | 48571-88L01 Reservoir Tank
SKU: 48571-88L01 Weight: 1.000000 Brand: Price: $ 168.08 |
Reservoir Tank | 1 | $ 168.08 | ||
| 12 | 48572-87L00 Plug
SKU: 48572-87L00 Weight: 0.200000 Brand: Price: $ 21.60 |
Plug | 1 | $ 21.60 | ||
| 13 | 48583-87J10 Drive Joint
SKU: 48583-87J10 Weight: 0.060000 Brand: Price: $ 22.14 |
Drive Joint | 1 | $ 22.14 | ||
| 14 | 48611-88L00 Metal Joint (NLA)
SKU: 48611-88L00 Weight: 0.250000 Brand: Price: $ 166.85 |
Metal Joint (NLA) | 1 | $ 166.85 | ||
| 15 | 48681-87J11 Circlip
SKU: 48681-87J11 Weight: 0.100000 Brand: Price: $ 9.47 |
Circlip | 1 | $ 9.47 | ||
| 16 | 48862-87J20 Reservoir Tank Bolt
SKU: 48862-87J20 Weight: 0.060000 Brand: Price: $ 15.52 |
Reservoir Tank Bolt | 4 | $ 15.52 | ||
| 17 | 47225-88L00 Tilt Cylinder Lower Collar
SKU: 47225-88L00 Weight: 0.250000 Brand: Price: $ 4.34 |
Tilt Cylinder Lower Collar | 1 | $ 4.34 | ||
| 18 | 48121-88L10 Tilt Cylinder Lower Shaft
SKU: 48121-88L10 Weight: 0.250000 Brand: Price: $ 87.13 |
Tilt Cylinder Lower Shaft | 1 | $ 87.13 | ||
| 19 | 48321-89J20 Tilt Cylinder Upper Shaft
SKU: 48321-89J20 Weight: 0.250000 Brand: Price: $ 16.56 |
Tilt Cylinder Upper Shaft | 1 | $ 16.56 | ||
| 20 | 48325-89J10 Tilt Cylinder Upper Bushing
SKU: 48325-89J10 Weight: 0.250000 Brand: Price: $ 3.62 |
Tilt Cylinder Upper Bushing | 2 | $ 3.62 | ||
| 21 | 48326-87J00 Tilt Cylinder Lower Bushing
SKU: 48326-87J00 Weight: 0.125000 Brand: Price: $ 8.84 |
Tilt Cylinder Lower Bushing | 1 | $ 8.84 | ||
| 22 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 | ||
| 23 | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 2 | $ 11.01 | ||
| 24 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 25 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
