Suzuki DF 50A Parts Listings - 2016
S/N 05003F-610001 to 05003F-61XXXX

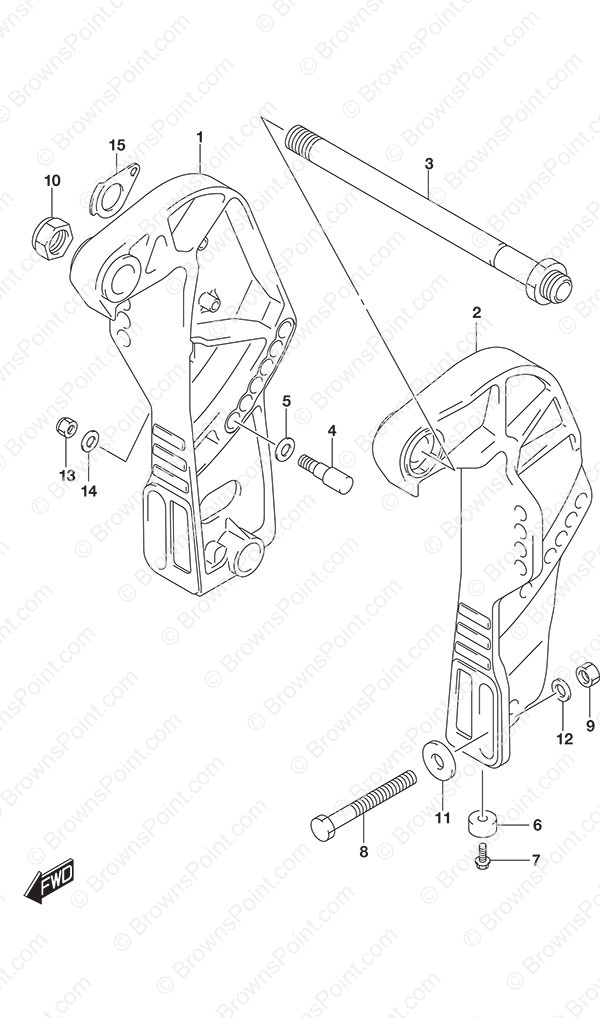

Fig. 335B - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 41111-88L20-0EP Starboard Clamp Bracket
SKU: 41111-88L20-0EP Weight: 10.000000 Brand: Price: $ 0.00 |
Starboard Clamp Bracket | 1 | $ 0.00 | Black | |
| 1-2 | 41111-88L20-Y5S Starboard Clamp Bracket
SKU: 41111-88L20-Y5S Weight: 5.000000 Brand: Price: $ 378.07 |
Starboard Clamp Bracket | 1 | $ 378.07 | White | |
| 2-1 | 41121-88L10-0EP Port Clamp Bracket
SKU: 41121-88L10-0EP Weight: 10.000000 Brand: Price: $ 0.00 |
Port Clamp Bracket | 1 | $ 0.00 | Black | |
| 2-2 | 41121-88L10-Y5S Port Clamp Bracket
SKU: 41121-88L10-Y5S Weight: 10.000000 Brand: Price: $ 374.29 |
Port Clamp Bracket | 1 | $ 374.29 | White | |
| 3 | 41130-87J11 Clamp Bracket Shaft
SKU: 41130-87J11 Weight: 2.000000 Brand: Price: $ 176.27 |
Clamp Bracket Shaft | 1 | $ 176.27 | ||
| 4 | 45421-89J00 Tilt Lock Pin
SKU: 45421-89J00 Weight: 0.100000 Brand: Price: $ 24.77 |
Tilt Lock Pin | 2 | $ 24.77 | ||
| 5 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 2 | $ 1.80 | ||
| 6 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 7 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 8-1 | 09100-12093 Transom Bolt (12x100)
SKU: 09100-12093 Weight: 0.220000 Brand: Price: $ 13.75 |
Transom Bolt (12x100) | 4 | $ 13.75 | ||
| 8-2 | 09100-12091 Transom Bolt (12x115)
SKU: 09100-12091 Weight: 0.250000 Brand: Price: $ 14.20 |
Transom Bolt (12x115) | 1 | $ 14.20 | Optional | |
| 9 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | ||
| 10 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 11 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 12 | 09160-12126 Washer (12.5x22x3)
SKU: 09160-12126 Weight: 0.060000 Brand: Price: $ 3.13 |
Washer (12.5x22x3) | 4 | $ 3.13 | ||
| 13 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 14 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 15 | 41135-93J00 Clamp Bracket Shaft Washer
SKU: 41135-93J00 Weight: 0.060000 Brand: Price: $ 6.66 |
Clamp Bracket Shaft Washer | 1 | $ 6.66 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
