Suzuki DF 140 Parts Listings - 2002 to 2011
S/N 14001F-251001 to 14002F-11XXXX
S/N 14001Z-251001 to 14002Z-11XXXX

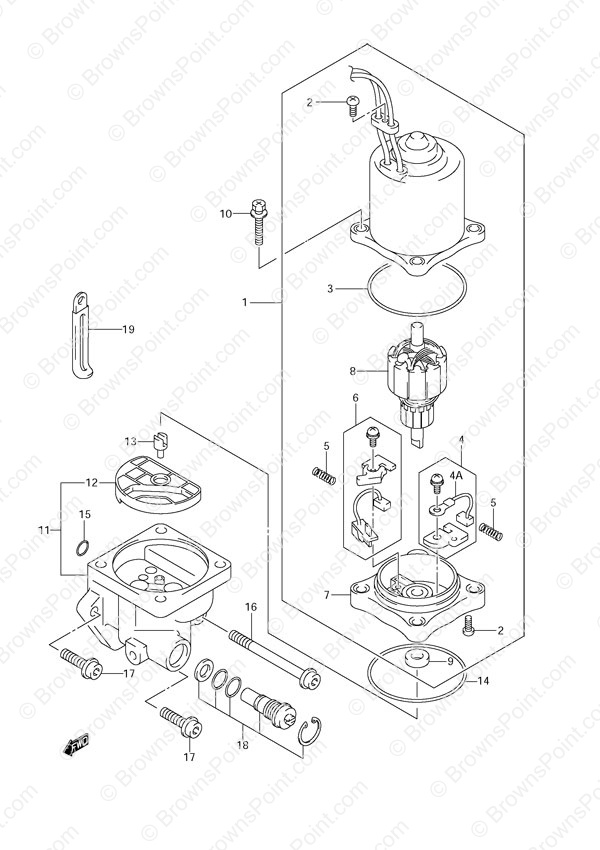

Fig. 38 - PTT Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 38100-92J03 PTT Motor Assembly
SKU: 38100-92J03 Weight: 4.000000 Brand: Price: $ 888.27 |
PTT Motor Assembly | 1 | $ 888.27 | 2002 2003 | |
| 1-2 | 38100-92J14 MOTOR ASSY,PTT
SKU: 38100-92J14 Weight: 0.000000 Brand: Price: $ 486.66 |
MOTOR ASSY,PTT | 1 | $ 486.66 | 2004 Newer | |
| 2 | 31111-94900 Yoke Screw
SKU: 31111-94900 Weight: 0.060000 Brand: Price: $ 4.39 |
Yoke Screw | 3 | $ 4.39 | ||
| 3 | 31123-87D60 O-Ring
SKU: 31123-87D60 Weight: 0.060000 Brand: Price: $ 12.85 |
O-Ring | 1 | $ 12.85 | ||
| 4 | 31133-90J20 Brush Assembly
SKU: 31133-90J20 Weight: 0.000000 Brand: Price: $ 9.64 |
Brush Assembly | 1 | $ 9.64 | ||
| 4A | 31133-94910 Brush
SKU: 31133-94910 Weight: 0.060000 Brand: Price: $ 12.57 |
Brush | 1 | $ 12.57 | ||
| 5 | 31135-94900 Spring
SKU: 31135-94900 Weight: 0.060000 Brand: Price: $ 5.02 |
Spring | 2 | $ 5.02 | ||
| 6 | 31136-90J20 Breaker Assembly
SKU: 31136-90J20 Weight: 0.060000 Brand: Price: $ 57.61 |
Breaker Assembly | 1 | $ 57.61 | ||
| 7 | 31173-94920 Brush Holder Assembly
SKU: 31173-94920 Weight: 1.000000 Brand: Price: $ 339.85 |
Brush Holder Assembly | 1 | $ 339.85 | ||
| 8 | 31311-94900 Armature (NLA)
SKU: 31311-94900 Weight: 5.000000 Brand: Price: $ 311.55 |
Armature (NLA) | 1 | $ 311.55 | ||
| 9 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 23.27 |
Oil Seal | 1 | $ 23.27 | ||
| 10 | 31281-92J10 Through Bolt
SKU: 31281-92J10 Weight: 0.060000 Brand: Price: $ 11.61 |
Through Bolt | 4 | $ 11.61 | ||
| 11 | 48502-92J05 PTT Pump Assembly
SKU: 48502-92J05 Weight: 1.000000 Brand: Price: $ 742.36 |
PTT Pump Assembly | 1 | $ 742.36 | ||
| 12 | 48582-95E01 Filter
SKU: 48582-95E01 Weight: 0.060000 Brand: Price: $ 38.93 |
Filter | 1 | $ 38.93 | ||
| 13 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 14 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 | ||
| 15 | 48588-94900 O-Ring (Pack of 6)
SKU: 48588-94900 Weight: 0.060000 Brand: Price: $ 4.95 |
O-Ring (Pack of 6) | 1 | $ 4.95 | ||
| 16 | 48862-92J20 Pump Bolt No. 1
SKU: 48862-92J20 Weight: 0.100000 Brand: Price: $ 15.52 |
Pump Bolt No. 1 | 1 | $ 15.52 | ||
| 17 | 48862-92J30 Pump Bolt No. 2
SKU: 48862-92J30 Weight: 0.060000 Brand: Price: $ 12.11 |
Pump Bolt No. 2 | 2 | $ 12.11 | ||
| 18 | 48864-92J02 Manual Valve Set
SKU: 48864-92J02 Weight: 0.250000 Brand: Price: $ 120.66 |
Manual Valve Set | 1 | $ 120.66 | ||
| 19 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
