Suzuki DF 50A Parts Listings - 2016
S/N 05003F-610001 to 05003F-61XXXX
S/N 05004F-610001 to 05004F-61XXXX

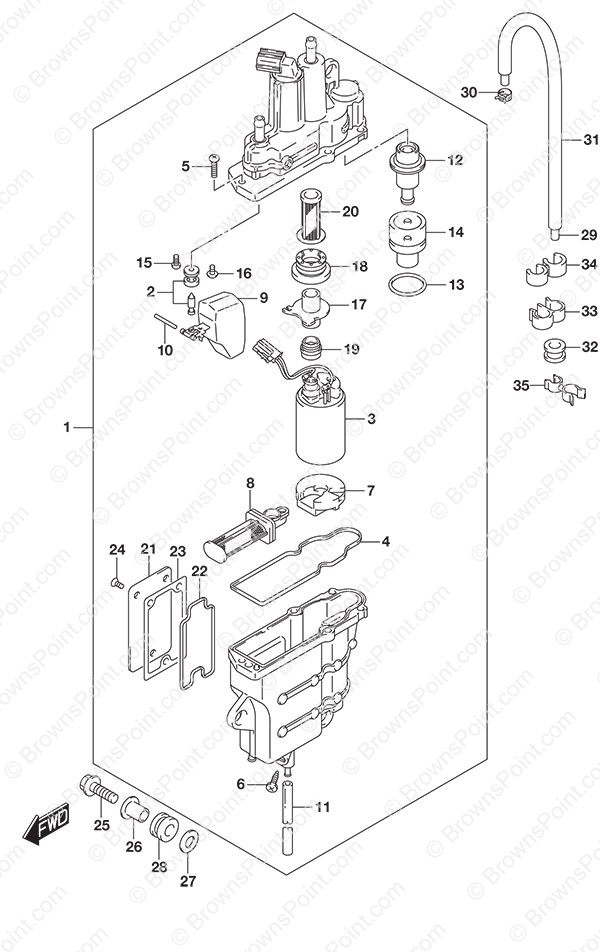

Fig. 143 - Fuel Vapor Separator

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 15600-88L14 Fuel Vapor Separator Assembly 1 $ 735.75
2 13370-88L10 Needle Valve Assembly 1 $ 40.75
3 15200-88L00 Fuel Pump Assembly 1 $ 438.00
4 15626-88L01 Seal 1 $ 10.39
5 15628-99E00 Screw (L:15) 5 $ 2.42
6 15629-99E10 Drain Screw 1 $ 5.49
7 15641-88L00 Spacer 1 $ 23.89
8 15642-88L00 Fuel Filter 1 $ 23.89
9 15650-99E00 Float 1 $ 68.42
10 15654-88L00 Pin 1 $ 2.54
11 15683-87J00 Drain Hose (L:120) 1 $ 3.37
12 15760-88L00 Fuel Pressure Regulator 1 $ 180.10
13 15644-88L00 O-Ring 1 $ 4.31
14 15645-88L00 Regulator Holder 1 $ 5.55
15 02112-0408A SCREW 1 $ 1.11
16 02142-0408B SCREW 1 $ 1.72
17 15643-88L10 Joint 1 $ 4.33
18 15641-88L31 Bushing 1 $ 42.80
19 15641-88L51 Bushing 1 $ 39.53
20 15642-88L10 Fuel Filter 1 $ 17.73
21 15612-88L00 Vapor Separator Cover 1 $ 14.42
22 15613-88L00 O-Ring 1 $ 4.70
23 15613-92J00 Gasket 1 $ 17.60
24 15614-88L00 Screw 3 $ 4.61
25 01550-06307 BOLT 3 $ 2.74
26 09169-06075 Washer 3 $ 3.19
27 09160-06084 Washer (6.5x18x1.6) 3 $ 1.78
28 09320-09059 Cushion 3 $ 3.31
29 09352-50005-00B Hose (5x8.2x2000) 1 $ 14.18
L:2000->770
30 09401-08412 Clip 1 $ 2.09
31 18498-88L10 Evap Hose Protector (L:730) 1 $ 0.00
32 09320-08517 CUSHION,CABLE H 1 $ 4.47
33 09408-00043 Clamp 1 $ 0.00
34 09408-00121 Clamp (NLA) 1 $ 1.85

Not Available

35 09408-00145 Clip 1 $ 0.00

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
