Suzuki DF 50A Parts Listings - 2016
S/N 05003F-610001 to 05003F-61XXXX
S/N 05004F-610001 to 05004F-61XXXX

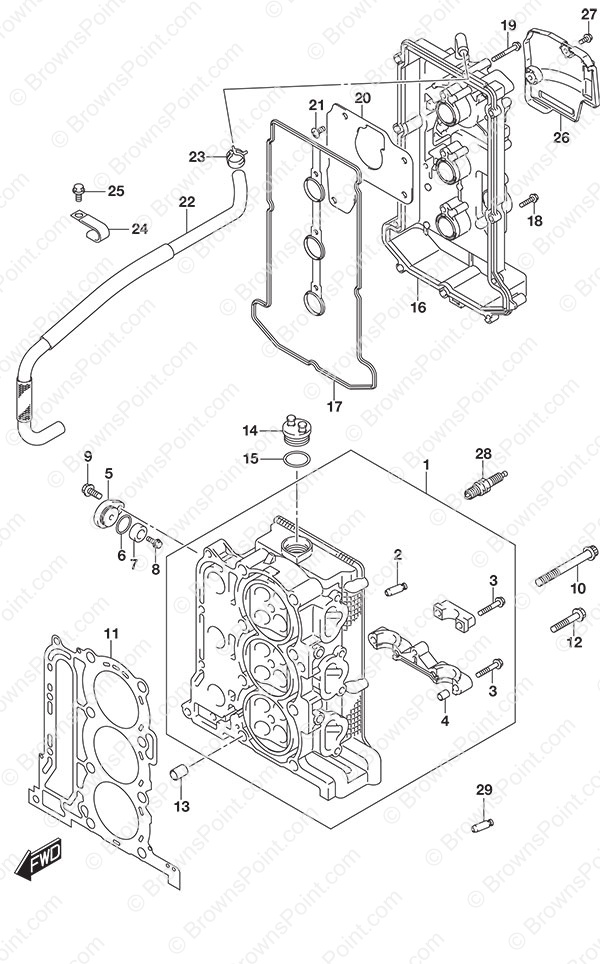

Fig. 111 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11100-88L20 HEAD ASSY,CYLIN
SKU: 11100-88L20 Weight: 0.000000 Brand: Price: $ 1,568.97 |
HEAD ASSY,CYLIN | 1 | $ 1,568.97 | Requires Ref# 30 | |
| 2 | 11115-73G01-001 Valve Guide
SKU: 11115-73G01-001 Weight: 0.125000 Brand: Price: $ 27.40 |
Valve Guide | 12 | $ 27.40 | ||
| 3 | 09103-06266 Bolt (6x40)
SKU: 09103-06266 Weight: 0.250000 Brand: Price: $ 2.21 |
Bolt (6x40) | 17 | $ 2.21 | ||
| 4 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 14 | $ 1.78 | ||
| 5 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 2 | $ 16.29 | ||
| 6 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 2 | $ 2.38 | ||
| 7-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 7-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only | |
| 8 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 9 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 10 | 11119-87J00 Cylinder Head Bolt
SKU: 11119-87J00 Weight: 0.140000 Brand: Price: $ 7.49 |
Cylinder Head Bolt | 8 | $ 7.49 | ||
| 11 | 11141-88L00 Cylinder Head Gasket
SKU: 11141-88L00 Weight: 0.320000 Brand: Price: $ 70.74 |
Cylinder Head Gasket | 1 | $ 70.74 | ||
| 12 | 01550-08457 BOLT
SKU: 01550-08457 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT | 4 | $ 3.48 | ||
| 13 | 04211-13189 PIN
SKU: 04211-13189 Weight: 0.060000 Brand: Price: $ 2.21 |
PIN | 2 | $ 2.21 | ||
| 14 | 11382-99E00 Oil Filler Cap
SKU: 11382-99E00 Weight: 0.060000 Brand: Price: $ 7.28 |
Oil Filler Cap | 1 | $ 7.28 | ||
| 15 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 16 | 11170-88L10 Cylinder Head Cover
SKU: 11170-88L10 Weight: 1.000000 Brand: Price: $ 310.34 |
Cylinder Head Cover | 1 | $ 310.34 | ||
| 17 | 11189-88L00 Cylinder Head Cover Gasket
SKU: 11189-88L00 Weight: 0.080000 Brand: Price: $ 24.69 |
Cylinder Head Cover Gasket | 1 | $ 24.69 | ||
| 18 | 01547-06257 BOLT 6X25
SKU: 01547-06257 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6X25 | 9 | $ 2.04 | ||
| 19 | 01547-06457 BOLT 6X45
SKU: 01547-06457 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT 6X45 | 3 | $ 2.33 | ||
| 20 | 11173-88L00 Breather Plate (NLA)
SKU: 11173-88L00 Weight: 1.000000 Brand: Price: $ 8.69 |
Breather Plate (NLA) | 1 | $ 8.69 | ||
| 21 | 02142-0612A SCREW
SKU: 02142-0612A Weight: 0.100000 Brand: Price: $ 1.38 |
SCREW | 4 | $ 1.38 | ||
| 22 | 11174-88L00 Breather Hose
SKU: 11174-88L00 Weight: 0.250000 Brand: Price: $ 23.15 |
Breather Hose | 1 | $ 23.15 | ||
| 23 | 09401-15414 Clip
SKU: 09401-15414 Weight: 0.062500 Brand: Price: $ 2.34 |
Clip | 2 | $ 2.34 | ||
| 24 | 09403-17303 Clamp (NLA)
SKU: 09403-17303 Weight: 0.100000 Brand: Price: $ 2.29 |
Clamp (NLA) | 2 | $ 2.29 | ||
| 25 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 26 | 11194-88L10 Fuel Hose Guard
SKU: 11194-88L10 Weight: 0.250000 Brand: Price: $ 18.49 |
Fuel Hose Guard | 1 | $ 18.49 | ||
| 27 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 28 | 09482-00446 NGK DCPR6E Spark Plug
SKU: 09482-00446 Weight: 0.187500 Brand: Price: $ 3.57 |
NGK DCPR6E Spark Plug | 3 | $ 3.57 | ||
| 29 | 11115-73G01-001 Valve Guide
SKU: 11115-73G01-001 Weight: 0.125000 Brand: Price: $ 27.40 |
Valve Guide | 4 | $ 27.40 | Optional | |
| 30 | 11382-93J00 Oil Filler Cap
SKU: 11382-93J00 Weight: 0.060000 Brand: Price: $ 5.26 |
Oil Filler Cap | 1 | $ 5.26 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
