Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

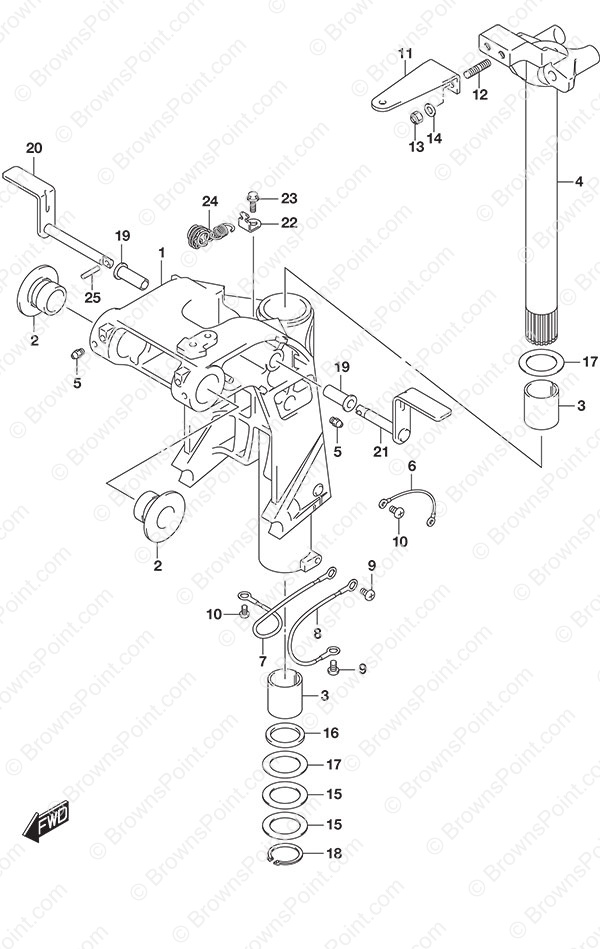

Fig. 336 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 43111-88L21-0EP Swivel Bracket (L)
SKU: 43111-88L21-0EP Weight: 5.000000 Brand: Price: $ 683.49 |
Swivel Bracket (L) | 1 | $ 683.49 | Black | |
| 1-2 | 43111-88L21-Y5S Swivel Bracket (L)
SKU: 43111-88L21-Y5S Weight: 5.000000 Brand: Price: $ 707.07 |
Swivel Bracket (L) | 1 | $ 707.07 | White | |
| 2 | 43211-87J00 Swivel Bracket Bushing
SKU: 43211-87J00 Weight: 0.100000 Brand: Price: $ 9.18 |
Swivel Bracket Bushing | 2 | $ 9.18 | ||
| 3 | 43711-89J10 Steering Bushing
SKU: 43711-89J10 Weight: 0.100000 Brand: Price: $ 14.81 |
Steering Bushing | 2 | $ 14.81 | ||
| 4-1 | 43750-88L22-0EP Steering Bracket (L)
SKU: 43750-88L22-0EP Weight: 5.000000 Brand: Price: $ 407.49 |
Steering Bracket (L) | 1 | $ 407.49 | Black | |
| 4-2 | 43750-88L21-Y5S Steering Bracket (L)
SKU: 43750-88L21-Y5S Weight: 5.000000 Brand: Price: $ 0.00 |
Steering Bracket (L) | 1 | $ 0.00 | White | |
| 5 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 6 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | ||
| 7 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | ||
| 8 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | ||
| 9 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 | ||
| 10 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 3 | $ 1.88 | ||
| 11 | 43755-88L00 Steering Bracket Attachment
SKU: 43755-88L00 Weight: 0.500000 Brand: Price: $ 45.13 |
Steering Bracket Attachment | 1 | $ 45.13 | ||
| 12 | 09108-10161 Stud Bolt (10x20)
SKU: 09108-10161 Weight: 0.250000 Brand: Price: $ 9.26 |
Stud Bolt (10x20) | 2 | $ 9.26 | ||
| 13 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 14 | 09160-10141 Washer (10.5x19x2)
SKU: 09160-10141 Weight: 0.060000 Brand: Price: $ 3.41 |
Washer (10.5x19x2) | 2 | $ 3.41 | ||
| 15 | 09160-39003 Washer (39.5x58x0.3)
SKU: 09160-39003 Weight: 0.250000 Brand: Price: $ 3.71 |
Washer (39.5x58x0.3) | 2 | $ 3.71 | ||
| 16 | 09282-39001 Oil Seal (38x51x5)
SKU: 09282-39001 Weight: 0.060000 Brand: Price: $ 6.18 |
Oil Seal (38x51x5) | 1 | $ 6.18 | ||
| 17 | 09160-39002 Washer (39.5x58x1)
SKU: 09160-39002 Weight: 0.250000 Brand: Price: $ 3.71 |
Washer (39.5x58x1) | 2 | $ 3.71 | ||
| 18 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 19 | 41226-97E00 Bushing
SKU: 41226-97E00 Weight: 0.060000 Brand: Price: $ 5.11 |
Bushing | 2 | $ 5.11 | ||
| 20 | 41270-89J10 Stbd Tilt Lock Lever
SKU: 41270-89J10 Weight: 0.350000 Brand: Price: $ 36.22 |
Stbd Tilt Lock Lever | 1 | $ 36.22 | ||
| 21 | 41280-89J04 Port Tilt Lock Lever
SKU: 41280-89J04 Weight: 0.500000 Brand: Price: $ 41.58 |
Port Tilt Lock Lever | 1 | $ 41.58 | ||
| 22 | 45731-96312 Spring Bracket
SKU: 45731-96312 Weight: 0.100000 Brand: Price: $ 5.71 |
Spring Bracket | 1 | $ 5.71 | ||
| 23 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 1 | $ 1.78 | ||
| 24 | 41230-97E10 Tilt Lock Spring
SKU: 41230-97E10 Weight: 0.125000 Brand: Price: $ 24.07 |
Tilt Lock Spring | 1 | $ 24.07 | ||
| 25 | 09205-03012 Spring Pin (3x16)
SKU: 09205-03012 Weight: 0.060000 Brand: Price: $ 1.99 |
Spring Pin (3x16) | 1 | $ 1.99 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
