Suzuki DF 40A Parts Listings - 2016
S/N 04003F-610001 to 04003F-61XXXX

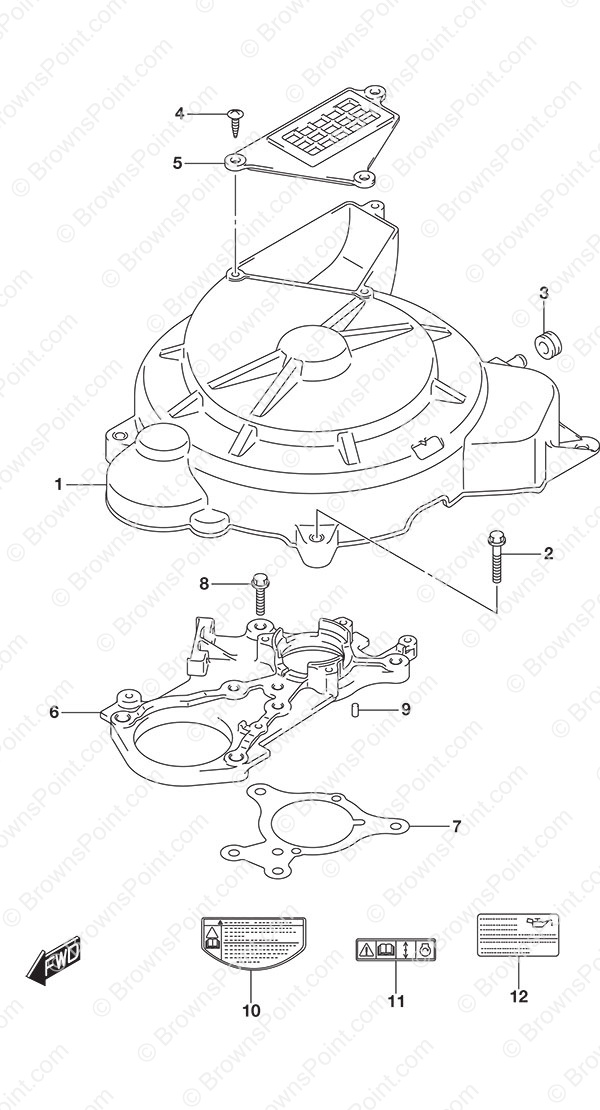

Fig. 136 - Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11510-88L00 Ring Gear Cover
SKU: 11510-88L00 Weight: 4.000000 Brand: Price: $ 63.84 |
Ring Gear Cover | 1 | $ 63.84 | ||
| 2 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 3 | $ 2.74 | ||
| 3 | 09320-09501 Cushion
SKU: 09320-09501 Weight: 0.250000 Brand: Price: $ 2.04 |
Cushion | 1 | $ 2.04 | ||
| 4 | 03542-06209 SCREW
SKU: 03542-06209 Weight: 0.100000 Brand: Price: $ 2.24 |
SCREW | 3 | $ 2.24 | ||
| 5 | 11514-88L00 Ring Gear Cover Plate
SKU: 11514-88L00 Weight: 0.250000 Brand: Price: $ 11.54 |
Ring Gear Cover Plate | 1 | $ 11.54 | ||
| 6 | 11411-88L00 Upper Oil Seal Housing (NLA)
SKU: 11411-88L00 Weight: 0.250000 Brand: Price: $ 127.52 |
Upper Oil Seal Housing (NLA) | 1 | $ 127.52 | ||
| 7 | 11413-88L00 Upper Oil Seal Gasket
SKU: 11413-88L00 Weight: 0.250000 Brand: Price: $ 8.40 |
Upper Oil Seal Gasket | 1 | $ 8.40 | ||
| 8 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 5 | $ 2.33 | ||
| 9 | 04221-04089 PIN 4X8
SKU: 04221-04089 Weight: 0.060000 Brand: Price: $ 1.11 |
PIN 4X8 | 2 | $ 1.11 | ||
| 10 | 61472-88L00 Magneto Cover Label
SKU: 61472-88L00 Weight: 0.125000 Brand: Price: $ 3.79 |
Magneto Cover Label | 1 | $ 3.79 | ||
| 11 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 12 | 61494-88L01 Oil Label & Clearance
SKU: 61494-88L01 Weight: 0.200000 Brand: Price: $ 5.50 |
Oil Label & Clearance | 1 | $ 5.50 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
