Suzuki DF 9.9A Parts Listings - 2016
S/N 00994F-610001 to 00994F-61XXXX

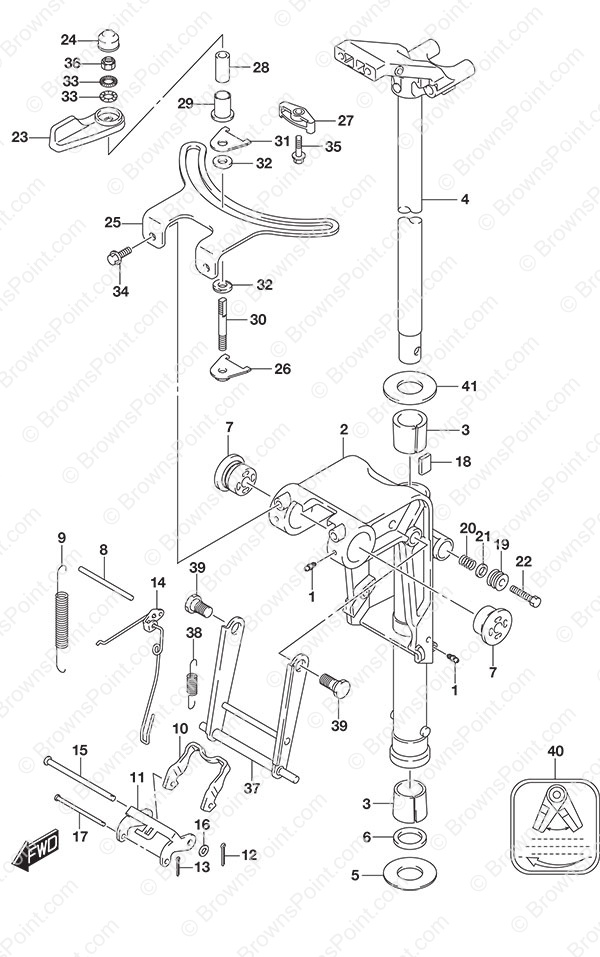

Fig. 336C - Swivel Bracket Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 2-1 | 43111-99J40-0EP Swivel Bracket (S)
SKU: 43111-99J40-0EP Weight: 5.000000 Brand: Price: $ 0.00 |
Swivel Bracket (S) | 1 | $ 0.00 | w/Transom (S) | |
| 2-2 | 43111-99J50-0EP Swivel Bracket (L)
SKU: 43111-99J50-0EP Weight: 5.000000 Brand: Price: $ 0.00 |
Swivel Bracket (L) | 1 | $ 0.00 | w/Transom (L) | |
| 3 | 43711-99J00 Steering Bushing
SKU: 43711-99J00 Weight: 0.250000 Brand: Price: $ 14.52 |
Steering Bushing | 2 | $ 14.52 | ||
| 4-1 | 43750-99J60-0EP Steering Bracket (S)
SKU: 43750-99J60-0EP Weight: 5.000000 Brand: Price: $ 118.60 |
Steering Bracket (S) | 1 | $ 118.60 | w/Transom (S) | |
| 4-2 | 43750-99J70-0EP Steering Bracket (L)
SKU: 43750-99J70-0EP Weight: 5.000000 Brand: Price: $ 132.94 |
Steering Bracket (L) | 1 | $ 132.94 | w/Transom (L) | |
| 5 | 09160-27012 Washer (27.5x47x1)
SKU: 09160-27012 Weight: 0.250000 Brand: Price: $ 3.81 |
Washer (27.5x47x1) | 1 | $ 3.81 | ||
| 6 | 09282-27002 Oil Seal (26x39x5)
SKU: 09282-27002 Weight: 0.250000 Brand: Price: $ 14.52 |
Oil Seal (26x39x5) | 1 | $ 14.52 | ||
| 7 | 43211-99J00 Swivel Bracket Bushing
SKU: 43211-99J00 Weight: 0.250000 Brand: Price: $ 14.39 |
Swivel Bracket Bushing | 2 | $ 14.39 | ||
| 8 | 41225-89L00 Release Arm Pin
SKU: 41225-89L00 Weight: 0.250000 Brand: Price: $ 6.76 |
Release Arm Pin | 1 | $ 6.76 | ||
| 9 | 45212-95L00 Reverse Lock Arm Spring
SKU: 45212-95L00 Weight: 0.200000 Brand: Price: $ 0.00 |
Reverse Lock Arm Spring | 2 | $ 0.00 | ||
| 10 | 45231-89L00 Reverse Lock Arm
SKU: 45231-89L00 Weight: 0.250000 Brand: Price: $ 25.64 |
Reverse Lock Arm | 1 | $ 25.64 | ||
| 11 | 45241-89L00 Reverse Lock Arm Link
SKU: 45241-89L00 Weight: 0.250000 Brand: Price: $ 49.81 |
Reverse Lock Arm Link | 1 | $ 49.81 | ||
| 12 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 13 | 45247-99J00 Reverse Lock Arm Cotter Pin
SKU: 45247-99J00 Weight: 0.250000 Brand: Price: $ 2.53 |
Reverse Lock Arm Cotter Pin | 1 | $ 2.53 | ||
| 14 | 45250-89L03 Release Link
SKU: 45250-89L03 Weight: 0.250000 Brand: Price: $ 6.12 |
Release Link | 1 | $ 6.12 | ||
| 15 | 09200-06061 Pin
SKU: 09200-06061 Weight: 0.060000 Brand: Price: $ 8.40 |
Pin | 1 | $ 8.40 | ||
| 16 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 17 | 09200-05014 Pin
SKU: 09200-05014 Weight: 0.100000 Brand: Price: $ 3.00 |
Pin | 1 | $ 3.00 | ||
| 18 | 43411-939L0 Steering Adjuster Plate
SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
| 19 | 43412-93900 Steering Adjuster Cover
SKU: 43412-93900 Weight: 0.100000 Brand: Price: $ 3.76 |
Steering Adjuster Cover | 1 | $ 3.76 | ||
| 20 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
| 21 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 22 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 23 | 43410-99J00 Steering Adjust Lever (NLA)
SKU: 43410-99J00 Weight: 0.250000 Brand: Price: $ 46.00 |
Steering Adjust Lever (NLA) | 1 | $ 46.00 | ||
| 24 | 43412-99J00 Steering Adjust Cover
SKU: 43412-99J00 Weight: 0.250000 Brand: Price: $ 10.63 |
Steering Adjust Cover | 1 | $ 10.63 | ||
| 25 | 43415-99J00 Steering Adjust Plate
SKU: 43415-99J00 Weight: 0.250000 Brand: Price: $ 150.49 |
Steering Adjust Plate | 1 | $ 150.49 | ||
| 26 | 43420-99J10 Adjust Friction Plate (NLA)
SKU: 43420-99J10 Weight: 0.250000 Brand: Price: $ 22.76 |
Adjust Friction Plate (NLA) | 1 | $ 22.76 | ||
| 27 | 43424-99J00 Adjust Nut Holder (NLA)
SKU: 43424-99J00 Weight: 0.250000 Brand: Price: $ 19.69 |
Adjust Nut Holder (NLA) | 1 | $ 19.69 | ||
| 28 | 43427-99J00 Adjust Nut Spacer (NLA)
SKU: 43427-99J00 Weight: 0.250000 Brand: Price: $ 19.69 |
Adjust Nut Spacer (NLA) | 1 | $ 19.69 | ||
| 29 | 43428-99J00 Adjust Nut Bushing (NLA)
SKU: 43428-99J00 Weight: 0.250000 Brand: Price: $ 10.43 |
Adjust Nut Bushing (NLA) | 1 | $ 10.43 | ||
| 30 | 43512-99J00 Adjust Thread Shaft (NLA)
SKU: 43512-99J00 Weight: 0.250000 Brand: Price: $ 24.65 |
Adjust Thread Shaft (NLA) | 1 | $ 24.65 | ||
| 31 | 43514-94J00 Steering Adjuster Plate
SKU: 43514-94J00 Weight: 0.060000 Brand: Price: $ 6.18 |
Steering Adjuster Plate | 1 | $ 6.18 | ||
| 32 | 43514-99J00 Friction Plate Washer
SKU: 43514-99J00 Weight: 0.250000 Brand: Price: $ 3.71 |
Friction Plate Washer | 2 | $ 3.71 | ||
| 33 | 43516-89J00 Steering Adjuster Washer
SKU: 43516-89J00 Weight: 0.100000 Brand: Price: $ 15.32 |
Steering Adjuster Washer | 2 | $ 15.32 | ||
| 34 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 2 | $ 2.60 | ||
| 35 | 09116-06229 Bolt (6x25)
SKU: 09116-06229 Weight: 0.250000 Brand: Price: $ 2.38 |
Bolt (6x25) | 1 | $ 2.38 | ||
| 36 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 1 | $ 5.21 | ||
| 37 | 45710-99JL1 Shallow Water Drive Assembly
SKU: 45710-99JL1 Weight: 0.500000 Brand: Price: $ 38.44 |
Shallow Water Drive Assembly | 1 | $ 38.44 | ||
| 38 | 45722-94J11 Shallow Water Drive Spring
SKU: 45722-94J11 Weight: 0.060000 Brand: Price: $ 20.04 |
Shallow Water Drive Spring | 1 | $ 20.04 | ||
| 39 | 09111-10067 Bolt (10x20.4)
SKU: 09111-10067 Weight: 0.060000 Brand: Price: $ 6.13 |
Bolt (10x20.4) | 2 | $ 6.13 | ||
| 40 | 45269-99J00 Steering Adjust Mark (NLA)
SKU: 45269-99J00 Weight: 0.250000 Brand: Price: $ 4.16 |
Steering Adjust Mark (NLA) | 1 | $ 4.16 | ||
| 41 | 09160-27012 Washer (27.5x47x1)
SKU: 09160-27012 Weight: 0.250000 Brand: Price: $ 3.81 |
Washer (27.5x47x1) | 1 | $ 3.81 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
